Stainless Steel Deep Groove Ball Bearings W 619/2 X-2Z

Stainless Steel Deep Groove Ball Bearings W 619/2 X-2Z

The W 619/2 X-2Z is a compact stainless steel deep groove ball bearing, measuring just 2mm by 6mm by 2.5mm. It handles radial loads up to 43 lbf and spins smoothly at speeds up to 90,000 RPM.

Its shielded design keeps out dust and dirt, while the all-stainless steel construction resists corrosion. The bearing comes pre-lubricated with grease for easy use.

This model is interchangeable with SKF bearings, making it a handy replacement option. Ideal for small devices like precision instruments or miniature motors where space is limited.

Weighing only 0.000307kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it works in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 619/2 X-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 2 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 6 mm
  • Outer Dia Tolerance -0.008mm to 0
  • Width 2.5 mm
  • Width Tolerance -0.04mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 43 lbf
  • Static Radial Load 11 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 90000 rpm
  • Weight 0.000307 kg

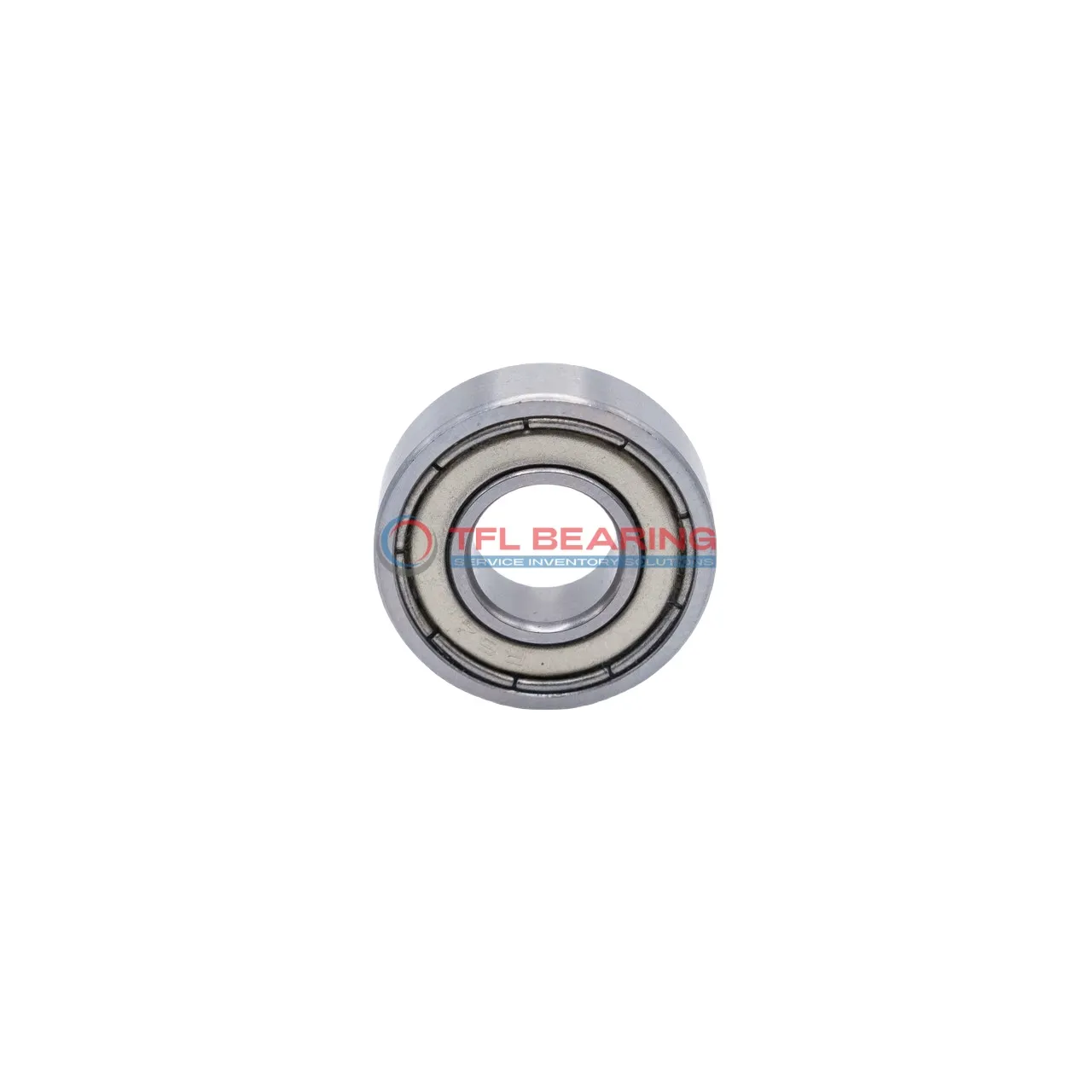

Stainless Steel Deep Groove Ball Bearings W 619/2 X-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 619/2 X-2Z Bearing for Precision Tasks?

W 619/2 X-2Z Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance for precision applications.
Its compact size of 2 mm×6 mm×2.5 mm makes it ideal for small, high-speed devices.
The shielded design protects against contaminants while maintaining smooth operation at speeds up to 90,000 rpm.
With a dynamic radial load capacity of 43 lbf, it ensures reliable performance in delicate machinery.

Application

Practical Applications of W 619/2 X-2Z Bearing
W 619/2 X-2Z Bearing is commonly used in small electric motors, such as those found in cooling fans or miniature pumps, due to its compact size and reliable performance. The stainless steel construction ensures it can handle moisture and mild chemicals, making it suitable for various environments.

How Does W 619/2 X-2Z Bearing Improve Performance?
In medical devices like dental tools or lab equipment, W 619/2 X-2Z Bearing offers smooth rotation and low noise, which is essential for precision work. Its shielded design helps keep contaminants out, extending the lifespan of sensitive instruments.

Built for Heavy-Duty Use: W 619/2 X-2Z Bearing
Despite its small size, W 619/2 X-2Z Bearing can handle high-speed applications, such as in precision robotics or 3D printers. The grease lubrication ensures consistent performance even during prolonged use.

Automotive vs Aerospace: Applications of W 619/2 X-2Z Bearing
In automotive applications, W 619/2 X-2Z Bearing is often found in dashboard instruments or small actuators. For aerospace, its lightweight and durability make it a good fit for control systems or sensors.

Where Is W 619/2 X-2Z Bearing Used?
You’ll often spot W 619/2 X-2Z Bearing in consumer electronics like handheld gadgets or small appliances, where space is limited but reliability is key. Its metric sizing makes it easy to integrate into various designs.
