Stainless Steel Deep Groove Ball Bearings W 61810

Stainless Steel Deep Groove Ball Bearings W 61810

The W 61810 is a stainless steel deep groove ball bearing with a 50mm bore and 65mm outer diameter, designed for radial loads. It handles dynamic loads up to 1140 lbf and spins smoothly at speeds up to 13,000 RPM.

Its open design allows for easy lubrication, while the all-stainless construction resists corrosion. The bearing operates in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like food processing or marine equipment where corrosion resistance is key.

Weighing just 0.047kg, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61810
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 65 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1140 lbf
  • Static Radial Load 1236 lbf
  • Temperature Range -30° to 120 °C
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 0.047 kg

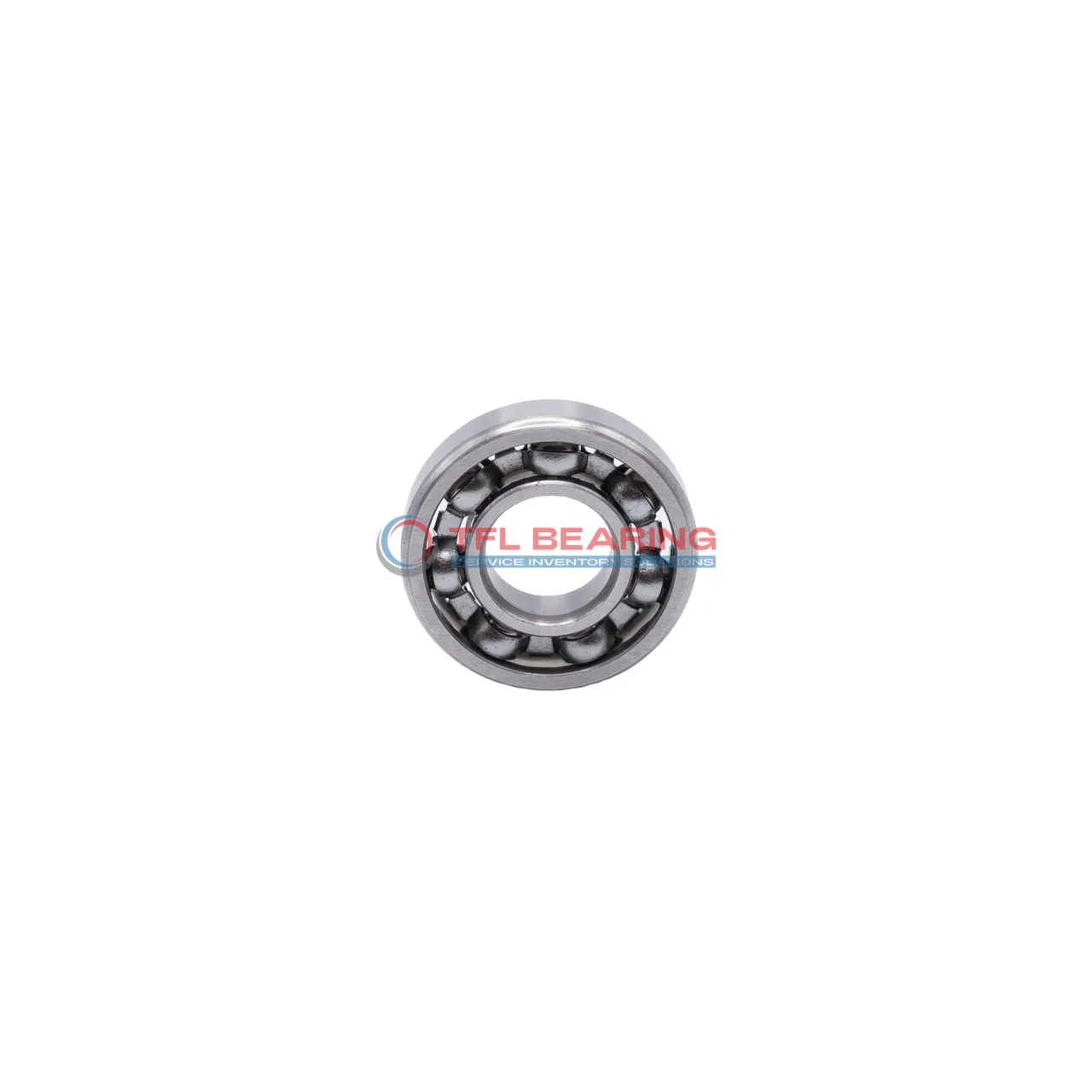

Stainless Steel Deep Groove Ball Bearings W 61810 dimension drawing
Download DWG Download PDF

Features

How Does W 61810 Bearing Reduce Friction?

W 61810 Bearing features a stainless steel construction, ensuring smooth operation with minimal friction.

The single-row deep groove design enhances radial load capacity, making it suitable for various applications.

With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed environments.

Its open seal type allows for easy maintenance while maintaining efficiency.

Application

Common Applications of W 61810 Bearing
W 61810 Bearing is widely used in industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The single-row design ensures smooth radial load handling for consistent performance.

In automotive applications, W 61810 Bearing fits well in electric motors and small gearboxes, thanks to its compact 7mm width. The open seal type allows for easy lubrication, extending its lifespan in high-speed scenarios.

For medical devices, W 61810 Bearing’s stainless steel materials make it suitable for sterilisation-heavy environments like surgical tools. Its P0 tolerance class guarantees precision in critical operations.

Automation systems benefit from W 61810 Bearing in robotic joints, where low friction and high-speed capability are key. The CN radial clearance provides just the right balance for smooth movement.

In household appliances like washing machines, W 61810 Bearing handles moderate loads quietly and efficiently. Its metric sizing ensures compatibility with European and Asian appliance designs.
