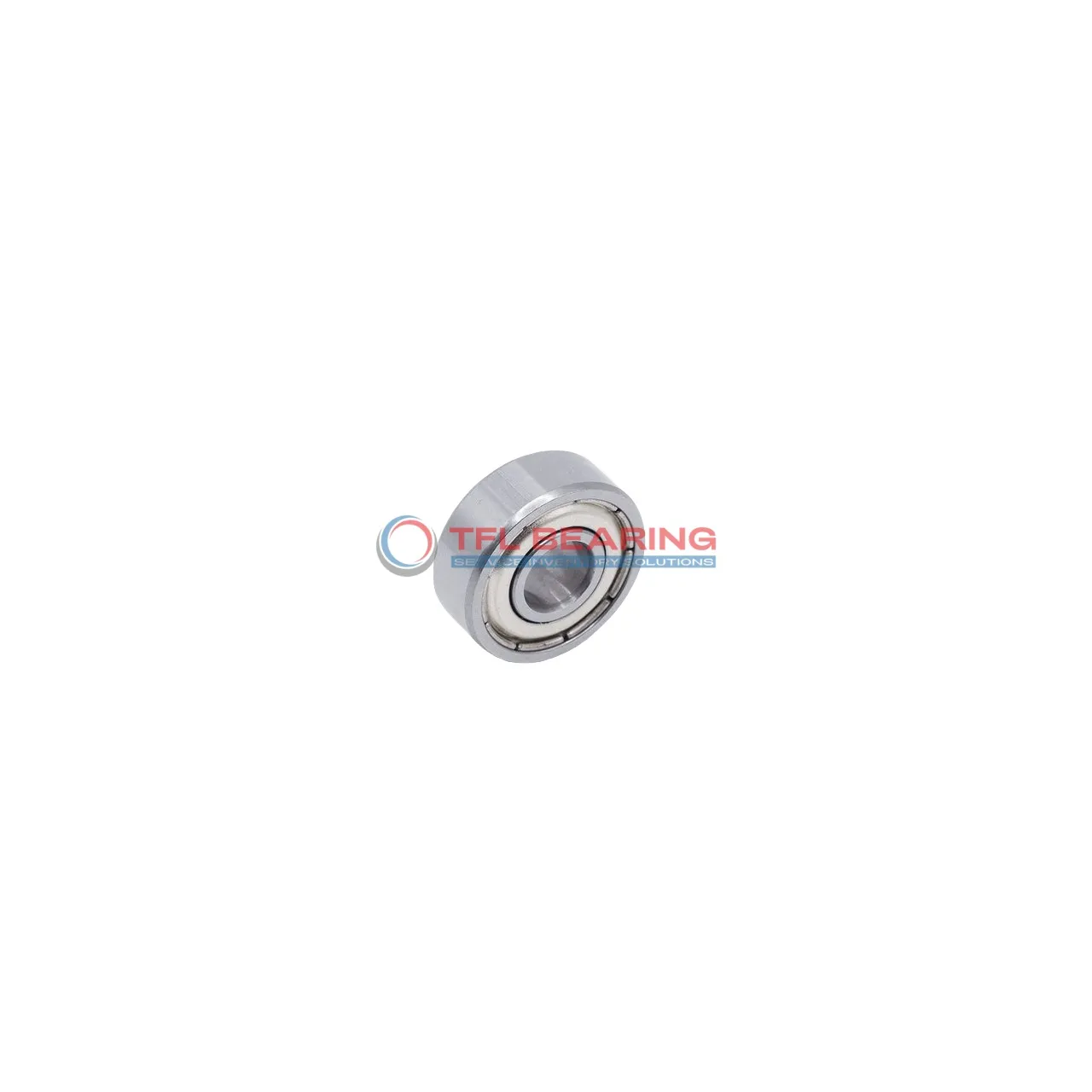

Stainless Steel Deep Groove Ball Bearings W 61809-2Z

Stainless Steel Deep Groove Ball Bearings W 61809-2Z

The W 61809-2Z is a compact stainless steel deep groove ball bearing, measuring 45mm by 58mm by 7mm. It handles radial loads up to 1111 lbf and spins smoothly at speeds up to 12000 RPM.

Shielded on both sides, it keeps dirt out while retaining grease for low-maintenance use. The all-stainless construction resists corrosion, making it suitable for damp or harsh environments.

With a temperature range of -30°C to 120°C, it works well in varied conditions. Its lightweight design (0.036kg) is ideal for space-constrained applications.

This bearing is interchangeable with SKF models, offering a reliable option for replacements in machinery or small electric motors.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61809-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 58 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1111 lbf
  • Static Radial Load 1124 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 12000 rpm
  • Weight 0.036 kg
Stainless Steel Deep Groove Ball Bearings W 61809-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 61809-2Z Bearing for Precision Tasks?

W 61809-2Z Bearing is crafted from stainless steel, offering excellent resistance to corrosion and wear.
Its shielded design helps keep contaminants out, ensuring smooth operation in various conditions.

With a dynamic radial load capacity of 1111 lbf, it handles demanding radial applications effectively.
The bearing’s compact size (45 mm×58 mm×7 mm) makes it suitable for space-constrained installations.

W 61809-2Z Bearing can operate at speeds up to 12,000 rpm, balancing performance and durability.
Its stainless steel construction also makes it ideal for environments where hygiene is a priority.

Application

Industrial Uses of W 61809-2Z Bearing
W 61809-2Z Bearing is commonly used in industrial machinery, especially in applications where corrosion resistance is key, such as food processing equipment. Its shielded design helps keep contaminants out, ensuring longer service life.

Where Is W 61809-2Z Bearing Used?
In automotive applications, W 61809-2Z Bearing fits well in electric motors and pumps due to its stainless steel construction. The metric sizing makes it versatile for various vehicle models.

Perfect Fit for Automation: W 61809-2Z Bearing
For automation systems like conveyor belts, W 61809-2Z Bearing offers reliable performance with its grease lubrication. Its compact size is ideal for space-constrained setups.

Medical vs Industrial: Where W 61809-2Z Bearing Excels
In medical devices, W 61809-2Z Bearing’s stainless steel material ensures hygiene and durability. It’s also a solid choice for industrial tools exposed to wet or corrosive environments.

Consumer Electronics and W 61809-2Z Bearing
W 61809-2Z Bearing works well in household appliances like fans, where quiet operation and longevity are important. The shielded seals help reduce maintenance needs.
