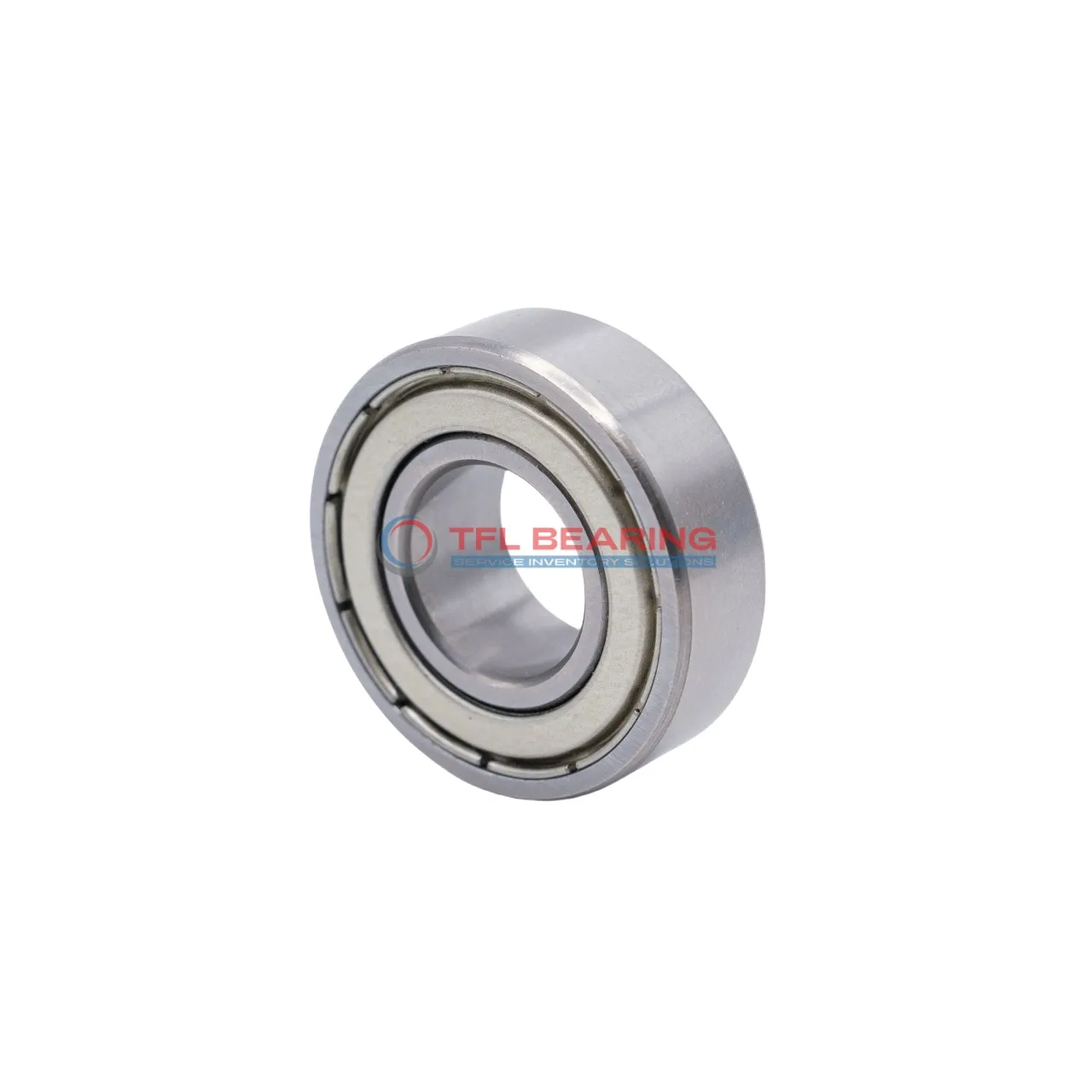

Stainless Steel Deep Groove Ball Bearings W 61805-2Z

Stainless Steel Deep Groove Ball Bearings W 61805-2Z

The W 61805-2Z is a compact stainless steel deep groove ball bearing, measuring 25mm by 37mm by 7mm. It handles radial loads up to 760 lbf and spins smoothly at speeds up to 19,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures good corrosion resistance and durability.

This bearing works well in temperatures from -30°C to 120°C, suitable for various environments. It’s interchangeable with SKF models for easy replacement.

Ideal for small machinery or appliances where space is limited. Weighing just 21 grams, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61805-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 37 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 760 lbf
  • Static Radial Load 562 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 19000 rpm
  • Weight 0.021 kg
Stainless Steel Deep Groove Ball Bearings W 61805-2Z dimension drawing
Download DWG Download PDF

Features

Why Choose W 61805-2Z Bearing for Precision Tasks?

W 61805-2Z Bearing features stainless steel construction, offering excellent corrosion resistance and durability.
Its shielded design protects against contaminants while maintaining smooth operation.

The bearing handles dynamic radial loads up to 760 lbf, making it suitable for various applications.
With a maximum speed of 19,000 rpm, it ensures efficient performance in high-speed environments.

W 61805-2Z Bearing’s compact size (25 mm×37 mm×7 mm) allows for easy integration into tight spaces.
Its grease lubrication reduces maintenance needs, ensuring long-term reliability.

Application

Industrial Uses of W 61805-2Z Bearing
W 61805-2Z Bearing is commonly used in small electric motors, such as those found in household appliances or office equipment. Its shielded design helps keep dust out while maintaining smooth rotation.

The compact size of W 61805-2Z Bearing makes it suitable for tight spaces in devices like computer cooling fans or power tools. The stainless steel construction provides good corrosion resistance for long-term use.

Where Is W 61805-2Z Bearing Used?
You’ll often find W 61805-2Z Bearing in printer mechanisms where reliable radial support is needed. Its grease lubrication ensures quiet operation perfect for office environments.

In medical devices like dental handpieces, W 61805-2Z Bearing offers precise movement thanks to its P0 tolerance class. The metric dimensions make it easy to replace in European-made equipment.

Built for Versatility: W 61805-2Z Bearing
W 61805-2Z Bearing works well in food processing equipment where stainless steel materials meet hygiene requirements. The shielded design prevents contamination of products.

For hobbyist projects like RC cars or drones, W 61805-2Z Bearing provides affordable reliability. Its 19,000 rpm rating handles most small motor applications comfortably.

Automotive vs Industrial: Applications of W 61805-2Z Bearing
In automotive applications, W 61805-2Z Bearing might be used in small actuators or window regulators. The corrosion resistance is useful for components exposed to weather.

Industrial uses include conveyor belt rollers where the bearing’s radial load capacity supports light to moderate weights. The CN clearance offers a good balance between precision and durability.

Essential Roles of W 61805-2Z Bearing
W 61805-2Z Bearing plays an important role in laboratory equipment like centrifuges, where consistent performance matters. The temperature range covers most indoor working environments.

For bicycle components like derailleur pulleys, W 61805-2Z Bearing provides smooth rotation. Its lightweight design (just 21g) helps maintain overall bike efficiency.
