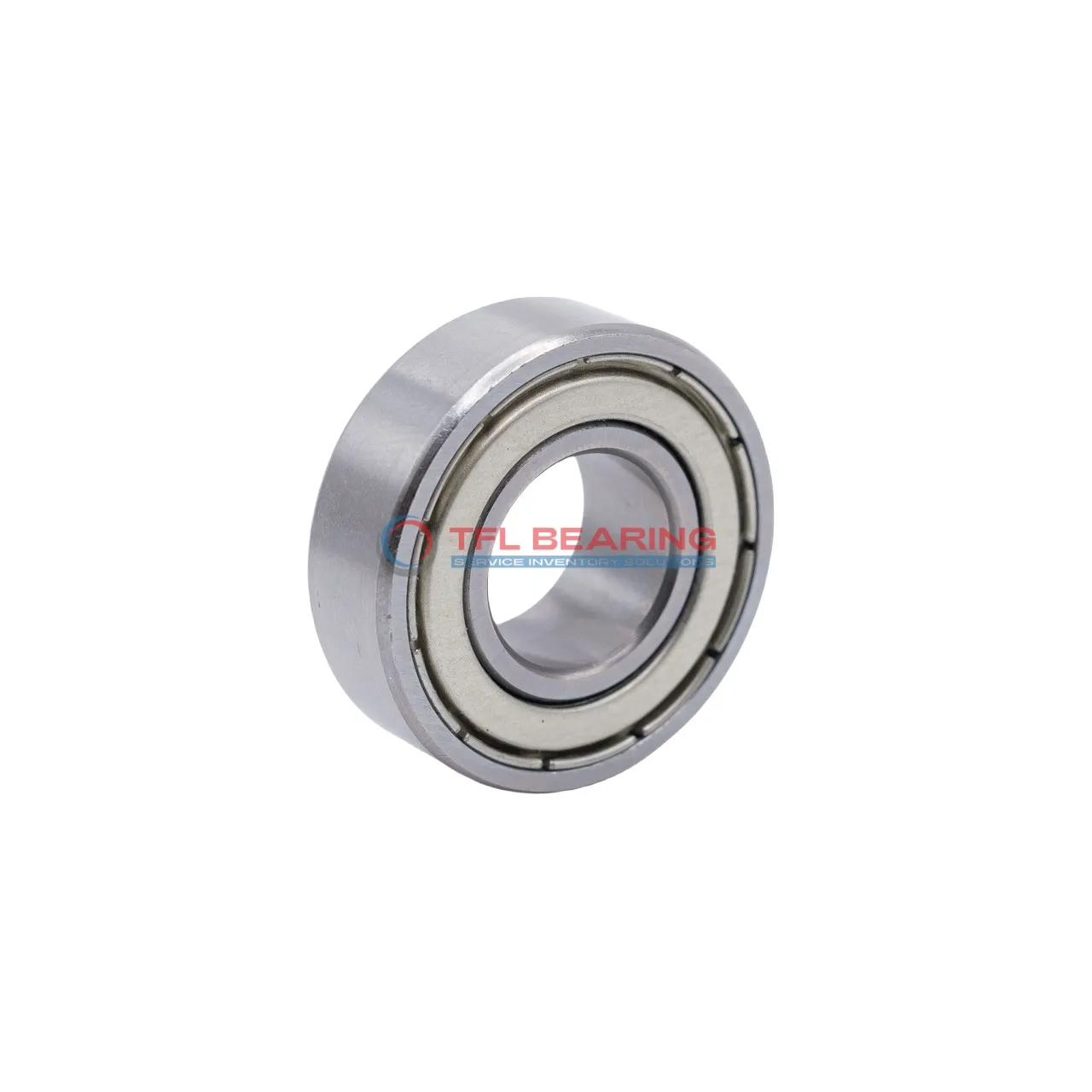

Stainless Steel Deep Groove Ball Bearings W 61804-2Z

Stainless Steel Deep Groove Ball Bearings W 61804-2Z

The W 61804-2Z is a compact stainless steel deep groove ball bearing, measuring 20mm by 32mm by 7mm. It’s designed for radial loads up to 701 lbf and can handle speeds up to 24,000 RPM.

Its shielded design keeps grease in and dirt out, making it low-maintenance. The all-stainless construction ensures corrosion resistance and durability in harsh conditions.

This bearing operates smoothly in temperatures from -30°C to 120°C. It’s interchangeable with SKF models, offering a reliable replacement option.

Ideal for small machinery or food processing equipment where hygiene and reliability matter. Weighing just 17g, it’s lightweight yet sturdy for its size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61804-2Z
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 7 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 701 lbf
  • Static Radial Load 468 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 24000 rpm
  • Weight 0.017 kg
  • Price（$） 16.9
Stainless Steel Deep Groove Ball Bearings W 61804-2Z dimension drawing
Download DWG Download PDF

Features

How Does W 61804-2Z Bearing Reduce Friction?

W 61804-2Z Bearing features stainless steel construction, ensuring smooth operation with minimal friction.

Its shielded design keeps contaminants out, maintaining consistent performance over time.

The single-row deep groove design efficiently handles radial loads up to 701 lbf.

With a maximum speed of 24,000 rpm, it offers reliable performance in high-speed applications.

Application

Industrial Uses of W 61804-2Z Bearing
W 61804-2Z Bearing is commonly used in industrial machinery like pumps and compressors, where its stainless steel construction resists corrosion. The shielded design keeps contaminants out, ensuring long-lasting performance in dusty or wet environments.

In automotive applications, W 61804-2Z Bearing fits well in electric motors and small gearboxes, thanks to its compact size and radial load capacity. Its metric dimensions make it a versatile choice for various vehicle components.

For medical devices, W 61804-2Z Bearing’s smooth operation is ideal for precision instruments like dental drills or lab equipment. The grease lubrication ensures quiet and reliable performance in sensitive settings.

Where to Use W 61804-2Z Bearing
W 61804-2Z Bearing works great in household appliances such as washing machines and fans, where its durability and low maintenance are valued. The stainless steel material also makes it suitable for food processing equipment.

In automation systems, W 61804-2Z Bearing supports small robotic arms and conveyor belts, offering reliable rotation under light to moderate loads. Its high-speed capability makes it a practical choice for repetitive tasks.
