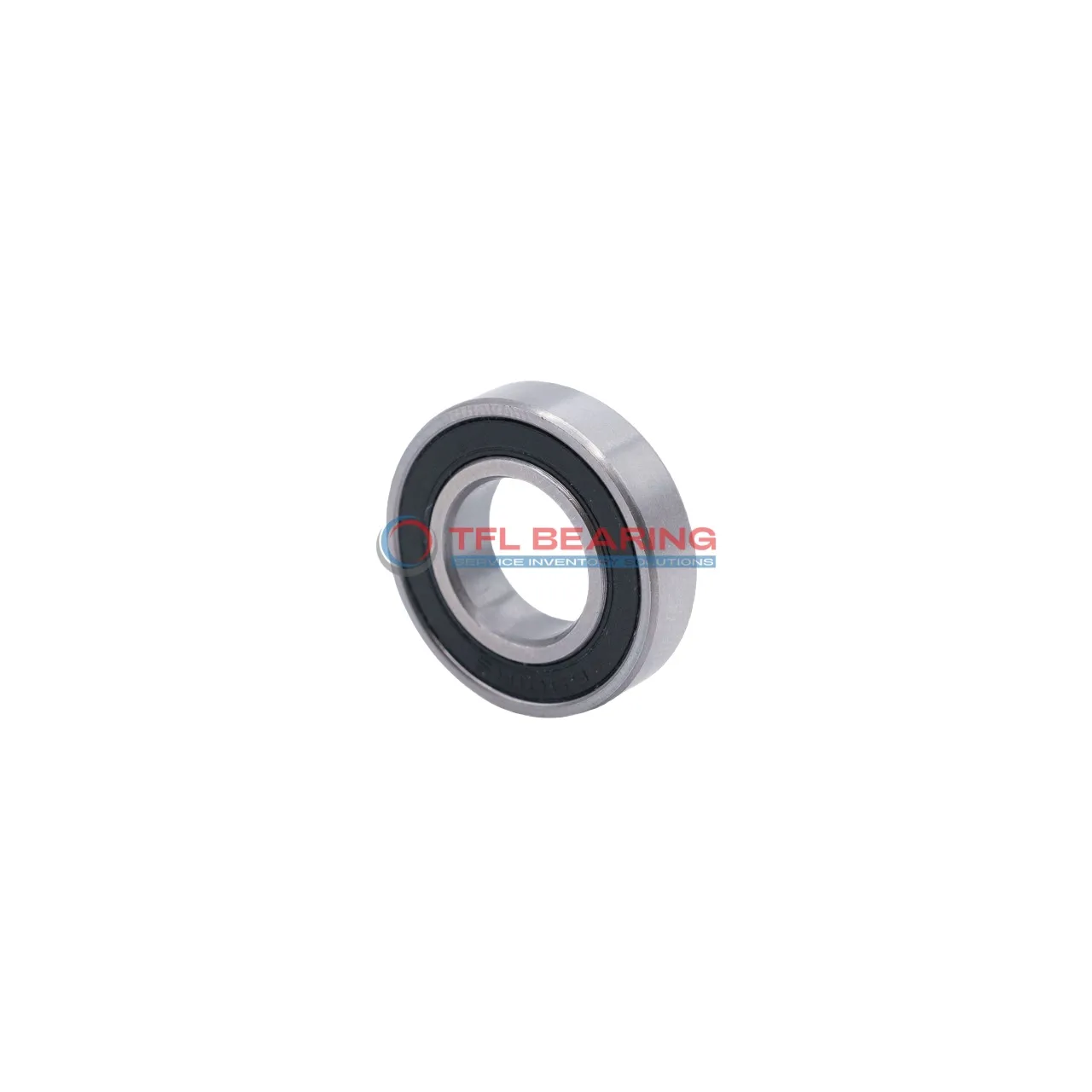

Stainless Steel Deep Groove Ball Bearings W 61802-2RS1/W64F

Stainless Steel Deep Groove Ball Bearings W 61802-2RS1/W64F

The W 61802-2RS1/W64F is a compact stainless steel deep groove ball bearing, measuring 15mm by 24mm by 5mm. It’s designed for radial loads and features a sealed construction to keep dirt out.

With a dynamic radial load capacity of 371 lbf, it handles moderate forces smoothly. The bearing spins at speeds up to 17,000 RPM, making it suitable for fast-moving applications.

The stainless steel rings and balls resist corrosion, while the chrome steel cage adds durability. Its solid oil lubrication ensures long service life with minimal maintenance.

Ideal for small machinery or instruments where space is limited. Compliant with REACH standards, it’s a reliable choice for replacements, especially in damp or demanding environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 61802-2RS1/W64F
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 15 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 24 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 5 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 371 lbf
  • Static Radial Load 243 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 17000 rpm
  • Weight 0.0071 kg
  • Price（$） 15.86
Stainless Steel Deep Groove Ball Bearings W 61802-2RS1/W64F dimension drawing
Download DWG Download PDF

Features

How Does W 61802-2RS1/W64F Bearing Reduce Friction?

W 61802-2RS1/W64F Bearing features stainless steel rings and balls, which help minimise friction during operation.
Its sealed design retains solid oil lubrication, ensuring smooth performance over extended periods.

The ABEC 1 tolerance class ensures consistent precision, reducing wear and energy loss.
With a maximum speed of 17,000 rpm, it delivers reliable efficiency in radial load applications.

Application

Key Fields for W 61802-2RS1/W64F Bearing
W 61802-2RS1/W64F Bearing is commonly used in industrial equipment like small pumps and electric motors, where its sealed design keeps contaminants out. The stainless steel construction ensures it handles moisture and mild chemicals well.

In automotive applications, W 61802-2RS1/W64F Bearing fits well in compact components like window regulators or wiper motors. Its solid oil lubrication means less maintenance over time, even in harsh weather conditions.

For medical devices, W 61802-2RS1/W64F Bearing’s small size and reliability make it suitable for portable diagnostic tools. The ABEC 1 tolerance provides smooth operation without unnecessary cost.

In home appliances, W 61802-2RS1/W64F Bearing works quietly in items like kitchen blenders or hairdryers. The sealed design prevents grease leakage, keeping things tidy.

Automation systems benefit from W 61802-2RS1/W64F Bearing in lightweight robotic arms or conveyor guides. Its low friction helps maintain precision in repetitive tasks.
