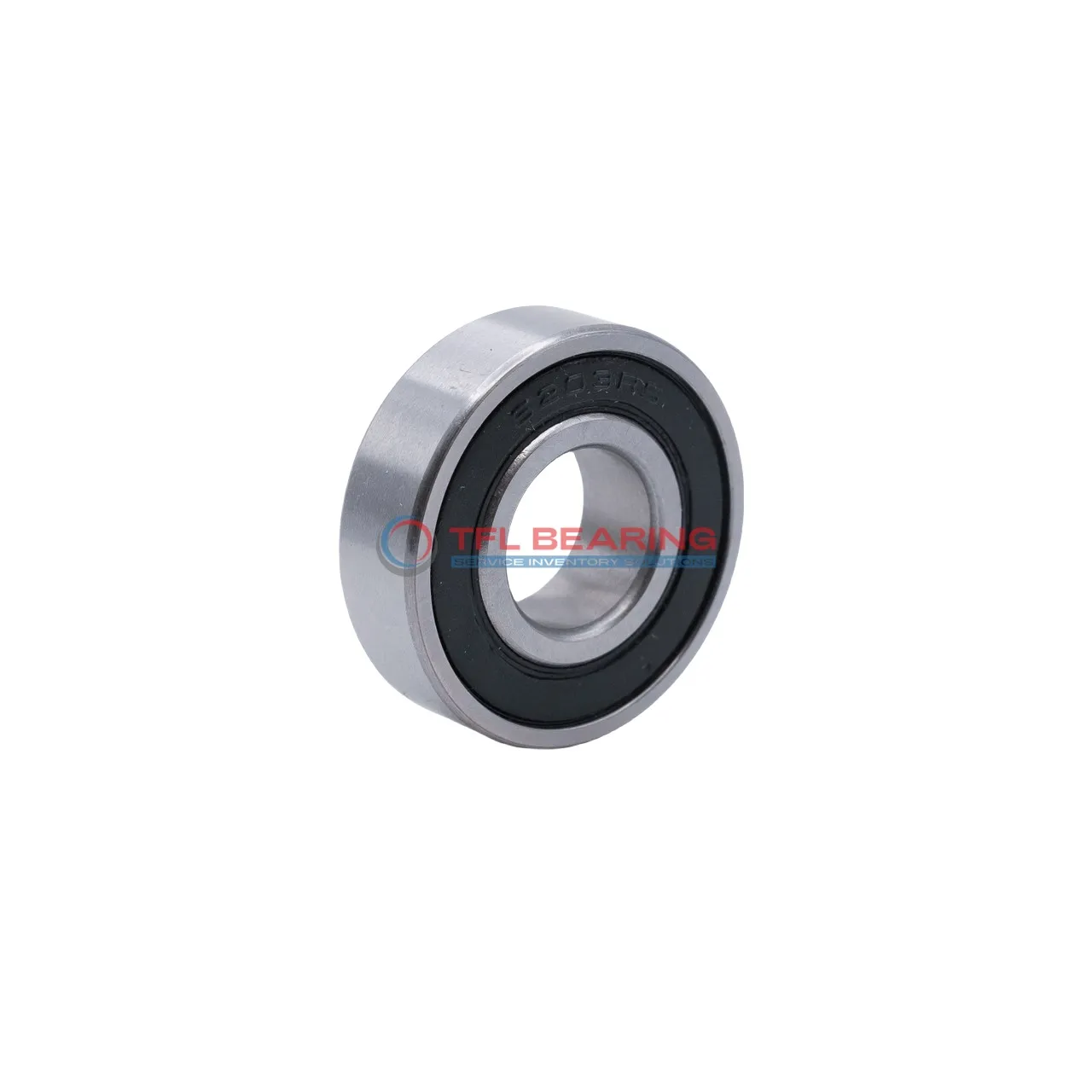

Stainless Steel Deep Groove Ball Bearings W 6010-2RS1

The W 6010-2RS1 is a stainless steel deep groove ball bearing with a 50mm bore and 80mm outer diameter, measuring 16mm wide. Its sealed design keeps grease in and dirt out, making it low-maintenance.

This bearing handles radial loads up to 4271 lbf and runs smoothly at speeds up to 5000 RPM. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

With a temperature range of -30°C to 120°C, it works well in varied conditions. The P0 tolerance ensures reliable performance for general applications.

Weighing 0.26kg, it’s a sturdy choice for machinery like pumps or food processing equipment. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number W 6010-2RS1
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 80 mm
Outer Dia Tolerance -0.013mm to 0
Width 16 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
Bearing Type Ball
For Load Direction Radial
Construction Single Row
Seal Type Sealed
Tolerance Class P0
Radial Clearance Trade No CN
Ring Material Stainless Steel
Ball Material Stainless Steel
Cage Material Stainless Steel
Dynamic Radial Load 4271 lbf
Static Radial Load 3732 lbf
Temperature Range -30° to 120 °C
Lubrication Grease
RoHS Compliant
REACH Compliant
Max Speed 5000 rpm
Weight 0.26 kg
Price（$） 57.92

Stainless Steel Deep Groove Ball Bearings W 6010-2RS1 dimension drawing

Download DWG Download PDF

Features

How Is W 6010-2RS1 Bearing Engineered for Reliability?

W 6010-2RS1 Bearing features stainless steel rings and balls, ensuring resistance to corrosion and wear.
Its sealed design protects against contaminants, making it suitable for harsh environments.

The dynamic radial load capacity of 4271 lbf allows it to handle demanding radial loads with ease.
With a maximum speed of 5,000 rpm, it offers a balance of durability and performance.

W 6010-2RS1 Bearing’s grease lubrication reduces friction, extending its service life.
The stainless steel cage maintains ball alignment, ensuring smooth and quiet operation.

Application

Industrial Uses of W 6010-2RS1 Bearing
W 6010-2RS1 Bearing is commonly used in industrial machinery, such as pumps and electric motors, where its sealed design helps keep contaminants out. The stainless steel construction ensures it performs well in humid or corrosive environments.

What Makes W 6010-2RS1 Bearing a Preferred Choice?
In automotive applications, W 6010-2RS1 Bearing works well in components like alternators and water pumps, thanks to its radial load capacity. The grease lubrication also reduces maintenance needs, making it a reliable option for long-term use.

Perfect Fit for Automation: W 6010-2RS1 Bearing
For automation systems, W 6010-2RS1 Bearing is ideal for robotic arms and conveyor belts, where smooth rotation is essential. Its compact size and metric measurements make it easy to integrate into various designs.

Medical vs Industrial: Where W 6010-2RS1 Bearing Excels
In medical devices like centrifuges, W 6010-2RS1 Bearing offers quiet and reliable operation. Meanwhile, in industrial settings, its durability shines in equipment like food processing machines, where hygiene and longevity are key.
