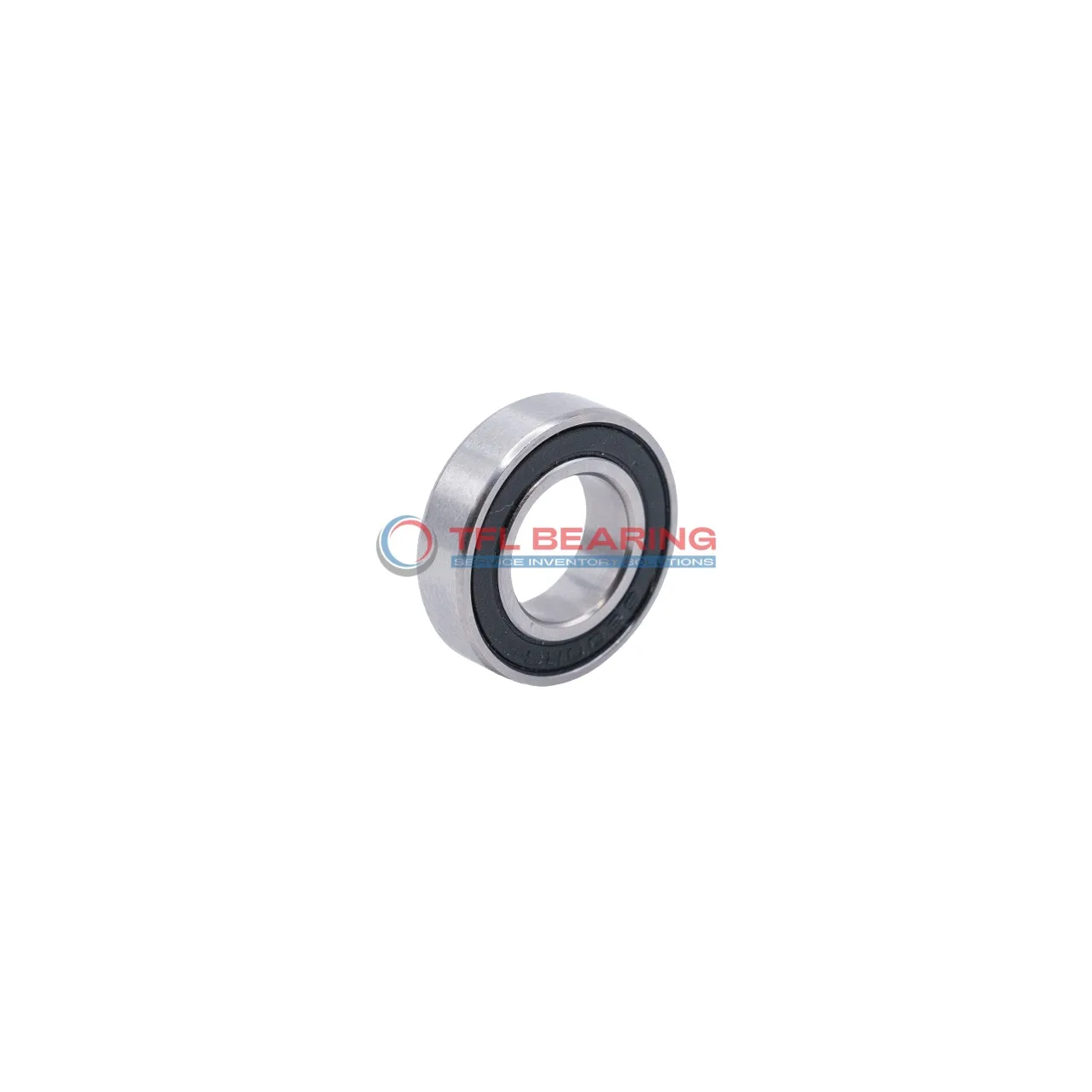

Stainless Steel Deep Groove Ball Bearings W 6007-2RS1/W64

Stainless Steel Deep Groove Ball Bearings W 6007-2RS1/W64

The W 6007-2RS1/W64 is a stainless steel deep groove ball bearing measuring 35mm by 62mm by 14mm, designed for radial loads. It handles dynamic loads up to 3102 lbf and spins smoothly at speeds up to 15,000 RPM.

Its sealed design keeps dirt out and solid oil lubrication ensures long-lasting performance with minimal maintenance. The stainless steel construction resists corrosion, making it suitable for humid or wet environments.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for applications like electric motors, pumps, or food processing equipment where hygiene and durability are key.

Weighing just 0.14kg, it’s lightweight yet robust. It operates in temperatures from -30°C to 120°C and complies with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6007-2RS1/W64
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 14 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3102 lbf
  • Static Radial Load 2293 lbf
  • Temperature Range -30°to 120 °C
  • Lubrication Soild Oil
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.14 kg
  • Price（$） 38.06
Stainless Steel Deep Groove Ball Bearings W 6007-2RS1/W64 dimension drawing
Download DWG Download PDF

Features

How Does W 6007-2RS1/W64 Bearing Reduce Friction?

W 6007-2RS1/W64 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
Its sealed design and solid oil lubrication further enhance performance by reducing wear.

The ABEC 1 tolerance class ensures consistent precision, making it suitable for radial load applications.
With a maximum speed of 15,000 rpm, it delivers reliable efficiency in various conditions.

W 6007-2RS1/W64 Bearing’s durable construction extends service life, even under dynamic radial loads up to 3102 lbf.
Its corrosion-resistant materials make it ideal for use in challenging environments.

Application

Where Is W 6007-2RS1/W64 Bearing Used?
W 6007-2RS1/W64 Bearing is commonly used in industrial equipment like pumps and compressors, where its sealed design helps keep contaminants out. The stainless steel construction also makes it suitable for wet or corrosive environments.

In automotive applications, W 6007-2RS1/W64 Bearing works well in electric motors and alternators, providing reliable radial load support. Its solid oil lubrication ensures smooth operation even at higher speeds.

For home appliances, W 6007-2RS1/W64 Bearing can be found in washing machines and fans, where its durability and low maintenance are appreciated. The ABEC 1 tolerance offers a good balance of performance and cost for everyday use.

In automation systems, W 6007-2RS1/W64 Bearing supports robotic arms and conveyor belts, thanks to its consistent performance. The metric sizing makes it easy to integrate into various European and Asian machinery designs.
