Stainless Steel Deep Groove Ball Bearings W 6005-2RS1/VP311

Stainless Steel Deep Groove Ball Bearings W 6005-2RS1/VP311

The W 6005-2RS1/VP311 is a stainless steel deep groove ball bearing with a 25mm bore and 47mm outer diameter, measuring 12mm wide. It handles radial loads up to 1958 lbf and spins smoothly at speeds up to 9500 RPM.

Its sealed design keeps grease in and dirt out, making it low-maintenance for long-term use. The all-stainless construction resists corrosion, ideal for damp or harsh environments.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Perfect for food processing equipment or marine applications where rust resistance matters.

Weighing just 0.077kg, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6005-2RS1/VP311
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 1958 lbf
  • Static Radial Load 1315 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • RoHS Compliant
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.077 kg

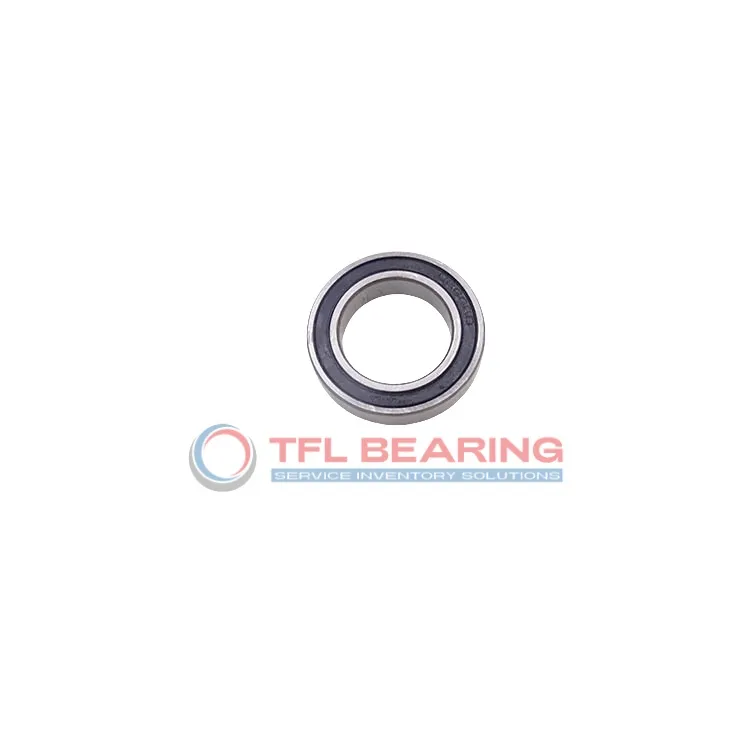

Stainless Steel Deep Groove Ball Bearings W 6005-2RS1/VP311 dimension drawing
Download DWG Download PDF

Features

Why Choose W 6005-2RS1/VP311 Bearing for Precision Tasks?

W 6005-2RS1/VP311 Bearing is crafted with stainless steel rings and balls, offering excellent corrosion resistance.
Its sealed design keeps out contaminants, ensuring smooth operation in various environments.

The dynamic radial load capacity of 1958 lbf makes it suitable for demanding radial applications.
With a maximum speed of 9,500 rpm, it delivers reliable performance without compromising efficiency.

W 6005-2RS1/VP311 Bearing’s single-row construction provides stability and reduces friction.
The grease lubrication ensures long service life with minimal maintenance required.

Its compact size of 25 mm×47 mm×12 mm makes it ideal for space-constrained applications.
The P0 tolerance class guarantees consistent performance in precision tasks.

Application

Common Applications of W 6005-2RS1/VP311 Bearing
W 6005-2RS1/VP311 Bearing is widely used in industrial equipment like conveyor systems and pumps, where its sealed design protects against dust and moisture. The stainless steel construction ensures long-lasting performance even in demanding environments.

In automotive applications, W 6005-2RS1/VP311 Bearing fits well in electric motors and gearboxes, providing smooth rotation under radial loads. Its metric dimensions make it a versatile choice for various vehicle models.

For medical devices, W 6005-2RS1/VP311 Bearing offers reliable operation in equipment like lab analyzers, where hygiene and precision are key. The grease lubrication helps maintain quiet and efficient performance over time.

Automation systems benefit from W 6005-2RS1/VP311 Bearing in robotic arms and assembly lines, thanks to its consistent accuracy. The P0 tolerance class ensures it meets tight precision requirements.

In household appliances like washing machines, W 6005-2RS1/VP311 Bearing provides durable support for rotating parts. Its corrosion-resistant materials make it suitable for damp or wet conditions.
