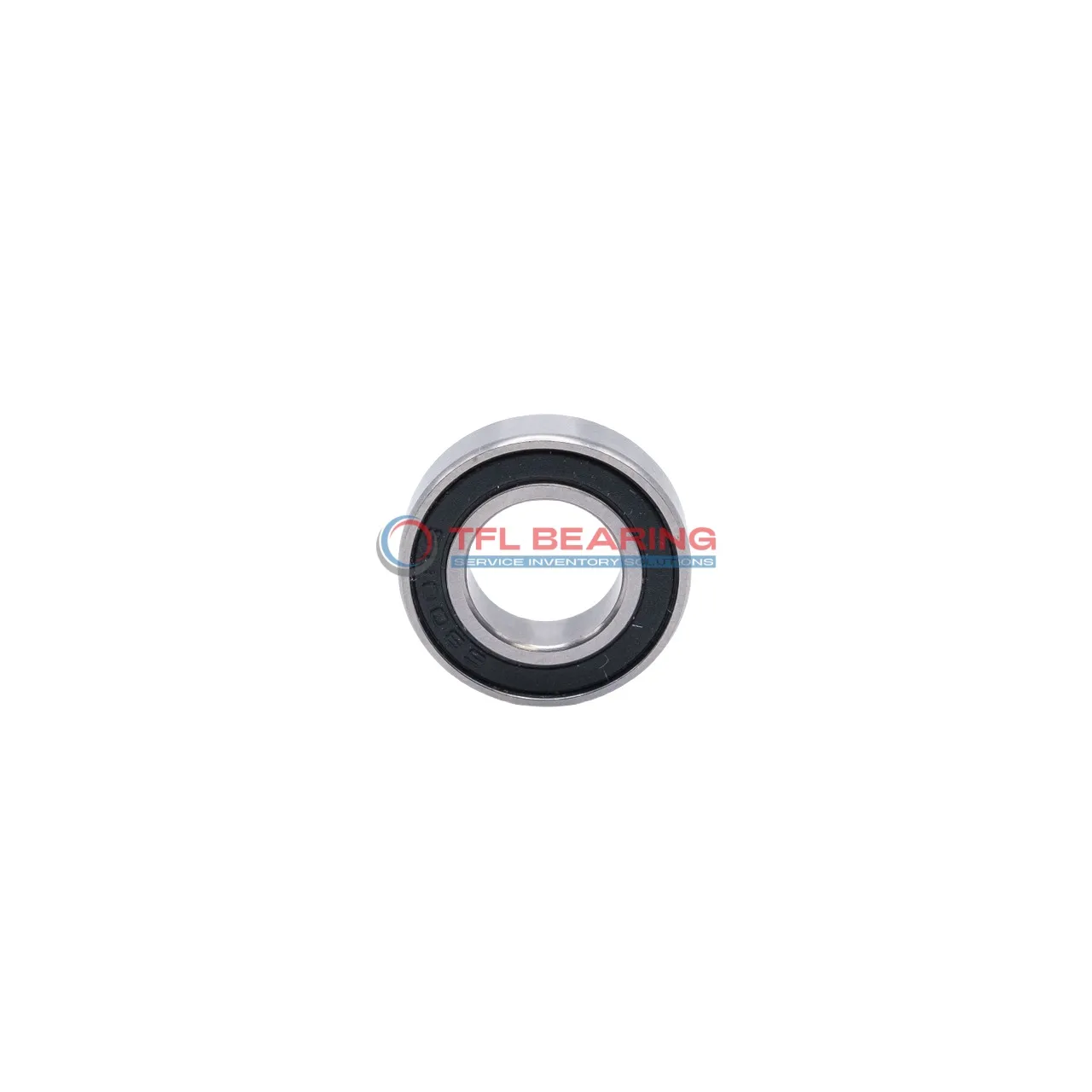

Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/R799

Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/R799

The W 6001-2RS1/R799 is a compact stainless steel deep groove ball bearing, measuring 12mm by 28mm by 8mm. Its sealed design keeps out dirt and moisture, making it low-maintenance for everyday use.

With a dynamic radial load capacity of 994 lbf, it handles moderate loads smoothly. It spins at speeds up to 36,000 RPM, suitable for fast-moving applications.

Made entirely from stainless steel, it resists corrosion and works in temperatures from -30°C to 120°C. The chrome steel cage adds durability without adding weight.

Ideal for food processing or marine equipment where rust resistance matters. At just 0.018kg, it’s a lightweight choice for small machinery or tools. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number W 6001-2RS1/R799
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 28 mm
  • Outer Dia Tolerance -0.009mm to 0
  • Width 8 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Sealed
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Stainless Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 994 lbf
  • Static Radial Load 531 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 36000 rpm
  • Weight 0.018 kg
Stainless Steel Deep Groove Ball Bearings W 6001-2RS1/R799 dimension drawing
Download DWG Download PDF

Features

How Does W 6001-2RS1/R799 Bearing Reduce Friction?

W 6001-2RS1/R799 Bearing features stainless steel rings and balls, ensuring smooth operation with minimal friction.
The sealed design keeps contaminants out, maintaining consistent performance over time.
With a dynamic radial load capacity of 994 lbf, it handles demanding radial loads efficiently.
Its maximum speed of 36,000 rpm makes it suitable for high-speed applications.

Application

Common Applications of W 6001-2RS1/R799 Bearing
W 6001-2RS1/R799 Bearing is widely used in industrial equipment like small motors and pumps, where its sealed design keeps contaminants out. The stainless steel construction ensures it handles moisture and mild chemicals well.

In automotive applications, W 6001-2RS1/R799 Bearing fits compact spaces like alternators or cooling fans. Its radial load capacity and ABEC 1 tolerance make it reliable for everyday driving conditions.

For home appliances, W 6001-2RS1/R799 Bearing works smoothly in items like blenders or power tools. The sealed feature means less maintenance, while the metric sizing suits global manufacturing standards.

Where Is W 6001-2RS1/R799 Bearing Used?
You’ll find W 6001-2RS1/R799 Bearing in medical devices like dental handpieces, where its quiet operation matters. The stainless steel materials also meet hygiene requirements for frequent sterilisation.

In automation systems, W 6001-2RS1/R799 Bearing supports small robotic arms or conveyor guides. Its compact 12mm bore fits precision mechanisms without sacrificing durability.
