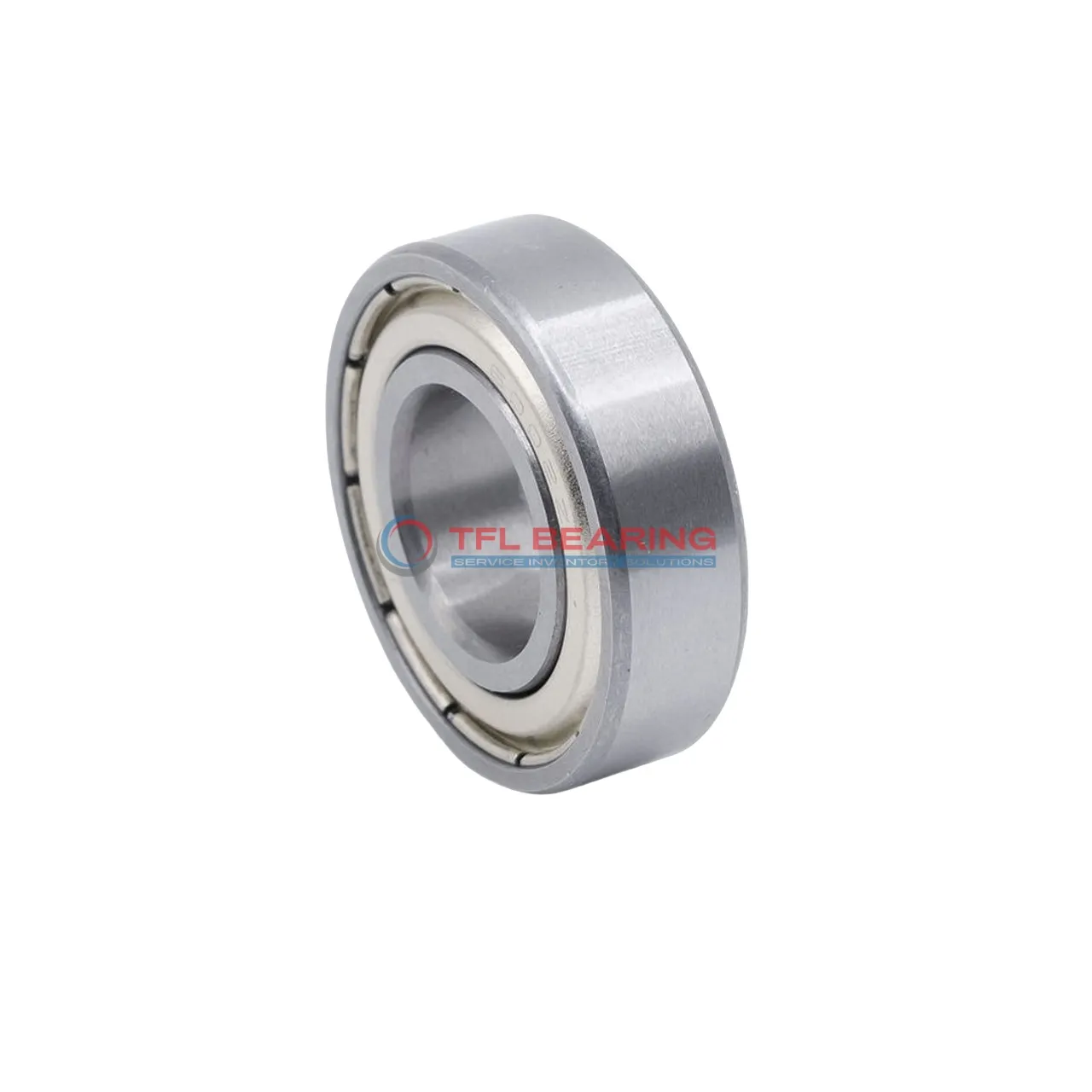

Stainless Steel Deep Groove Ball Bearings 307SZZ-HNCR-HYB

Stainless Steel Deep Groove Ball Bearings 307SZZ-HNCR-HYB

The 307SZZ-HNCR-HYB is a stainless steel deep groove ball bearing, measuring 35mm by 80mm by 21mm. It’s designed for radial loads and features a shielded construction for added protection.

With a dynamic radial load capacity of 7801 lbf, it handles heavy-duty applications smoothly. The ceramic balls and chrome steel cage ensure durability and a max speed of 9500 RPM.

Its ABEC 1 tolerance and ISO P0 rating make it reliable for precision tasks. The bearing operates in temperatures from -30°C to 120°C, suitable for various environments.

Ideal for machinery requiring corrosion-resistant parts, like food processing or marine equipment. It’s interchangeable with SKF bearings, offering a practical replacement option. Weighing 0.48kg, it balances strength and lightness.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 307SZZ-HNCR-HYB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Ceramic Ball (silicon nitride)
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7801 lbf
  • Static Radial Load 5957 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.48 kg
  • Price（$） 151.79
Stainless Steel Deep Groove Ball Bearings 307SZZ-HNCR-HYB dimension drawing
Download DWG Download PDF

Features

Why Choose 307SZZ-HNCR-HYB Bearing for Precision Tasks?

307SZZ-HNCR-HYB Bearing features stainless steel rings and ceramic balls, offering excellent resistance to wear and corrosion.
Its dynamic radial load capacity of 7801 lbf ensures reliable performance in various applications.
The shielded design protects against contaminants, maintaining smooth operation.
With a maximum speed of 9,500 rpm, it combines durability with high-speed efficiency.

Application

Industrial Uses of 307SZZ-HNCR-HYB Bearing
307SZZ-HNCR-HYB Bearing is commonly used in industrial settings, such as conveyor systems and pumps, where its stainless steel construction offers excellent corrosion resistance. The shielded design helps keep contaminants out, ensuring longer service life in demanding environments.

How Does 307SZZ-HNCR-HYB Bearing Improve Performance?
In automotive applications, 307SZZ-HNCR-HYB Bearing enhances performance in components like alternators and water pumps. Its ceramic balls reduce friction, making it ideal for high-speed operations while maintaining durability.

Perfect Fit for Automation: 307SZZ-HNCR-HYB Bearing
307SZZ-HNCR-HYB Bearing works well in robotic arms and automated machinery, where precision and reliability are key. The combination of stainless steel rings and ceramic balls ensures smooth, low-maintenance operation.

Medical vs Industrial: Where 307SZZ-HNCR-HYB Bearing Excels
In medical devices like centrifuges, 307SZZ-HNCR-HYB Bearing provides quiet and reliable performance. Its corrosion-resistant materials also make it suitable for industrial washdown applications where hygiene is important.

Where to Use 307SZZ-HNCR-HYB Bearing
For household appliances like washing machines, 307SZZ-HNCR-HYB Bearing offers a balance of durability and quiet operation. The shielded seals help protect against dust and moisture, extending its lifespan in everyday use.
