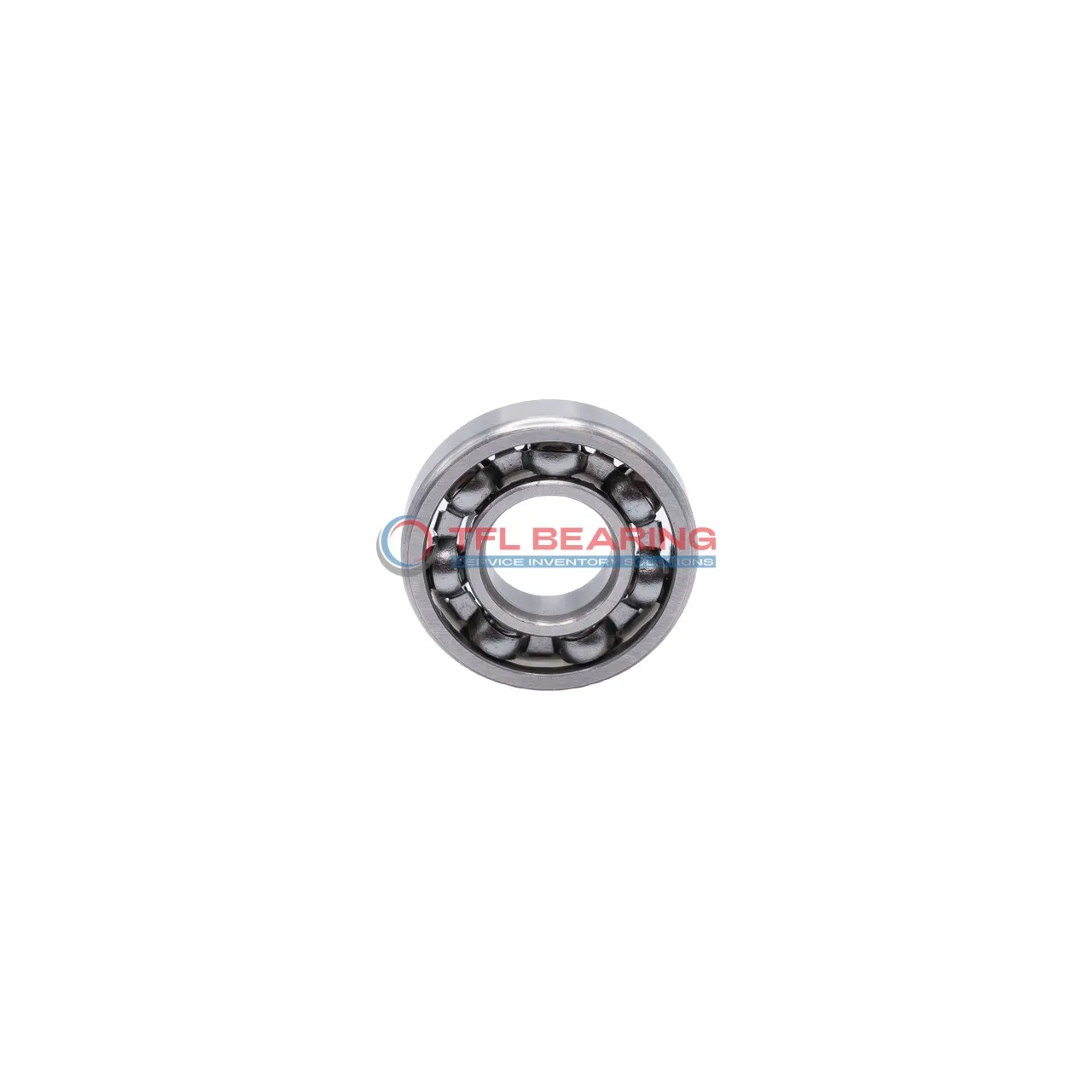

Stainless Steel Deep Groove Ball Bearings 209S-HNCR-HYB

Stainless Steel Deep Groove Ball Bearings 209S-HNCR-HYB

The 209S-HNCR-HYB is a stainless steel deep groove ball bearing with a 45mm bore and 85mm outer diameter, designed for radial loads. Its compact 19mm width makes it suitable for tight spaces.

With ceramic balls and a chrome steel cage, it handles radial loads up to 7913 lbf and spins smoothly at 8500 RPM. The open design allows easy access for lubrication.

This bearing performs well in temperatures from -30°C to 120°C, making it versatile for various environments. It’s interchangeable with SKF bearings for easy replacement.

Ideal for applications like pumps or food processing equipment where corrosion resistance is key. Weighing 0.44kg, it’s sturdy yet manageable for its size. Compliant with REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 209S-HNCR-HYB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Open
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Ceramic Ball (silicon nitride)
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7913 lbf
  • Static Radial Load 6744 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 0.44 kg
  • Price（$） 100.74
Stainless Steel Deep Groove Ball Bearings 209S-HNCR-HYB dimension drawing
Download DWG Download PDF

Features

How Does 209S-HNCR-HYB Bearing Reduce Friction?

209S-HNCR-HYB Bearing features ceramic balls made from silicon nitride, which significantly lowers friction during operation.
The stainless steel rings and chrome steel cage work together to ensure smooth performance under radial loads.
With a dynamic radial load capacity of 7913 lbf, it handles demanding applications with ease.
Its open design allows for efficient lubrication, further reducing wear and maintenance needs.

Built for Reliability: 209S-HNCR-HYB Bearing

209S-HNCR-HYB Bearing is constructed with stainless steel rings and ceramic balls, offering excellent corrosion resistance.
The chrome steel cage maintains ball alignment, enhancing durability and reducing operational noise.
It operates smoothly within a temperature range of -30° to 120°C, making it versatile for various environments.
With a maximum speed of 8,500 rpm, it delivers consistent performance in high-speed applications.

Material Composition of 209S-HNCR-HYB Bearing

209S-HNCR-HYB Bearing combines stainless steel rings with silicon nitride ceramic balls for reduced friction and wear.
The chrome steel cage ensures stable ball movement, even under heavy radial loads.
Its design allows for efficient heat dissipation, maintaining performance in high-temperature conditions.
The bearing’s lightweight construction at 0.44 kg makes it easy to handle and install.

Application

Common Applications of 209S-HNCR-HYB Bearing
209S-HNCR-HYB Bearing is widely used in industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The ceramic balls reduce friction, making it efficient for continuous operation.

In automotive applications, 209S-HNCR-HYB Bearing fits well in electric motors and alternators, providing reliable performance under radial loads. Its metric dimensions ensure compatibility with various vehicle designs.

For medical devices, 209S-HNCR-HYB Bearing offers smooth operation in equipment like centrifuges, where precision and hygiene are essential. The open seal design allows for easy cleaning and maintenance.

Automation systems benefit from 209S-HNCR-HYB Bearing in robotic arms and conveyor belts, where its low friction and durability enhance performance. The ABEC 1 tolerance ensures consistent accuracy in repetitive tasks.

In household appliances, 209S-HNCR-HYB Bearing is found in washing machines and fans, where its quiet operation and long lifespan are appreciated. The ceramic balls help reduce noise and energy consumption.
