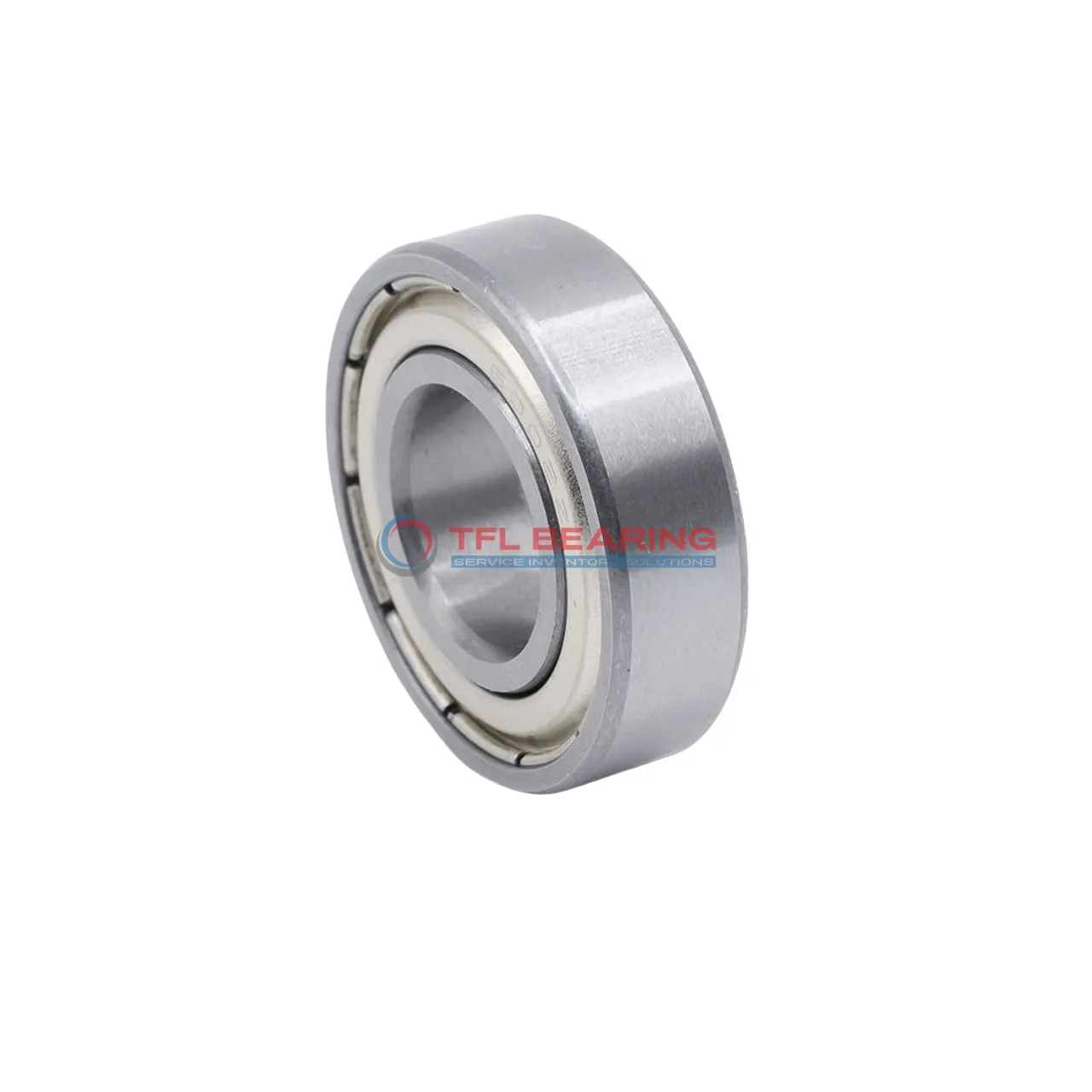

Stainless Steel Deep Groove Ball Bearings 208SZZ-HNCR-HYB

Stainless Steel Deep Groove Ball Bearings 208SZZ-HNCR-HYB

The 208SZZ-HNCR-HYB is a stainless steel deep groove ball bearing with a 40mm bore and 80mm outer diameter, designed for radial loads. It measures 18mm in width, making it compact yet sturdy for its size.

This bearing handles radial loads up to 7554 lbf and can spin at speeds up to 9500 RPM, thanks to its ceramic balls and chrome steel cage. The shielded design keeps dirt out while maintaining smooth operation.

Its stainless steel construction resists corrosion, ideal for damp or harsh environments. The bearing works in temperatures from -30°C to 120°C, suitable for various industrial applications.

Weighing 0.39kg, it’s a lightweight option for machinery like pumps or conveyors. Compliant with REACH standards, it’s a reliable choice for replacements, especially where SKF bearings are used.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 208SZZ-HNCR-HYB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 18 mm
  • Width Tolerance -0.12mm to 0
  • System of Measurement Metric
  • Bearing Type Ball
  • For Load Direction Radial
  • Construction Single Row
  • Seal Type Shielded
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Stainless Steel
  • Ball Material Ceramic Ball (silicon nitride)
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7554 lbf
  • Static Radial Load 6070 lbf
  • Temperature Range -30°to 120 °C
  • REACH Compliant
  • Max Speed 9500 rpm
  • Weight 0.39 kg
  • Price（$） 92.85
Stainless Steel Deep Groove Ball Bearings 208SZZ-HNCR-HYB dimension drawing
Download DWG Download PDF

Features

How Does 208SZZ-HNCR-HYB Bearing Reduce Friction?

208SZZ-HNCR-HYB Bearing features ceramic balls made from silicon nitride, which significantly lowers friction during operation.
Its stainless steel rings and chrome steel cage ensure durability while maintaining smooth performance.

The shielded design helps keep contaminants out, further reducing wear and extending the bearing’s life.
With a maximum speed of 9,500 rpm, it offers efficient performance in various applications.

The dynamic radial load capacity of 7554 lbf makes it suitable for demanding radial load conditions.
Its temperature range of -30° to 120°C ensures reliable operation in diverse environments.

Application

Key Fields for 208SZZ-HNCR-HYB Bearing
208SZZ-HNCR-HYB Bearing is commonly used in industrial equipment like pumps and compressors, where its stainless steel construction resists corrosion in harsh environments. The shielded design helps keep contaminants out, extending service life.

In automotive applications, 208SZZ-HNCR-HYB Bearing fits well in electric motors and alternators, providing reliable radial load support. Its ceramic balls reduce friction, improving efficiency in high-speed scenarios.

For medical devices, 208SZZ-HNCR-HYB Bearing’s clean operation makes it suitable for precision instruments like lab centrifuges. The hybrid ceramic-steel design ensures smooth rotation with minimal maintenance.

Automation systems benefit from 208SZZ-HNCR-HYB Bearing in robotic arms, where its consistent performance aids repetitive movements. The ABEC 1 tolerance offers a good balance of precision and cost-effectiveness.

In household appliances, 208SZZ-HNCR-HYB Bearing works quietly in washing machines and fans. Its durable materials handle daily wear while maintaining smooth operation over time.
