Spherical Roller Thrust Bearings 29384

Spherical Roller Thrust Bearings 29384

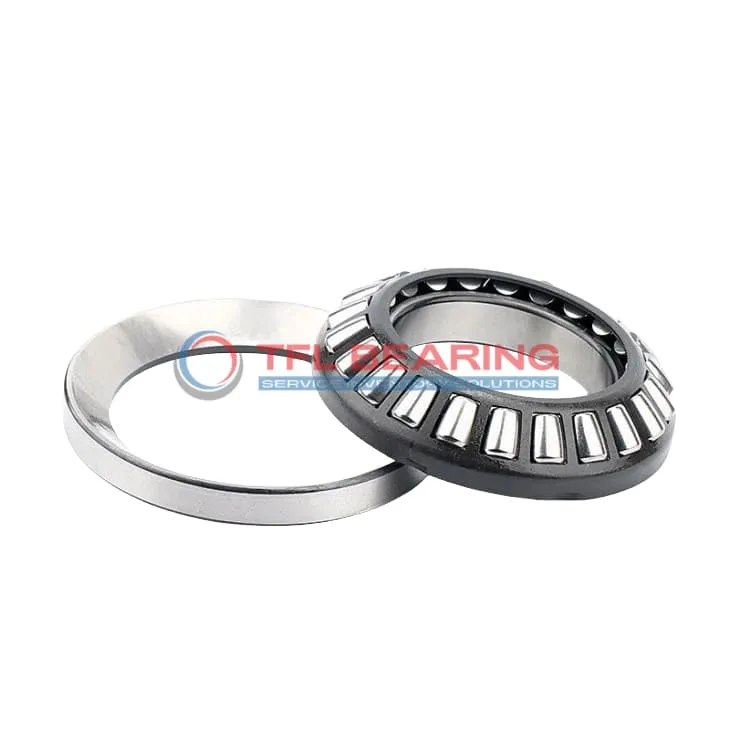

The 29384 is a spherical roller thrust bearing with a large 420mm bore and 650mm outer diameter, built to handle heavy combined loads. It supports dynamic thrust loads up to 840785 lbf and operates at speeds up to 900 RPM.

Made from durable steel, its single-row design ensures reliable performance under demanding conditions. The bearing requires regular lubrication and works in temperatures from -30°C to 100°C.

Its spherical rollers help accommodate misalignment, making it suitable for heavy machinery like crushers or large gearboxes. The steel cage adds strength and longevity.

Weighing 170kg, this robust bearing is interchangeable with SKF models for easy replacement. Compliant with RoHS and REACH standards, it’s a dependable choice for industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 29384
  • Brand TFL
  • Interchangeable SKF
  • Size 420 mm x 650 mm x 140 mm
  • Bore Dia 420 mm
  • Bore Dia Tolerance -0.045 to 0
  • Outer Dia 650 mm
  • Outer Dia Tolerance -0.075 to 0
  • Width 140 mm
  • Outside Diameter(d1) 626 mm
  • Shoulder Diameter Outer Ring (D1) 520 mm
  • Height Shaft Washer Cage(B1) 135 mm
  • Height Housing Washer(C) 67.5 mm
  • Distance From Shaft Washer End Side Face To Pressure Point(s) 235 mm
  • Chamfer Dimension Shaft Washer(r1,2) 6 mm
  • System of Measurement Metric
  • Roller Bearing Type Spherical
  • Bearing Type Roller
  • For Load Direction Combined
  • Construction Single Row
  • Roller Material Steel
  • Cage Material Steel
  • Dynamic Thrust Load 840785 lbf
  • Static Thrust Load 3596943 lbf
  • Max Speed 900 rpm
  • Lubrication Required
  • Temperature Range -30 to 100 °C
  • RoHS Compliant
  • REACH Compliant
  • Weight 170 kg
  • Height Tolerance -0.175 to 0
  • Price（$） 2384.127

Features

Performance Features of 29384 Bearing

29384 Bearing is built with a spherical roller design, ideal for handling combined loads with ease.
Its dynamic thrust load capacity of 840785 lbf ensures robust performance in heavy-duty applications.

The steel rollers and cage provide durability, even under high-stress conditions.
With a maximum speed of 900 rpm, it balances efficiency and reliability.

29384 Bearing operates smoothly within a temperature range of -30 to 100 °C.
Its single-row construction simplifies installation while maintaining structural integrity.

Application

Industrial Uses of 29384 Bearing
29384 Bearing is commonly used in heavy machinery like mining equipment and large presses, where its spherical roller design handles combined loads effectively. The steel construction ensures durability even in demanding industrial environments.

Where Is 29384 Bearing Used?
You’ll often find 29384 Bearing in wind turbines and marine propulsion systems, thanks to its ability to manage high thrust loads. Its large size and robust build make it ideal for applications requiring long-term reliability.

Built for Heavy-Duty Use: 29384 Bearing
29384 Bearing excels in steel mills and paper processing plants, where its high dynamic thrust load capacity is crucial. The required lubrication ensures smooth operation under continuous heavy loads.

Automotive vs Aerospace: Applications of 29384 Bearing
In automotive settings, 29384 Bearing supports large gearboxes and drivetrains, while in aerospace, it’s used in ground support equipment. Its metric sizing and steel rollers make it versatile across industries.

Perfect Fit for Automation: 29384 Bearing
29384 Bearing is a reliable choice for automated production lines, particularly in handling systems with high load requirements. The single-row construction simplifies installation and maintenance.
