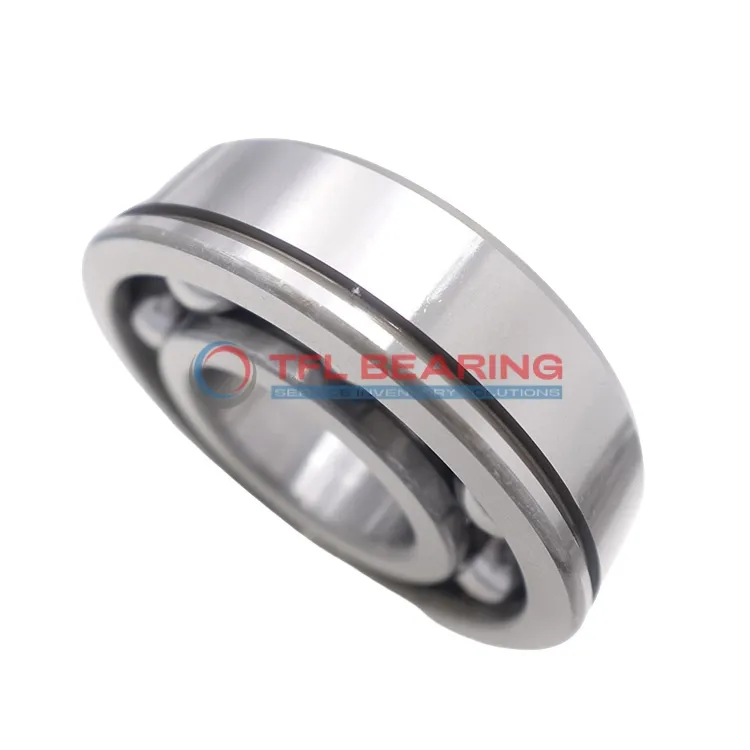

Snap Ring Groove Ball Bearings 6312N/C3

Snap Ring Groove Ball Bearings 6312N/C3

The 6312N/C3 is a snap ring groove ball bearing with a 60mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 18412 lbf and operates smoothly at speeds up to 5300 RPM.

Its open design and snap ring groove on the outer ring make installation secure and straightforward. The C3 radial clearance ensures reliable performance under varying temperatures, from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a practical replacement option. Ideal for industrial machinery or automotive applications where radial load support is needed.

Weighing 1699g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6312N/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 31 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 130 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 18412 lbf
  • Static Radial Load 11735 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5300 rpm
  • Weight 1699 g
  • Price（$） 25.8
Snap Ring Groove Ball Bearings 6312N/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6312N/C3 Bearing Reduce Friction?

6312N/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The snap ring groove design enhances stability, making it suitable for radial load applications.

With a dynamic radial load capacity of 18412 lbf, it handles demanding conditions efficiently.
Its open design allows for easy lubrication, further reducing wear and extending service life.

The C3 radial clearance ensures optimal performance even under varying temperatures.
This makes 6312N/C3 Bearing a reliable choice for industrial machinery.

Application

Common Applications of 6312N/C3 Bearing
6312N/C3 Bearing is widely used in industrial machinery, such as pumps and gearboxes, where its snap ring groove ensures secure mounting. The open design allows for easy lubrication, extending service life in demanding conditions.

In automotive applications, 6312N/C3 Bearing supports components like alternators and transmissions, providing reliable radial load handling. Its C3 clearance accommodates thermal expansion, making it suitable for variable temperature environments.

For automation systems, 6312N/C3 Bearing is a practical choice for robotic arms and conveyor belts, thanks to its durable chrome steel construction. The snap ring groove simplifies installation, reducing downtime during maintenance.

In household appliances like washing machines, 6312N/C3 Bearing offers smooth operation and long-term reliability. Its metric sizing ensures compatibility with a range of European and Asian appliance designs.
