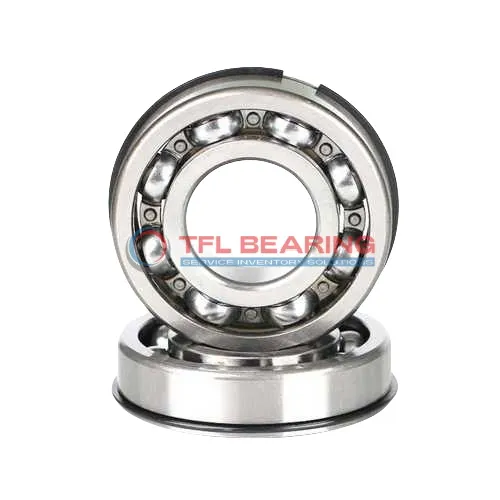

Snap Ring Groove Ball Bearings 6310NR 3110-1156263

The 6310NR is a snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, designed for radial loads. Its compact width of 27mm fits neatly into tight spaces, while the chrome steel construction ensures durability.

This bearing handles radial loads up to 13938 lbf and operates smoothly at speeds up to 6000 RPM. The snap ring feature on the outer ring helps secure it firmly in place during use.

With an operating temperature range of -30°C to 120°C, it’s suitable for various environments. The open design allows for easy lubrication and maintenance.

Ideal for machinery where secure mounting is needed, such as electric motors or pumps. Compliant with RoHS and REACH standards, it’s a reliable choice for industrial applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6310NR 3110-1156263
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012 mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015 mm to 0
Width 27 mm
Width Tolerance -0.12 mm to 0
Outside Diameter Of Snap Ring 116.6 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 13938 lbf
Static Radial Load 861 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 6000 rpm
Price（$） 19.6

Snap Ring Groove Ball Bearings 6310NR 3110-1156263 dimension drawing

Download DWG Download PDF

Features

How Does 6310NR Bearing Ensure Smooth Operation?

6310NR Bearing features a snap ring groove design, providing secure positioning and easy installation.
Its chrome steel construction offers durability and resistance to wear in radial load applications.

The single-row ball design ensures smooth rotation, even at speeds up to 6,000 rpm.
With a dynamic radial load capacity of 13,938 lbf, it handles demanding conditions reliably.

6310NR Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its open seal type allows for easy maintenance and lubrication adjustments.

Application

Common Applications of 6310NR Bearing
The 6310NR Bearing is widely used in industrial machinery, such as pumps and gearboxes, where its snap ring groove ensures secure mounting. Its open design allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6310NR Bearing fits well in wheel hubs and transmissions due to its radial load capacity. The chrome steel construction provides durability, even under constant stress.

For automation systems, 6310NR Bearing supports robotic arms and conveyor belts with reliable performance. The snap ring feature adds stability, preventing unwanted movement during operation.

In household appliances like washing machines, 6310NR Bearing offers smooth rotation and long service life. Its metric sizing ensures compatibility with various European and Asian models.
