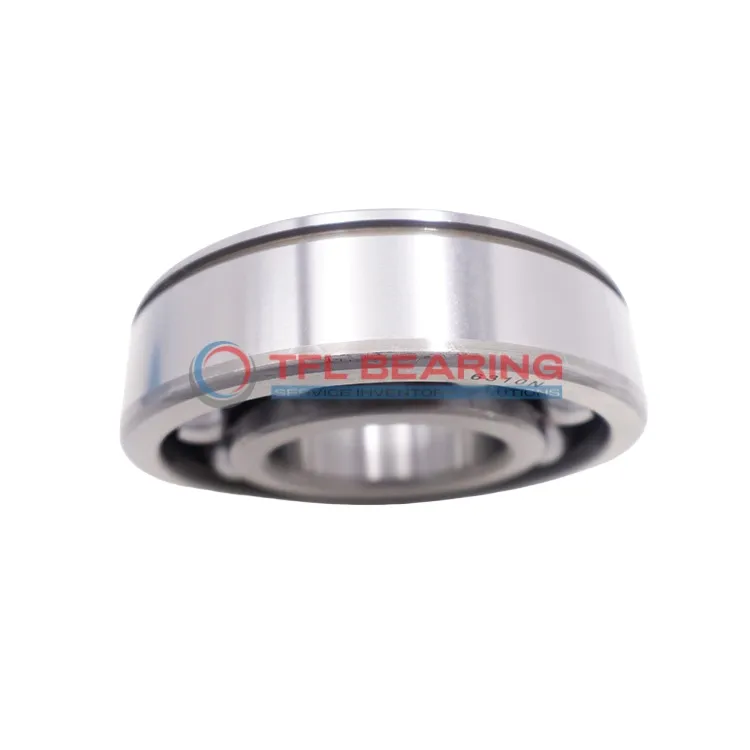

Snap Ring Groove Ball Bearings 6310 N

The 6310 N is a snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 14613 lbf and operates smoothly at speeds reaching 8500 RPM.

Its snap ring groove design ensures secure placement, while the stainless steel cage enhances durability. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical solution for replacements. Suitable for machinery where radial loads and precise positioning are key, such as pumps or electric motors.

Weighing 1.07kg, it balances strength with manageable size. Compliant with REACH standards for safe usage.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6310 N
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.01mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.013mm to 0
Width 27 mm
Width Tolerance -0.12mm to 0
Outside Diameter Of Snap Ring 110 mm
Width Of Snap Ring 2.7 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Locating Feature Bearing Outer Ring Snap Ring Groove
Tolerance Class P6
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 14613 lbf
Static Radial Load 8543 lbf
Temperature Range -30° to 120 °C
REACH Compliant
Max Speed 8500 rpm
Weight 1.07 kg

Snap Ring Groove Ball Bearings 6310 N dimension drawing

Download DWG Download PDF

Features

How Does 6310 N Bearing Reduce Friction?

6310 N Bearing features chrome steel rings and balls, designed to minimise friction during operation.
The single-row construction ensures smooth radial load distribution, enhancing efficiency.

With a dynamic radial load capacity of 14613 lbf, it handles demanding applications effortlessly.
Its snap ring groove design simplifies installation, making it a practical choice for various setups.

The stainless steel cage maintains ball alignment, reducing wear and extending service life.
Operating at speeds up to 8,500 rpm, it balances performance and durability.

Application

Common Applications of 6310 N Bearing
6310 N Bearing is widely used in industrial machinery, especially in gearboxes and pumps where radial load support is essential. Its snap ring groove design simplifies installation and enhances stability in high-vibration environments.

In automotive applications, 6310 N Bearing fits well in wheel hubs and transmission systems, offering reliable performance under heavy loads. The chrome steel construction ensures longevity even in demanding driving conditions.

For automation equipment, 6310 N Bearing provides smooth operation in robotic arms and conveyor belts. The open seal design allows for easy lubrication, reducing maintenance downtime.

In household appliances like washing machines, 6310 N Bearing handles moderate loads with quiet efficiency. Its metric sizing makes it compatible with a variety of European and Asian models.

Medical devices such as centrifuges benefit from 6310 N Bearing’s precision and durability. The stainless steel cage adds corrosion resistance, ideal for sterile environments.
