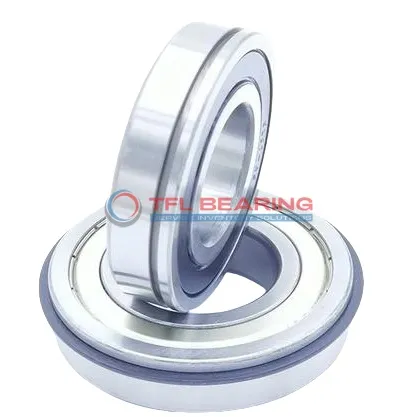

Snap Ring Groove Ball Bearings 6308-ZN/C3

Snap Ring Groove Ball Bearings 6308-ZN/C3

The 6308-ZN/C3 is a shielded ball bearing with a 40mm bore and 90mm outer diameter, designed for radial loads. It handles dynamic loads up to 915 lbf and spins smoothly at speeds up to 7500 RPM.

Made from durable chrome steel, it features a snap ring groove for secure mounting. The C3 radial clearance allows for slight thermal expansion, making it suitable for varying temperatures.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or pumps where radial loads are common.

Weighing 620g, it’s robust yet manageable. Compliant with RoHS and REACH standards, it operates in temperatures from -30°C to 120°C.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6308-ZN/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 40 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 23 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 90 mm
  • Width Of Snap Ring 2.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 915 lbf
  • Static Radial Load 5395 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 620 g
  • Price（$） 14.18
Snap Ring Groove Ball Bearings 6308-ZN/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6308-ZN/C3 Bearing Reduce Friction?

6308-ZN/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants, maintaining performance in various environments.
The snap ring groove on the outer ring provides secure positioning, enhancing stability during use.
With a maximum speed of 7,500 rpm, it offers reliable performance for radial load applications.

Application

Industrial Uses of 6308-ZN/C3 Bearing
The 6308-ZN/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its shielded design helps keep contaminants out. Its snap ring groove feature simplifies installation in housings, saving time during assembly.

What Makes 6308-ZN/C3 Bearing a Preferred Choice?
In automotive applications, 6308-ZN/C3 Bearing works well in wheel hubs and transmissions due to its radial load capacity. The C3 clearance ensures reliable performance even under varying thermal conditions.

Perfect Fit for Automation: 6308-ZN/C3 Bearing
This bearing suits robotic arms and conveyor systems, where its chrome steel construction offers durability. The metric sizing makes it compatible with a wide range of European and Asian equipment.

Medical vs Industrial: Where 6308-ZN/C3 Bearing Excels
While not typically used in medical devices, 6308-ZN/C3 Bearing shines in industrial settings like food processing equipment. Its easy maintenance and robust design make it a practical choice for demanding environments.
