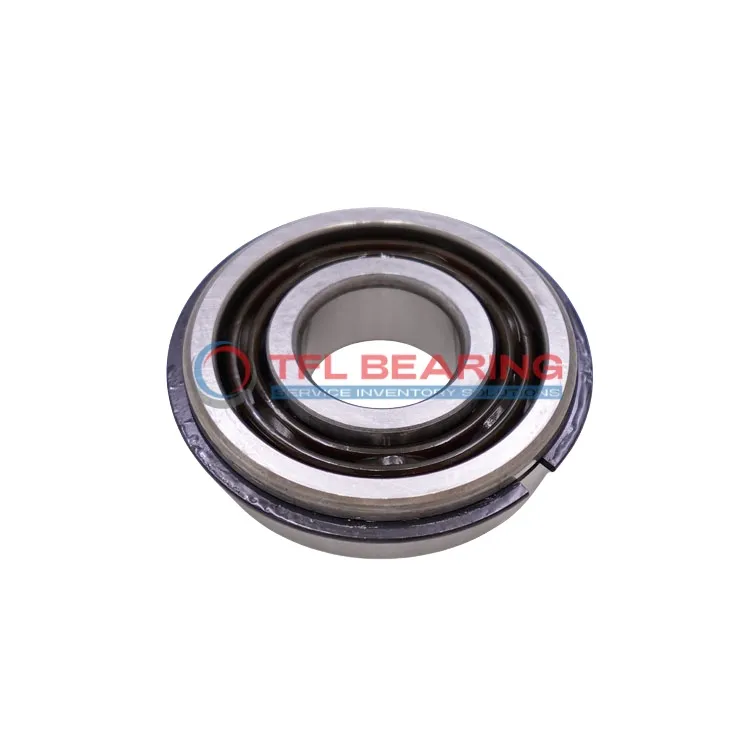

Snap Ring Groove Ball Bearings 6307ANR

Snap Ring Groove Ball Bearings 6307ANR

The 6307ANR is a snap ring groove ball bearing with a 35mm bore and 80mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 7509 lbf and operates smoothly at speeds up to 8500 RPM.

Its open design and snap ring feature ensure easy installation and secure positioning in housings. The chrome steel cage enhances durability, making it suitable for demanding environments.

This bearing works well in temperatures ranging from -30°C to 120°C, fitting applications like electric motors or pumps. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 457g, it’s a robust choice for machinery where radial load support and easy mounting are key. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6307ANR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 80 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 21 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 86.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7509 lbf
  • Static Radial Load 4339 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 8500 rpm
  • Weight 457 g
  • Price（$） 11.84
Snap Ring Groove Ball Bearings 6307ANR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6307ANR Bearing

6307ANR Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 7509 lbf, ensuring reliable performance in various applications.
The snap ring groove design provides secure mounting, making installation straightforward.
With a maximum speed of 8,500 rpm, it balances durability and efficiency.

Application

Common Applications of 6307ANR Bearing
6307ANR Bearing is widely used in industrial machinery, especially in equipment like pumps and gearboxes where radial load support is essential. Its snap ring groove design ensures secure mounting, making it a reliable choice for high-vibration environments.

In automotive applications, 6307ANR Bearing fits well in wheel hubs and transmission systems, thanks to its durable chrome steel construction. The open seal type allows for easy lubrication, extending its service life in demanding conditions.

For automation systems, 6307ANR Bearing works efficiently in robotic arms and conveyor belts, where precision and stability are key. The ABEC 1 tolerance ensures consistent performance without unnecessary complexity.

In household appliances like washing machines, 6307ANR Bearing provides smooth operation under everyday loads. Its compact size and snap ring feature make installation straightforward for maintenance technicians.
