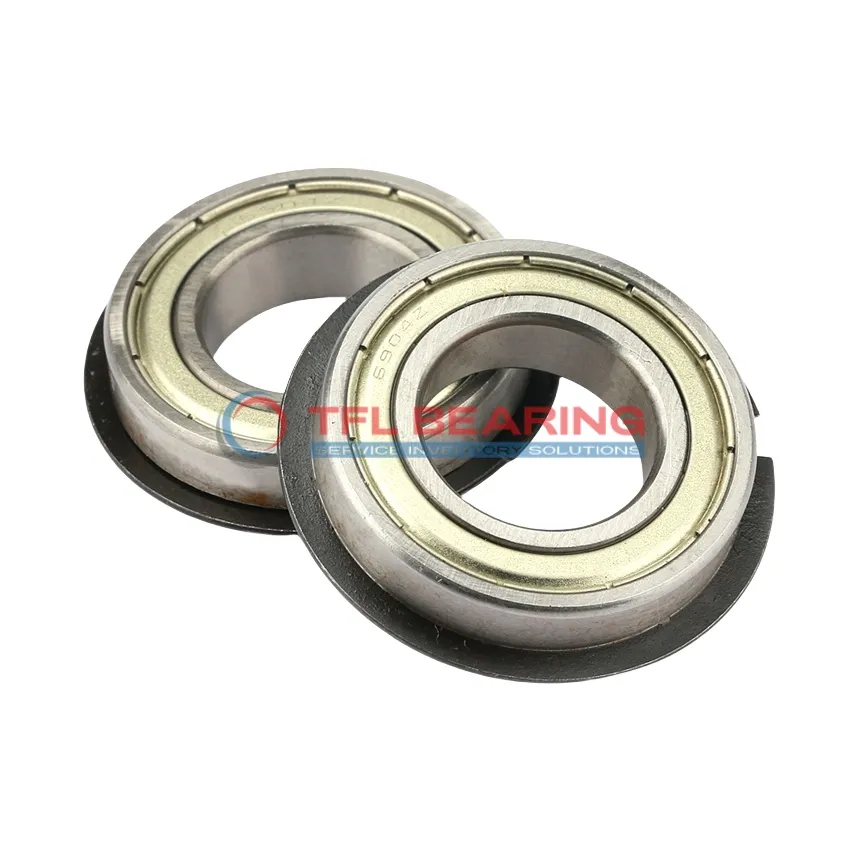

Snap Ring Groove Ball Bearings 6306-2ZNRJEM

Snap Ring Groove Ball Bearings 6306-2ZNRJEM

The 6306-2ZNRJEM is a shielded ball bearing with a 30mm bore and 72mm outer diameter, designed for radial loads. It handles dynamic loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Made from durable chrome steel, this bearing features a snap ring groove for secure mounting. Its shielded design helps keep dirt out while maintaining easy access for lubrication.

With a temperature range of -30°C to 120°C, it’s suitable for various industrial environments. The bearing is interchangeable with SKF models, making replacements straightforward.

Weighing 346g, it’s a robust choice for applications like electric motors or gearboxes where reliable radial load support is needed. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 78.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9600 rpm
  • Weight 346 g
  • Price（$） 10.63
Snap Ring Groove Ball Bearings 6306-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2ZNRJEM Bearing

6306-2ZNRJEM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6002 lbf, ensuring reliable performance in various applications.

The shielded design of 6306-2ZNRJEM Bearing protects against contaminants, extending its service life.
With a maximum speed of 9,600 rpm, it balances durability and efficiency for smooth operation.

6306-2ZNRJEM Bearing’s snap ring feature ensures secure mounting, reducing the risk of misalignment.
Its temperature range of -30° to 120°C makes it suitable for diverse working environments.

The chrome steel cage in 6306-2ZNRJEM Bearing keeps the balls aligned, minimising wear and tear.
This design also helps maintain consistent performance under varying load conditions.

Application

Industrial Uses of 6306-2ZNRJEM Bearing
6306-2ZNRJEM Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep out dust and debris.
The snap ring feature ensures secure mounting, making it a reliable choice for machinery that requires frequent maintenance.

Where Is 6306-2ZNRJEM Bearing Used?
In automotive applications, 6306-2ZNRJEM Bearing fits well in electric motors and gearboxes, providing smooth radial load support.
Its chrome steel construction offers durability, even under continuous use in demanding conditions.

Built for Heavy-Duty Use: 6306-2ZNRJEM Bearing
This bearing works efficiently in agricultural equipment, handling heavy loads with ease.
The ABEC 1 tolerance ensures consistent performance, making it suitable for a variety of industrial settings.

Automotive vs Industrial: Applications of 6306-2ZNRJEM Bearing
In cars, 6306-2ZNRJEM Bearing supports components like alternators and water pumps, ensuring reliable operation.
For factory machinery, its snap ring design simplifies installation, reducing downtime during repairs.

Perfect Fit for Automation: 6306-2ZNRJEM Bearing
Robotic arms often use 6306-2ZNRJEM Bearing for its precise radial load handling and shielded protection.
The metric sizing makes it compatible with a wide range of automated systems, from assembly lines to packaging machines.
