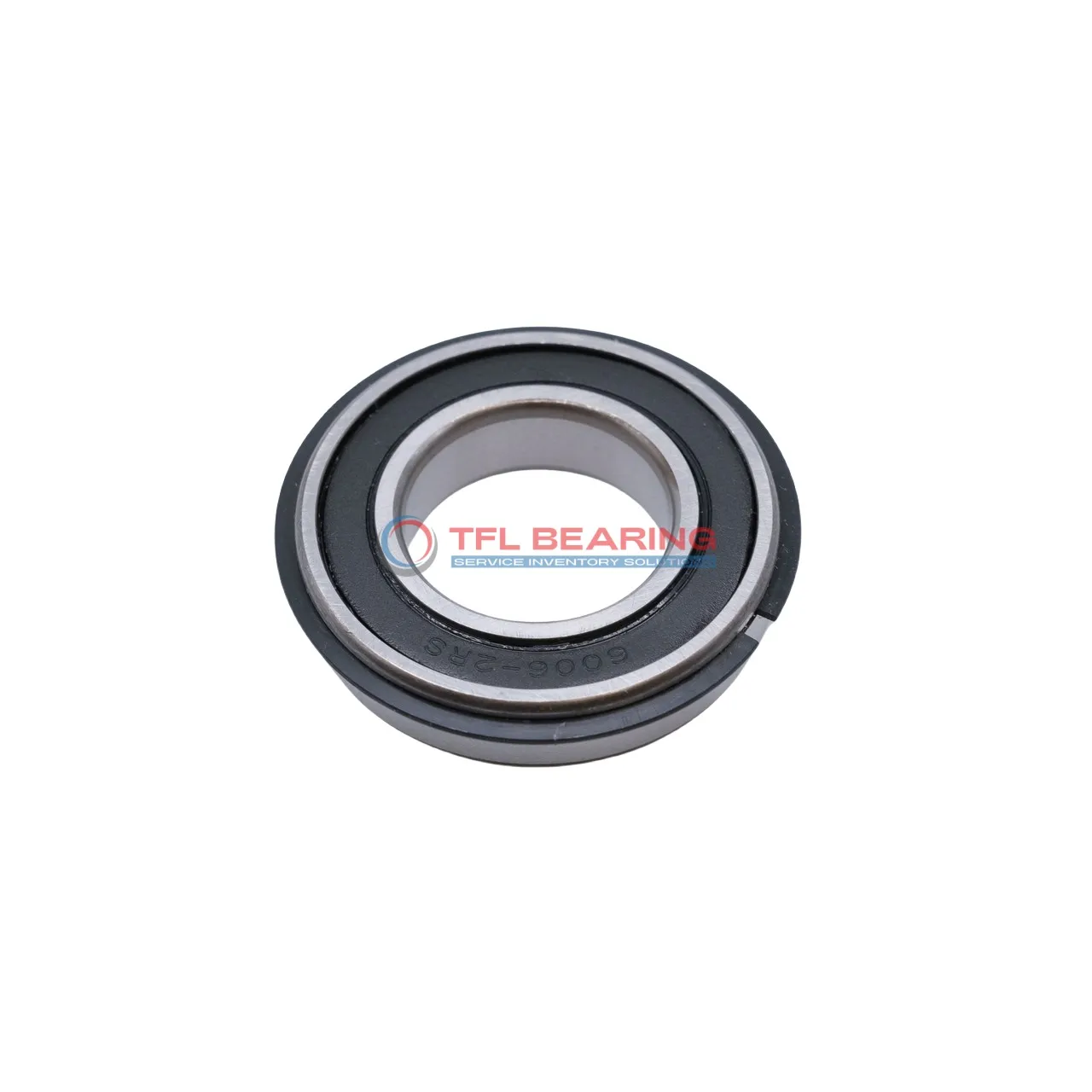

Snap Ring Groove Ball Bearings 6306-2RSNR

Snap Ring Groove Ball Bearings 6306-2RSNR

The 6306-2RSNR is a sealed ball bearing with a 30mm bore and 72mm outer diameter, designed for radial loads. It handles dynamic loads up to 6002 lbf and operates smoothly at speeds up to 9600 RPM.

Made from durable chrome steel, this bearing features a snap ring groove for secure outer ring mounting. Its sealed design keeps contaminants out, reducing maintenance needs.

With a temperature range of -30°C to 120°C, it’s suitable for various environments. The bearing is interchangeable with SKF models, making replacements straightforward.

Ideal for applications like electric motors or conveyor systems where reliable radial load support is needed. Weighing 346g, it offers robust performance in a compact size. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6306-2RSNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 78.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6002 lbf
  • Static Radial Load 3372 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9600 rpm
  • Weight 346 g
  • Price（$） 11.26
Snap Ring Groove Ball Bearings 6306-2RSNR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6306-2RSNR Bearing

6306-2RSNR Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6002 lbf, ensuring reliable performance in various applications.

The sealed design of 6306-2RSNR Bearing protects against dust and moisture, extending its service life.
With a maximum speed of 9,600 rpm, it balances durability and efficiency for smooth operation.

6306-2RSNR Bearing features a snap ring groove for easy installation and secure positioning.
Its chrome steel cage maintains ball alignment, reducing wear and enhancing longevity.

The temperature range of -30° to 120°C makes 6306-2RSNR Bearing suitable for diverse environments.
Its compact design and precise tolerances ensure consistent performance in tight spaces.

Application

Common Applications of 6306-2RSNR Bearing
In industrial settings, 6306-2RSNR Bearing is frequently used in conveyor systems and electric motors, where its sealed design helps keep out dust and debris. The snap ring feature ensures secure mounting, reducing the risk of slippage during operation.

How Does 6306-2RSNR Bearing Improve Performance?
For automotive applications like alternators and water pumps, 6306-2RSNR Bearing offers reliable radial load support with minimal maintenance. Its chrome steel construction provides durability, even in high-temperature environments.

Ideal for Precision: 6306-2RSNR Bearing
In medical devices such as lab centrifuges, 6306-2RSNR Bearing’s consistent performance and low noise make it a dependable choice. The sealed design also helps maintain hygiene by preventing contamination.

Automotive vs Industrial: Where 6306-2RSNR Bearing Excels
While 6306-2RSNR Bearing performs well in car transmissions, it’s equally effective in factory machinery like gearboxes. Its versatility comes from the balanced combination of load capacity and speed tolerance.

Practical Applications of 6306-2RSNR Bearing
For home appliances like washing machines, 6306-2RSNR Bearing ensures smooth rotation with its sealed construction. The snap ring groove simplifies installation, making it a favourite for DIY repairs.
