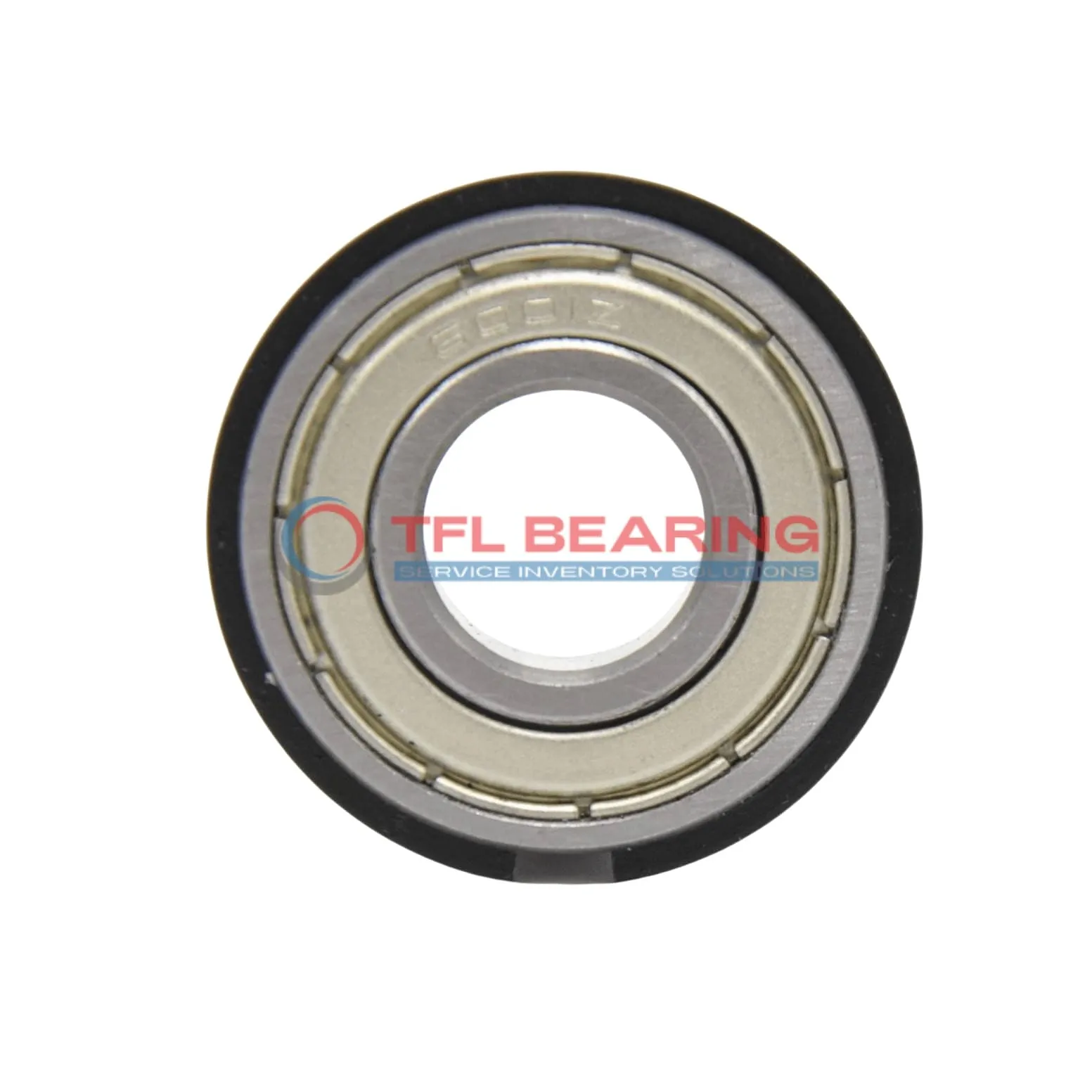

Snap Ring Groove Ball Bearings 6305-ZNR/C3

Snap Ring Groove Ball Bearings 6305-ZNR/C3

The 6305-ZNR/C3 is a shielded ball bearing with a 25mm bore and 62mm outer diameter, designed for radial loads. Its compact 17mm width makes it suitable for tight spaces, while the snap ring groove ensures secure fitting.

Made from durable chrome steel, it handles dynamic radial loads up to 4631 lbf and spins smoothly at 11,000 RPM. The C3 clearance allows for thermal expansion, ideal for varying temperatures from -30°C to 120°C.

The shielded design keeps contaminants out, reducing maintenance needs. It’s interchangeable with SKF bearings, offering a reliable replacement option for industrial machinery or automotive applications.

Weighing 232g, it’s lightweight yet robust. Compliant with RoHS and REACH standards, it’s a safe choice for various environments. The snap ring feature adds stability in high-vibration settings.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 232 g
  • Price（$） 6.41
Snap Ring Groove Ball Bearings 6305-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6305-ZNR/C3 Bearing Reduce Friction?

6305-ZNR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design helps keep contaminants out, maintaining consistent performance over time.

The snap ring groove on the outer ring provides secure mounting, reducing vibration and wear.
With a dynamic radial load capacity of 4631 lbf, it handles demanding radial loads efficiently.

6305-ZNR/C3 Bearing operates at speeds up to 11,000 rpm, balancing speed and durability.
Its C3 radial clearance allows for thermal expansion, ensuring reliable performance in varying temperatures.

Application

Common Applications of 6305-ZNR/C3 Bearing
In industrial settings, 6305-ZNR/C3 Bearing is widely used in conveyor systems and electric motors, thanks to its shielded design that keeps contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6305-ZNR/C3 Bearing Used?
You’ll often find 6305-ZNR/C3 Bearing in automotive applications like alternators and water pumps, where its radial load capacity and C3 clearance provide reliable performance. The chrome steel construction also handles high temperatures well.

Built for Heavy-Duty Use: 6305-ZNR/C3 Bearing
For robotics and automation, 6305-ZNR/C3 Bearing offers smooth operation in robotic arms and linear actuators. Its snap ring groove simplifies installation, saving time during assembly.

Automotive vs Industrial: Applications of 6305-ZNR/C3 Bearing
In automotive gearboxes, 6305-ZNR/C3 Bearing handles radial loads efficiently, while in industrial fans, its shielded design extends service life. The metric sizing ensures compatibility across various machinery.

Perfect Fit for Automation: 6305-ZNR/C3 Bearing
6305-ZNR/C3 Bearing works well in 3D printers and CNC machines, where precision and durability are key. The C3 clearance allows for slight thermal expansion, ensuring consistent performance.
