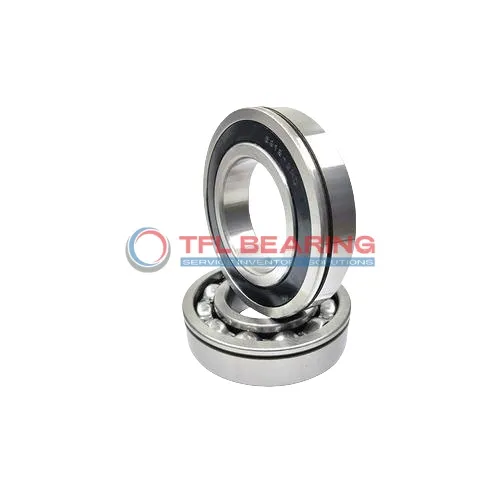

Snap Ring Groove Ball Bearings 6305-ZN

Snap Ring Groove Ball Bearings 6305-ZN

The 6305-ZN is a shielded ball bearing with a 25mm bore and 62mm outer diameter, compact at just 17mm wide. Made from chrome steel, it offers reliable radial load handling up to 4631 lbf.
Its snap ring groove design ensures secure fitting, while the shielded construction keeps dirt out for smoother operation. The bearing can reach speeds up to 11000 RPM and works in temperatures from -30°C to 120°C.
This model is interchangeable with SKF bearings, making replacements straightforward. Ideal for electric motors or machinery where space is limited but performance is key.
Weighing 232g, it’s lightweight yet durable, and compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6305-ZN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 62 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4631 lbf
  • Static Radial Load 254 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Weight 232 g
  • Price（$） 6.11
Snap Ring Groove Ball Bearings 6305-ZN dimension drawing
Download DWG Download PDF

Features

Why Choose 6305-ZN Bearing for Precision Tasks?

6305-ZN Bearing features a shielded design with chrome steel rings and balls, ensuring smooth radial load handling.
Its dynamic radial load capacity of 4631 lbf makes it suitable for high-performance applications.

The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.
With a maximum speed of 11,000 rpm, it delivers reliable performance in various conditions.

6305-ZN Bearing operates efficiently within a temperature range of -30° to 120°C, adapting to different environments.
Its ABEC 1 tolerance class ensures consistent precision for demanding tasks.

Application

Industrial Uses of 6305-ZN Bearing
The 6305-ZN Bearing is commonly used in conveyor systems, where its shielded design helps keep out dust and debris. Its snap ring groove ensures easy installation and secure positioning in machinery.

How Does 6305-ZN Bearing Improve Performance?
In electric motors, 6305-ZN Bearing reduces friction, allowing for smoother operation and longer service life. The chrome steel construction provides good resistance to wear in high-speed applications.

Built for Heavy-Duty Use: 6305-ZN Bearing
This bearing is a reliable choice for agricultural equipment, handling radial loads with ease. The ABEC 1 tolerance ensures consistent performance in demanding environments.

Automotive vs Aerospace: Applications of 6305-ZN Bearing
In automotive gearboxes, 6305-ZN Bearing offers durability and efficient power transmission. While in aerospace, its lightweight design and reliability make it suitable for auxiliary systems.

Perfect Fit for Automation: 6305-ZN Bearing
For robotic arms, 6305-ZN Bearing provides smooth movement and precise positioning. The shielded seal helps maintain performance even in dusty industrial settings.
