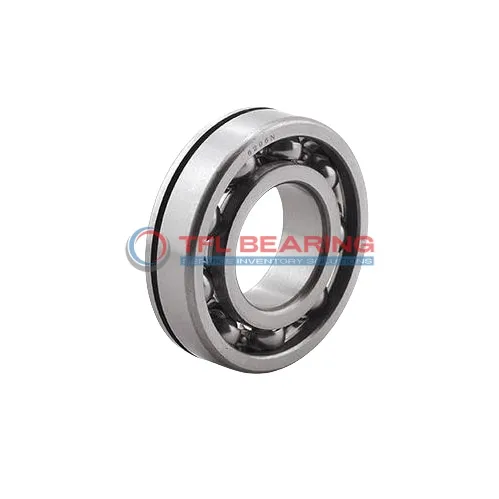

Snap Ring Groove Ball Bearings 6215 N

Snap Ring Groove Ball Bearings 6215 N

The 6215 N is a snap ring groove ball bearing with a 75mm bore and 130mm outer diameter, crafted from sturdy chrome steel for reliable performance. It handles radial loads up to 15489 lbf and operates smoothly at speeds up to 6700 RPM.

The open design and stainless steel cage ensure durability, while the snap ring groove on the outer ring provides secure mounting. This bearing works well in temperatures ranging from -30°C to 120°C.

Interchangeable with SKF bearings, it’s a practical choice for replacements in machinery. Ideal for applications like pumps or electric motors where radial loads and easy installation are key.

Weighing 1.17kg, it’s robust yet manageable for its size. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215 N
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 25 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 130 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 15489 lbf
  • Static Radial Load 11016 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 1.17 kg
  • Price（$） 36.85
Snap Ring Groove Ball Bearings 6215 N dimension drawing
Download DWG Download PDF

Features

Performance Features of 6215 N Bearing

6215 N Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 15489 lbf.
The snap ring groove design ensures secure mounting, making it suitable for applications requiring precise alignment.
Its stainless steel cage maintains ball positioning, reducing friction and wear.
With a maximum speed of 6,700 rpm, it delivers reliable performance in various industrial settings.

Application

Industrial Uses of 6215 N Bearing
The 6215 N Bearing is commonly used in heavy machinery like conveyor belts and industrial fans, where its snap ring groove ensures secure mounting. Its P6 tolerance class makes it suitable for applications requiring precise radial load handling.

In automotive systems, 6215 N Bearing fits well in gearboxes and wheel hubs, thanks to its durable chrome steel construction. The open design allows for easy lubrication, extending its service life in high-speed conditions.

For automation equipment, 6215 N Bearing provides reliable performance in robotic arms and assembly lines. The stainless steel cage enhances its resistance to wear, even in continuous operation scenarios.

What Makes 6215 N Bearing a Preferred Choice?
With its 75 mm bore and 130 mm outer diameter, 6215 N Bearing is ideal for medium to large-scale industrial applications. The snap ring groove feature simplifies installation, reducing downtime during maintenance.

In consumer electronics, 6215 N Bearing can be found in high-power fans and printers, where its smooth operation is essential. The wide temperature range ensures consistent performance in various environments.
