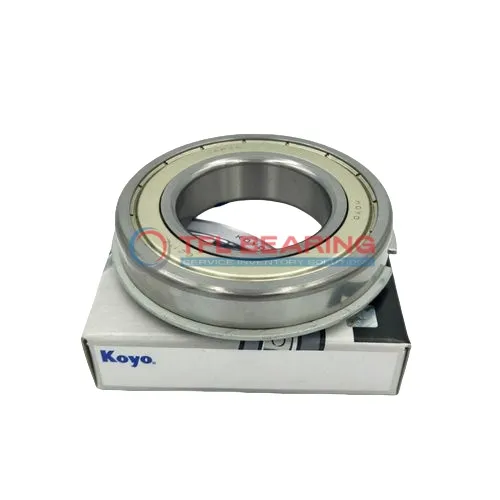

Snap Ring Groove Ball Bearings 6215-2ZNR/C3

Snap Ring Groove Ball Bearings 6215-2ZNR/C3

The 6215-2ZNR/C3 is a shielded ball bearing with a 75mm bore and 130mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 15152 lbf and runs smoothly at speeds up to 4800 RPM.

Its snap ring groove on the outer ring keeps it securely in place, while the C3 clearance allows for thermal expansion. The shielded design protects against dust and debris, extending its lifespan.

This bearing works in temperatures from -30°C to 120°C, making it suitable for varied environments. It’s interchangeable with SKF models, ideal for industrial machinery or automotive applications.

Weighing 1.17kg, it’s a robust choice for heavy-duty use. Compliant with RoHS and REACH standards for safety and environmental care.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6215-2ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 75 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 25 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 15152 lbf
  • Static Radial Load 10858 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 1170 g
  • Price（$） 42.4
Snap Ring Groove Ball Bearings 6215-2ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Is 6215-2ZNR/C3 Bearing Engineered for Reliability?

6215-2ZNR/C3 Bearing features shielded seals and snap ring grooves, enhancing its stability in radial load applications.
The chrome steel construction ensures durability, with a dynamic radial load capacity of 15152 lbf.

Its C3 radial clearance allows for thermal expansion, making it suitable for varied operating conditions.
The bearing operates smoothly at speeds up to 4,800 rpm, balancing performance and longevity.

With a temperature range of -30°C to 120°C, 6215-2ZNR/C3 Bearing adapts to diverse environments.
The snap ring design simplifies installation, reducing setup time and maintenance efforts.

Application

Industrial Uses of 6215-2ZNR/C3 Bearing
6215-2ZNR/C3 Bearing is commonly used in industrial machinery, especially in conveyor systems and gearboxes, where its shielded design helps keep contaminants out. The snap ring feature ensures easy installation and secure positioning in housings.

What Makes 6215-2ZNR/C3 Bearing a Preferred Choice?
In automotive applications, 6215-2ZNR/C3 Bearing is often found in wheel hubs and transmissions, thanks to its radial load capacity and durability. The C3 clearance allows for thermal expansion, making it suitable for varying temperatures.

Perfect Fit for Automation: 6215-2ZNR/C3 Bearing
For robotics and automated systems, 6215-2ZNR/C3 Bearing provides smooth rotation and reliable performance in robotic arms and linear actuators. Its chrome steel construction ensures long service life even in high-cycle operations.

Medical vs Industrial: Where 6215-2ZNR/C3 Bearing Excels
While 6215-2ZNR/C3 Bearing is robust enough for industrial pumps and compressors, its precision also makes it suitable for medical imaging devices. The shielded design prevents lubricant contamination, which is critical in sterile environments.

Essential Roles of 6215-2ZNR/C3 Bearing
In household appliances like washing machines, 6215-2ZNR/C3 Bearing offers quiet operation and resistance to moisture. The snap ring simplifies maintenance, reducing downtime for repairs.
