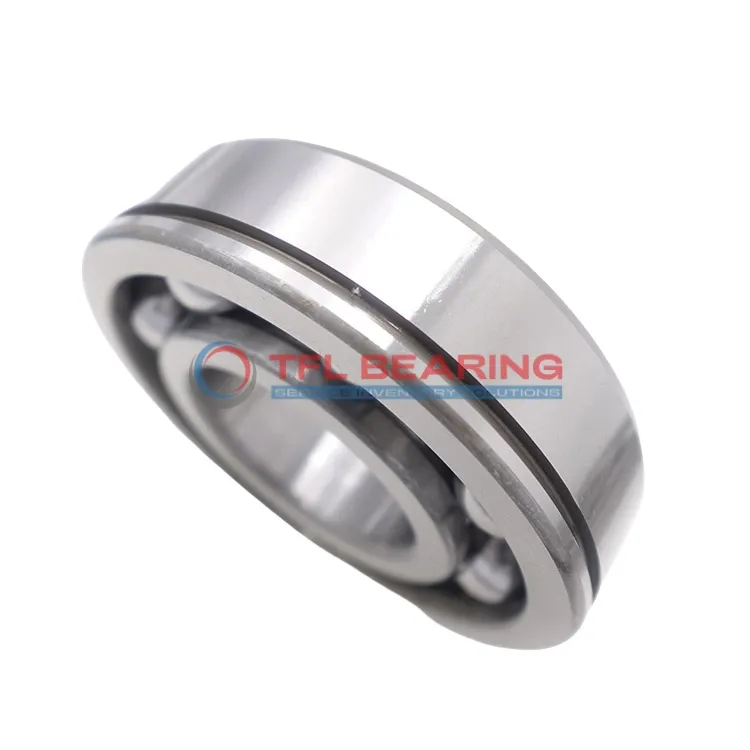

Snap Ring Groove Ball Bearings 6213 N

Snap Ring Groove Ball Bearings 6213 N

The 6213 N is a snap ring groove ball bearing with a 65mm bore and 120mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 13151 lbf and operates smoothly at speeds up to 7500 RPM.

Its open design allows for easy lubrication, while the stainless steel cage ensures durability. The snap ring groove on the outer ring helps secure the bearing in place, making installation straightforward.

This model is interchangeable with SKF bearings, offering a reliable replacement option. It works well in temperatures from -30°C to 120°C, suitable for industrial machinery or automotive applications.

Weighing 1kg, it’s a robust choice for radial load scenarios. Compliant with REACH standards, it’s a safe and dependable component for various mechanical setups.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6213 N
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 120 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 23 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 120 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class P6
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 13151 lbf
  • Static Radial Load 9105 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 7500 rpm
  • Weight 1 kg
  • Price（$） 19.15
Snap Ring Groove Ball Bearings 6213 N dimension drawing
Download DWG Download PDF

Features

How Does 6213 N Bearing Reduce Friction?

6213 N Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
The snap ring groove design provides secure positioning, reducing unnecessary movement and wear.
With a dynamic radial load capacity of 13151 lbf, it handles heavy loads efficiently.
Its stainless steel cage maintains ball alignment, enhancing durability and performance.
The bearing operates smoothly at speeds up to 7,500 rpm, making it suitable for various applications.

Application

Common Applications of 6213 N Bearing
In industrial settings, 6213 N Bearing is widely used in electric motors and pumps due to its reliable radial load capacity and snap ring groove for secure mounting. The open design simplifies lubrication, extending service life in demanding conditions.

Where Is 6213 N Bearing Used?
You’ll often find 6213 N Bearing in automotive applications like alternators and transmission systems, where its P6 tolerance ensures precise alignment. The chrome steel construction handles high speeds without compromising durability.

Built for Heavy-Duty Use: 6213 N Bearing
This bearing excels in conveyor systems and agricultural machinery, where its static radial load capacity supports heavy equipment. The stainless steel cage adds corrosion resistance, ideal for harsh environments.

Automotive vs Industrial: Applications of 6213 N Bearing
While 6213 N Bearing fits well in vehicle components, it’s equally effective in industrial gearboxes, thanks to its balanced performance. The snap ring groove provides easy installation in tight spaces.

Perfect Fit for Automation: 6213 N Bearing
In robotic arms and assembly line equipment, 6213 N Bearing offers smooth rotation with minimal maintenance. Its metric sizing ensures compatibility with standard European machinery designs.
