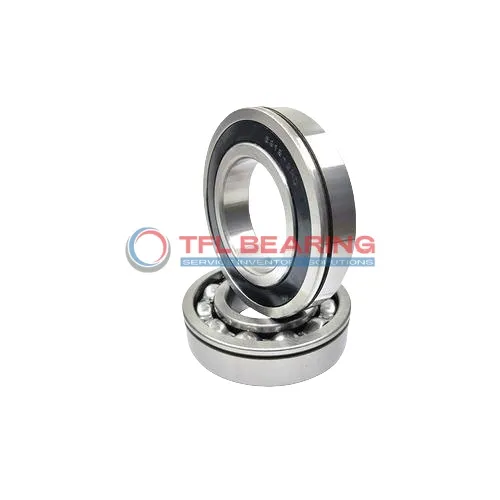

Snap Ring Groove Ball Bearings 6212-RSN

The 6212-RSN is a sealed, single-row ball bearing with a 60mm bore and 110mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 1178 lbf and operates smoothly at speeds up to 5600 RPM.

Its snap ring groove design ensures secure fitting, while the sealed construction keeps dirt out for longer service life. The bearing works in temperatures from -30°C to 120°C, making it versatile for various environments.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for machinery like pumps or electric motors where radial loads and secure mounting are key.

Weighing 762g, it’s sturdy yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for industrial applications.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6212-RSN
Brand TFL
Interchangeable SKF
Bore Dia 60 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 22 mm
Width Tolerance -0.150mm to 0
Outside Diameter Of Snap Ring 110 mm
Width Of Snap Ring 2.7 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Sealed
Locating Feature Bearing Outer Ring Snap Ring Groove
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 1178 lbf
Static Radial Load 8138 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 5600 rpm
Weight 762 g
Price（$） 23.8

Snap Ring Groove Ball Bearings 6212-RSN dimension drawing

Download DWG Download PDF

Features

How Does 6212-RSN Bearing Reduce Friction?

6212-RSN Bearing features a sealed design, which helps to keep contaminants out and lubrication in.
This reduces friction and ensures smooth operation even under radial loads.

The chrome steel construction of 6212-RSN Bearing enhances durability and resistance to wear.
Its dynamic radial load capacity of 1178 lbf makes it suitable for various industrial applications.

With a maximum speed of 5,600 rpm, 6212-RSN Bearing balances performance and longevity.
The snap ring groove design simplifies installation, saving time and effort.

6212-RSN Bearing operates efficiently in temperatures ranging from -30°C to 120°C.
Its sealed construction minimises maintenance needs, reducing operational costs.

Application

Industrial Uses of 6212-RSN Bearing
6212-RSN Bearing is commonly used in industrial machinery like pumps and electric motors, where its sealed design helps keep contaminants out. The snap ring groove feature makes installation and positioning straightforward in tight spaces.

Where Is 6212-RSN Bearing Used?
You’ll often find 6212-RSN Bearing in automotive applications such as alternators and transmissions, where its radial load capacity ensures reliable performance. The chrome steel construction also handles high-speed rotations well.

Optimized for Performance: 6212-RSN Bearing
In automation systems, 6212-RSN Bearing works smoothly in robotic arms and conveyor belts, thanks to its consistent load distribution. The sealed design reduces maintenance needs, making it a practical choice for busy production lines.

Light-Duty vs Heavy-Duty: Best Uses for 6212-RSN Bearing
For light-duty tasks like household appliances, 6212-RSN Bearing offers quiet operation and longevity. In heavier industrial settings, its robust build handles radial loads without compromising efficiency.
