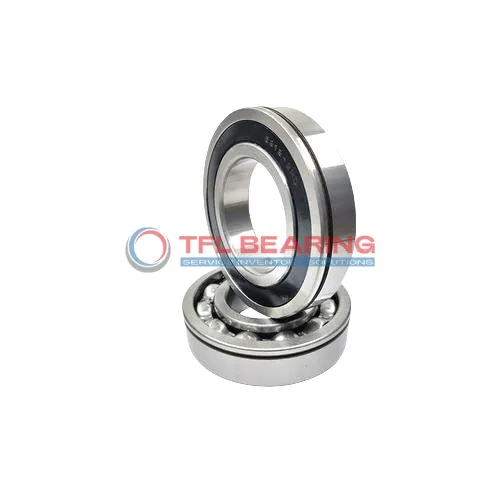

Snap Ring Groove Ball Bearings 6210-ZN

Snap Ring Groove Ball Bearings 6210-ZN

The 6210-ZN is a shielded snap ring groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 7891 lbf and operates smoothly at speeds up to 7100 RPM.

Its single-row design with a snap ring groove ensures secure fitting, while the shielded seal keeps dirt out. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

Weighing 463g, it offers a good balance of strength and lightweight design. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6210-ZN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 50 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 20 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 90 mm
  • Width Of Snap Ring 2.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7891 lbf
  • Static Radial Load 5238 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7100 rpm
  • Weight 463 g
  • Price（$） 15
Snap Ring Groove Ball Bearings 6210-ZN dimension drawing
Download DWG Download PDF

Features

How Does 6210-ZN Bearing Reduce Friction?

6210-ZN Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its shielded design protects against contaminants, maintaining performance in various conditions.

The snap ring groove on the outer ring simplifies installation and enhances stability.
With a dynamic radial load capacity of 7891 lbf, it handles demanding applications reliably.

6210-ZN Bearing operates efficiently at speeds up to 7,100 rpm, balancing durability and performance.
Its temperature range of -30°C to 120°C makes it suitable for diverse environments.

Application

Industrial Uses of 6210-ZN Bearing
The 6210-ZN Bearing is commonly used in industrial machinery like conveyor belts and pumps, where its shielded design helps keep out dust and debris. Its snap ring groove ensures secure placement, reducing the risk of misalignment during operation.

Where Is 6210-ZN Bearing Used?
You’ll often find the 6210-ZN Bearing in automotive applications such as alternators and water pumps, thanks to its radial load capacity and durability. The chrome steel construction also makes it resistant to wear in high-speed environments.

Built for Heavy-Duty Use: 6210-ZN Bearing
In automation systems, the 6210-ZN Bearing supports robotic arms and assembly line equipment, where precision and reliability are key. Its ABEC 1 tolerance ensures smooth performance even under continuous use.

Medical vs Industrial: Where 6210-ZN Bearing Excels
While the 6210-ZN Bearing isn’t typically used in medical devices, it shines in industrial settings like electric motors and gearboxes. The shielded seals and snap ring groove make it ideal for environments where contamination is a concern.

Practical Applications of 6210-ZN Bearing
For household appliances like washing machines, the 6210-ZN Bearing offers quiet and efficient operation. Its metric sizing and compatibility with SKF models make it a versatile choice for both OEMs and replacements.
