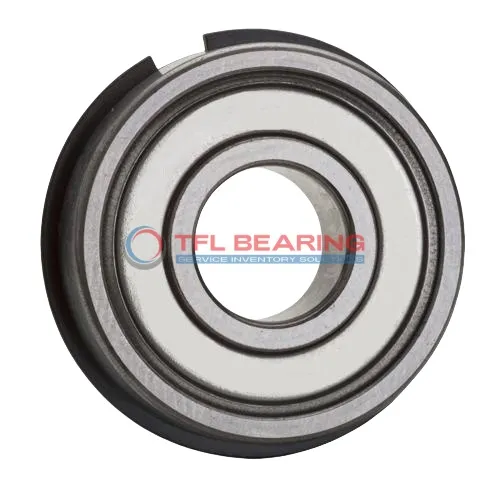

Snap Ring Groove Ball Bearings 6210-2ZNR

The 6210-2ZNR is a shielded snap ring groove ball bearing with a 50mm bore and 90mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 8340 lbf and operates smoothly at speeds up to 8000 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure fitting, making it easy to install. The stainless steel cage adds durability, and it works in temperatures from -30°C to 120°C.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for machinery like electric motors or pumps where radial loads and secure mounting are key.

Weighing 0.5kg, it’s sturdy yet manageable. Compliant with REACH standards for safe use.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6210-2ZNR
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 20 mm
Width Tolerance -0.12mm to 0
Outside Diameter Of Snap Ring 96.5 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class P0
Radial Clearance Trade No CN
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Stainless Steel
Dynamic Radial Load 8340 lbf
Static Radial Load 5216 lbf
Temperature Range -30° to 120 °C
Lubrication Grease
REACH Compliant
Max Speed 8000 rpm
Weight 0.5 kg
Price（$） 14.45

Snap Ring Groove Ball Bearings 6210-2ZNR dimension drawing

Download DWG Download PDF

Features

Why Choose 6210-2ZNR Bearing for Precision Tasks?

6210-2ZNR Bearing features shielded seals and a snap ring groove, ensuring secure positioning in radial applications.
Its chrome steel construction provides durability and resistance to wear, even under high dynamic radial loads of 8340 lbf.

The stainless steel cage maintains ball alignment, reducing friction and enhancing smooth operation.
With a maximum speed of 8,000 rpm, it delivers reliable performance in various industrial settings.

6210-2ZNR Bearing operates efficiently within a temperature range of -30° to 120°C, suitable for diverse environments.
Its grease lubrication ensures long service life with minimal maintenance required.

Application

Industrial Uses of 6210-2ZNR Bearing
6210-2ZNR Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6210-2ZNR Bearing Used?
In automotive applications, 6210-2ZNR Bearing fits well in electric motors and gearboxes, thanks to its radial load capacity. The grease lubrication ensures smooth operation even under continuous use.

Perfect Fit for Automation: 6210-2ZNR Bearing
For robotic arms and automated machinery, 6210-2ZNR Bearing offers reliable performance with its stainless steel cage. The metric sizing makes it easy to integrate into various European and Asian designs.

Medical vs Industrial: Where 6210-2ZNR Bearing Excels
While 6210-2ZNR Bearing is robust enough for industrial presses, its precision also suits medical devices like lab equipment. The chrome steel construction provides durability in both settings.

How Does 6210-2ZNR Bearing Support High-Speed Operations?
In high-speed applications like spindle drives, 6210-2ZNR Bearing maintains stability due to its balanced design. The shielded seals help retain lubrication, extending service life.
