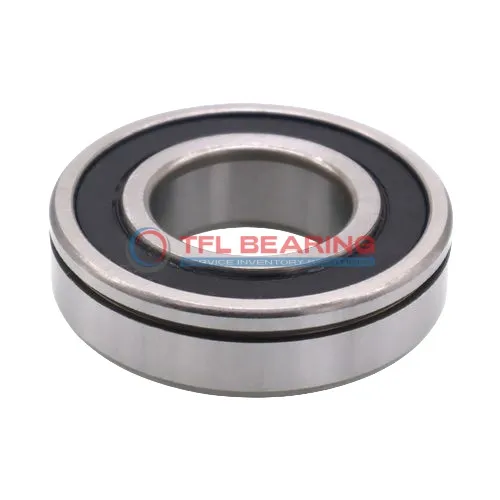

Snap Ring Groove Ball Bearings 6209-RS1NB

Snap Ring Groove Ball Bearings 6209-RS1NB

The 6209-RS1NB is a sealed snap ring groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its sealed design keeps dirt out and grease in, while the snap ring groove ensures secure mounting. The chrome steel cage adds strength and longevity, making it a reliable choice.

This bearing works well in temperatures from -30°C to 120°C and is interchangeable with SKF models. Ideal for machinery where radial loads and easy installation are key, such as electric motors or conveyor systems.

Weighing 407g, it’s a sturdy yet manageable size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-RS1NB
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 85 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Sealed
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7700 rpm
  • Weight 407 g
  • Price（$） 15.55
Snap Ring Groove Ball Bearings 6209-RS1NB dimension drawing
Download DWG Download PDF

Features

How Does 6209-RS1NB Bearing Reduce Friction?

6209-RS1NB Bearing features a sealed design, keeping contaminants out and lubrication in for smooth operation.
Its chrome steel construction ensures durability while reducing friction during radial load applications.

The snap ring groove on the outer ring provides secure mounting, enhancing stability and performance.
With a maximum speed of 7,700 rpm, it delivers reliable efficiency in various conditions.

6209-RS1NB Bearing’s single-row ball design minimises wear, extending its service life.
It operates effectively in temperatures ranging from -30°C to 120°C, suitable for diverse environments.

Application

Where Is 6209-RS1NB Bearing Used?
The 6209-RS1NB Bearing is commonly used in industrial machinery, such as pumps and gearboxes, where its sealed design helps keep contaminants out. Its snap ring groove ensures easy installation and secure positioning in tight spaces.

In automotive applications, 6209-RS1NB Bearing supports components like alternators and water pumps, providing reliable performance under radial loads. The chrome steel construction ensures durability even in demanding conditions.

For automation systems, 6209-RS1NB Bearing is a solid choice for robotic arms and conveyor belts, thanks to its smooth operation and low maintenance needs. The sealed design also makes it suitable for dusty or wet environments.

In household appliances like washing machines, 6209-RS1NB Bearing offers quiet and efficient performance. Its snap ring groove simplifies assembly, making it a practical option for manufacturers.
