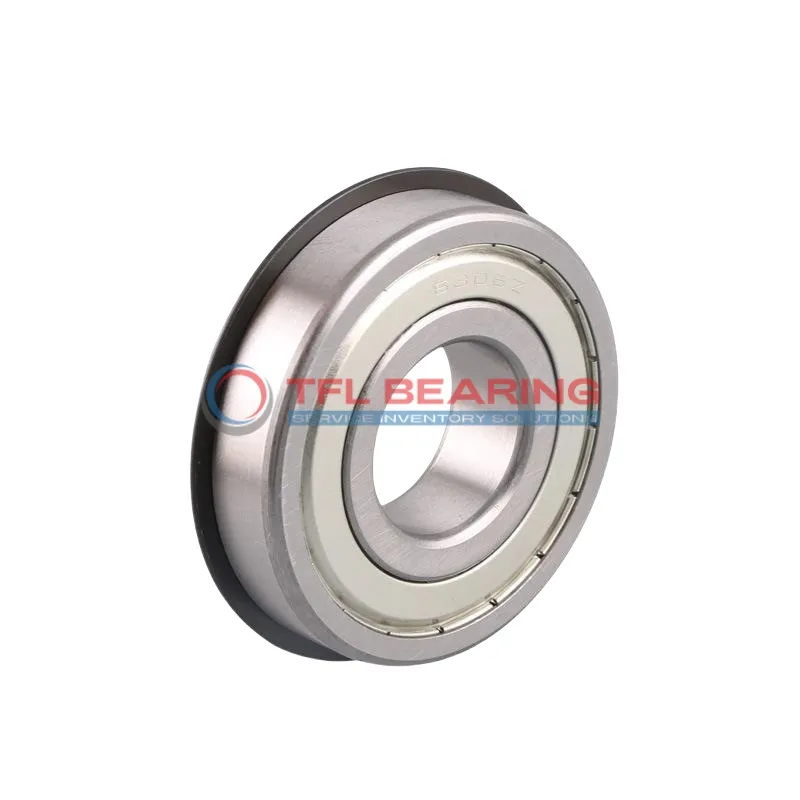

Snap Ring Groove Ball Bearings 6209-2ZNRJEM

Snap Ring Groove Ball Bearings 6209-2ZNRJEM

The 6209-2ZNRJEM is a shielded snap ring groove ball bearing with a 45mm bore and 85mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 7351 lbf and operates smoothly at speeds up to 7700 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure fitting, making installation straightforward. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for applications like electric motors or pumps where radial loads and secure mounting are key.

Weighing 407g, it’s a sturdy yet manageable choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6209-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 45 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 85 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 19 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 91.6 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 7351 lbf
  • Static Radial Load 4564 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7700 rpm
  • Weight 407 g
  • Price（$） 11.38
Snap Ring Groove Ball Bearings 6209-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

How Is 6209-2ZNRJEM Bearing Engineered for Reliability?

6209-2ZNRJEM Bearing features chrome steel rings and balls, ensuring durability under radial loads.
Its dynamic radial load capacity of 7351 lbf makes it suitable for demanding applications.

The shielded design protects against contaminants, enhancing its lifespan.
With a snap ring groove on the outer ring, it offers secure mounting and alignment.

Operating temperatures range from -30° to 120°C, accommodating various environments.
A maximum speed of 7,700 rpm ensures efficient performance in high-speed applications.

The ABEC 1 tolerance class provides reliable precision for general industrial use.
Its compact design and lightweight construction make it easy to integrate into machinery.

Application

Industrial Uses of 6209-2ZNRJEM Bearing
The 6209-2ZNRJEM Bearing is commonly used in industrial machinery, such as electric motors and pumps, where its shielded design helps keep contaminants out. Its snap ring feature ensures secure mounting, making it ideal for applications with frequent vibrations.

Where Is 6209-2ZNRJEM Bearing Used?
In automotive applications, the 6209-2ZNRJEM Bearing fits well in wheel hubs and transmissions, thanks to its radial load capacity. The chrome steel construction provides durability, even under constant use.

Perfect Fit for Automation: 6209-2ZNRJEM Bearing
For automated systems, the 6209-2ZNRJEM Bearing works smoothly in conveyor belts and robotic arms. Its ABEC 1 tolerance ensures reliable performance without unnecessary precision costs.

Medical vs Industrial: Where 6209-2ZNRJEM Bearing Excels
While the 6209-2ZNRJEM Bearing is robust enough for industrial gear, its shielded design also suits medical devices like centrifuges. The snap ring adds stability, preventing slippage during high-speed rotations.

How Does 6209-2ZNRJEM Bearing Support High-Speed Operations?
The 6209-2ZNRJEM Bearing handles high speeds well, making it a good fit for power tools and small machinery. Its temperature range allows it to perform consistently in various environments.
