Snap Ring Groove Ball Bearings 6207N/C3

Snap Ring Groove Ball Bearings 6207N/C3

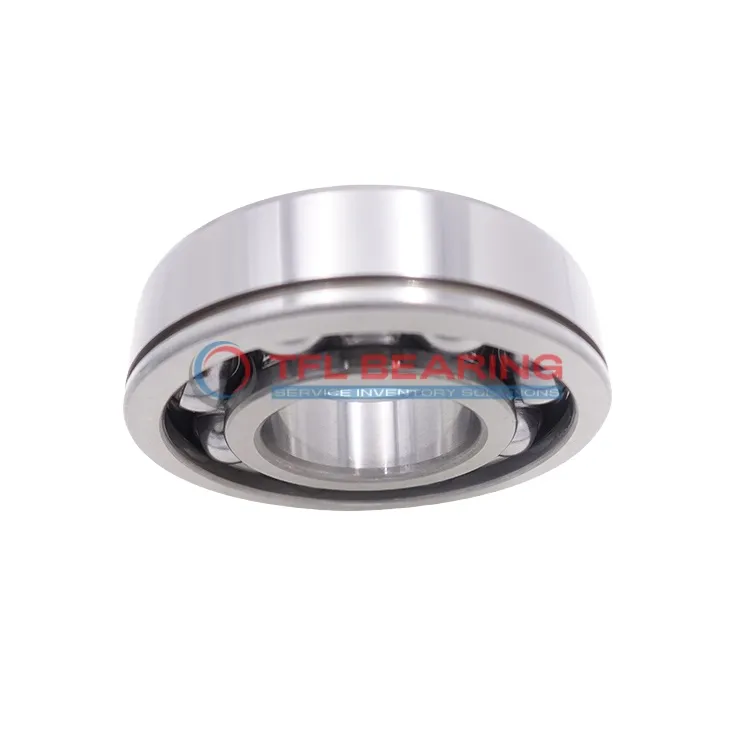

The 6207N/C3 is a snap ring groove ball bearing with a 35mm bore and 72mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 5778 lbf and spins smoothly at speeds up to 9200 RPM.

Its open design and C3 radial clearance allow for easy lubrication and thermal expansion. The snap ring groove on the outer ring helps secure it firmly in place during operation.

This bearing suits temperatures from -30°C to 120°C, making it versatile for various conditions. It’s interchangeable with SKF models, ideal for replacements in machinery or automotive applications.

With a compact width of 17mm, it fits neatly into tight spaces while offering reliable performance. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207N/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012 mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 17 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 72 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9200 rpm
  • Price（$） 9.06
Snap Ring Groove Ball Bearings 6207N/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6207N/C3 Bearing

6207N/C3 Bearing is designed with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 5778 lbf, ensuring reliable performance in various applications.

The snap ring groove on the outer ring provides secure mounting, simplifying installation and maintenance.
With a maximum speed of 9,200 rpm, it balances durability and efficiency for high-speed operations.

6207N/C3 Bearing operates smoothly in temperatures ranging from -30°C to 120°C, adapting to diverse environments.
The C3 radial clearance ensures optimal performance under varying thermal and load conditions.

Application

Industrial Uses of 6207N/C3 Bearing
The 6207N/C3 Bearing is commonly used in industrial machinery like pumps and electric motors, where its snap ring groove ensures secure outer ring positioning. Its C3 radial clearance allows for thermal expansion in high-speed applications.

Where Is 6207N/C3 Bearing Used?
You’ll often find 6207N/C3 Bearing in automotive transmissions, where its chrome steel construction handles radial loads efficiently. The open design simplifies lubrication, making it suitable for long-term use.

Built for Heavy-Duty Use: 6207N/C3 Bearing
In conveyor systems, 6207N/C3 Bearing’s robust design handles continuous operation without frequent maintenance. The snap ring groove adds stability, preventing misalignment during heavy loads.

Automotive vs Industrial: Applications of 6207N/C3 Bearing
While 6207N/C3 Bearing excels in car alternators due to its speed tolerance, it’s equally reliable in factory gearboxes. The metric sizing ensures compatibility across European and Asian equipment.

Perfect Fit for Automation: 6207N/C3 Bearing
For robotic arms, 6207N/C3 Bearing offers smooth rotation thanks to its balanced radial load capacity. The chrome steel cage reduces friction, extending service life in repetitive motions.
