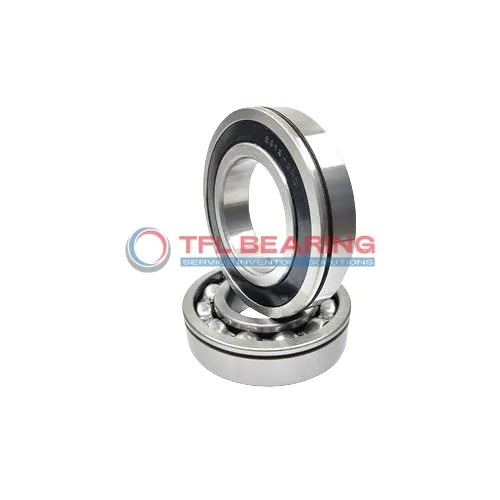

Snap Ring Groove Ball Bearings 6207-ZN/C3

Snap Ring Groove Ball Bearings 6207-ZN/C3

The 6207-ZN/C3 is a shielded ball bearing with a 35mm bore and 72mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 5778 lbf and spins smoothly at speeds up to 9200 RPM.

Its snap ring groove design ensures secure fitting, while the C3 radial clearance allows for thermal expansion. The shielded construction keeps contaminants out without needing frequent maintenance.

This bearing suits moderate to high-speed applications like electric motors or pumps. It performs reliably in temperatures from -30°C to 120°C.

Weighing 288g, it’s a compact yet robust choice. Compliant with RoHS and REACH standards, it’s interchangeable with SKF models for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6207-ZN/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012mm to 0
  • Outer Dia 72 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 17 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 72 mm
  • Width Of Snap Ring 1.9 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 5778 lbf
  • Static Radial Load 3462 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 9200 rpm
  • Weight 288 g
  • Price（$） 9.36
Snap Ring Groove Ball Bearings 6207-ZN/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6207-ZN/C3 Bearing for Precision Tasks?

6207-ZN/C3 Bearing features a shielded design, protecting against contaminants while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

With a dynamic radial load capacity of 5778 lbf, 6207-ZN/C3 Bearing handles demanding tasks with ease.
The snap ring groove on the outer ring provides secure mounting, enhancing stability during operation.

6207-ZN/C3 Bearing operates efficiently at speeds up to 9,200 rpm, balancing performance and longevity.
Its C3 radial clearance allows for thermal expansion, making it suitable for varied temperature conditions.

Application

Industrial Uses of 6207-ZN/C3 Bearing
6207-ZN/C3 Bearing is commonly used in industrial machinery like pumps and compressors, where its shielded design helps keep contaminants out. The snap ring groove feature ensures secure mounting, making it ideal for high-vibration environments.

Where Is 6207-ZN/C3 Bearing Used?
You’ll often find 6207-ZN/C3 Bearing in automotive applications such as alternators and transmission systems. Its C3 radial clearance allows for better thermal expansion handling, which is crucial in engine components.

Built for Heavy-Duty Use: 6207-ZN/C3 Bearing
This bearing works well in agricultural equipment like tractors, thanks to its chrome steel construction. The shielded seals protect against dust and debris, extending its lifespan in tough conditions.

Automotive vs Industrial: Applications of 6207-ZN/C3 Bearing
In automotive settings, 6207-ZN/C3 Bearing supports smooth rotation in wheel hubs. For industrial uses, it’s a reliable choice for conveyor systems where consistent performance is needed.

Perfect Fit for Automation: 6207-ZN/C3 Bearing
6207-ZN/C3 Bearing fits nicely in robotic arms and assembly line equipment. Its snap ring groove ensures easy installation, saving time during maintenance.
