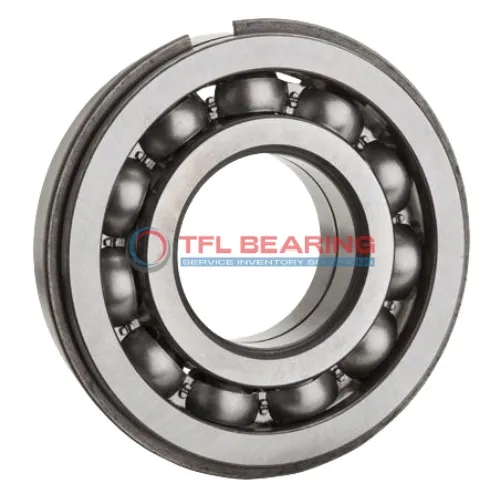

Snap Ring Groove Ball Bearings 6206 NRJEM

Snap Ring Groove Ball Bearings 6206 NRJEM

The 6206 NRJEM is a snap ring groove ball bearing with a 30mm bore and 62mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 4564 lbf and spins efficiently at speeds reaching 15,000 RPM.

Its open design and snap ring feature ensure easy installation and secure positioning in housings. The chrome steel cage adds durability, making it suitable for continuous use.

This bearing operates smoothly in temperatures from -30°C to 120°C, fitting well in various industrial settings. It’s interchangeable with SKF models, offering a reliable replacement option.

Weighing 0.2kg, it’s a compact yet robust choice for machinery like pumps or electric motors where radial loads are common. Compliant with RoHS and REACH standards for safe handling.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6206 NRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 30 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 16 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 4564 lbf
  • Static Radial Load 2518 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 0.2 kg
  • Price（$） 3.91
Snap Ring Groove Ball Bearings 6206 NRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6206 NRJEM Bearing Reduce Friction?

6206 NRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row design and snap ring groove provide secure fitting, reducing vibration and wear.
The ABEC 1 tolerance class ensures consistent performance, even at high speeds up to 15,000 rpm.
With a dynamic radial load capacity of 4564 lbf, it offers reliable performance in various applications.

Application

Common Applications of 6206 NRJEM Bearing
6206 NRJEM Bearing is widely used in industrial machinery, such as conveyor belts and electric motors, where its snap ring design ensures secure positioning. The open seal type allows for easy lubrication, making it suitable for high-speed operations.

In automotive applications, 6206 NRJEM Bearing fits well in wheel hubs and transmission systems, providing reliable radial load support. Its metric dimensions make it compatible with various vehicle models, ensuring versatility.

For automation equipment, 6206 NRJEM Bearing’s chrome steel construction offers durability in robotic arms and assembly lines. The snap ring feature adds stability, preventing misalignment during repetitive movements.

In household appliances like washing machines, 6206 NRJEM Bearing’s smooth operation reduces noise and vibration. Its robust design ensures long-lasting performance even with frequent use.

Medical devices such as centrifuges benefit from 6206 NRJEM Bearing’s precision and low maintenance requirements. The chrome steel cage enhances its resistance to wear in sterile environments.
