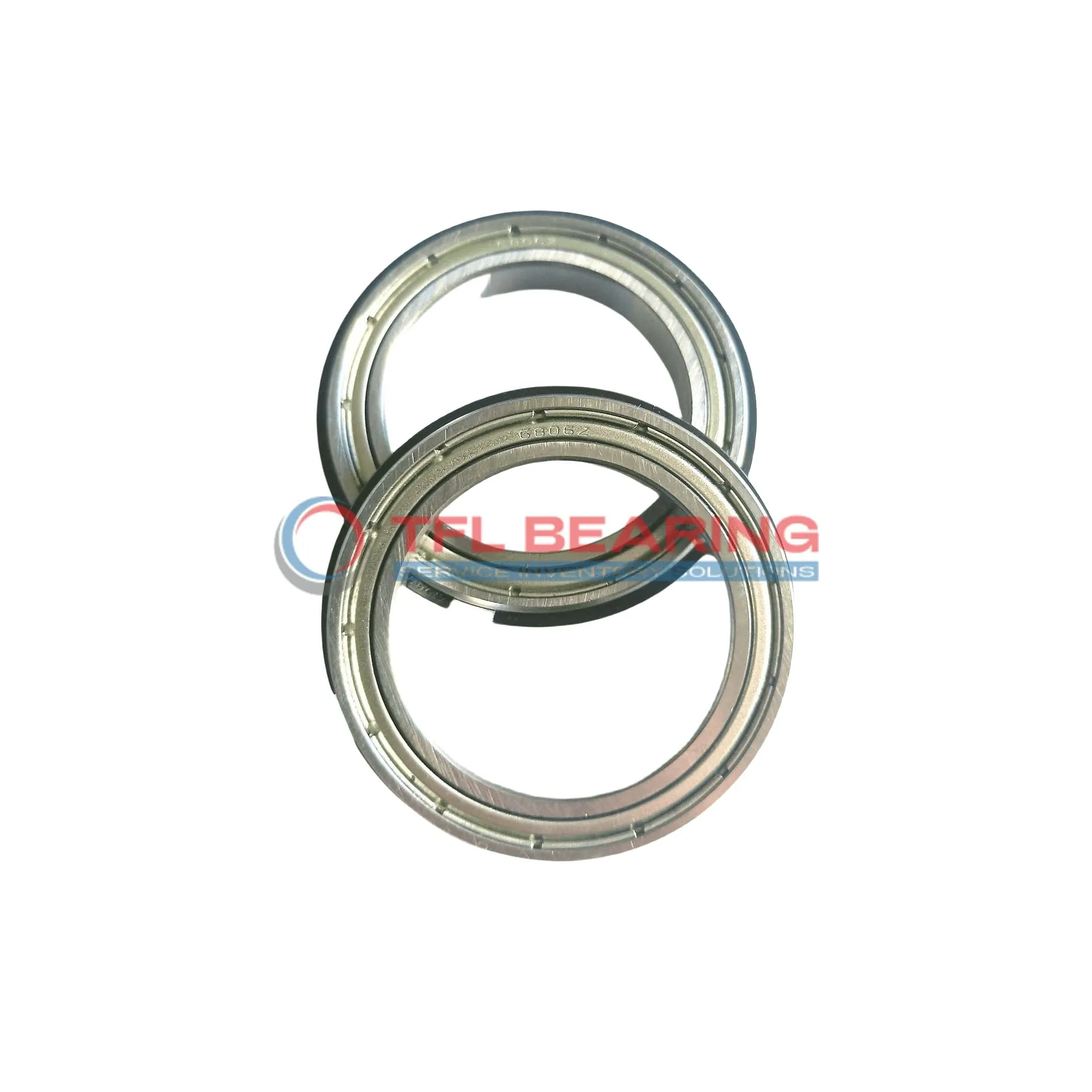

Snap Ring Groove Ball Bearings 6205-ZNRJ

Snap Ring Groove Ball Bearings 6205-ZNRJ

The 6205-ZNRJ is a shielded snap ring groove ball bearing with a 25mm bore and 52mm outer diameter, built from sturdy chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13000 RPM.

Its snap ring design keeps it securely in place, while the shielded construction protects against dust and debris. The bearing performs well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where secure mounting is needed.

Weighing just 128g, it’s lightweight yet durable. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-ZNRJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 57.9 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 128 g
  • Price（$） 7.6
Snap Ring Groove Ball Bearings 6205-ZNRJ dimension drawing
Download DWG Download PDF

Features

Performance Features of 6205-ZNRJ Bearing

6205-ZNRJ Bearing features a shielded design, protecting against dust and debris while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear, even under radial loads up to 3147 lbf.

The snap ring groove on the outer ring provides secure mounting, simplifying installation in various applications.
With a maximum speed of 13,000 rpm, it delivers reliable performance in high-speed environments.

Designed for a temperature range of -30°C to 120°C, 6205-ZNRJ Bearing adapts to diverse working conditions.
Its ABEC 1 tolerance and ISO P0 classification guarantee consistent precision and smooth operation.

Application

Common Applications of 6205-ZNRJ Bearing
6205-ZNRJ Bearing is widely used in industrial equipment like conveyor belts and electric motors, where its shielded design helps keep out dust and debris. The snap ring feature ensures easy installation and secure positioning in tight spaces.

How Does 6205-ZNRJ Bearing Improve Performance?
In automotive applications, 6205-ZNRJ Bearing enhances the efficiency of components like alternators and water pumps. Its chrome steel construction provides durability and smooth operation under radial loads.

Ideal for Precision: 6205-ZNRJ Bearing
For medical devices such as lab centrifuges, 6205-ZNRJ Bearing offers reliable performance with minimal maintenance. The shielded design also helps maintain cleanliness in sensitive environments.

Automotive vs Industrial: Applications of 6205-ZNRJ Bearing
In automotive systems, 6205-ZNRJ Bearing is commonly found in wheel hubs and transmissions. Meanwhile, in industrial settings, it supports machinery like fans and pumps with consistent performance.

Where Is 6205-ZNRJ Bearing Used?
You’ll often see 6205-ZNRJ Bearing in household appliances like washing machines and dryers. Its compact size and shielded design make it a practical choice for everyday devices.
