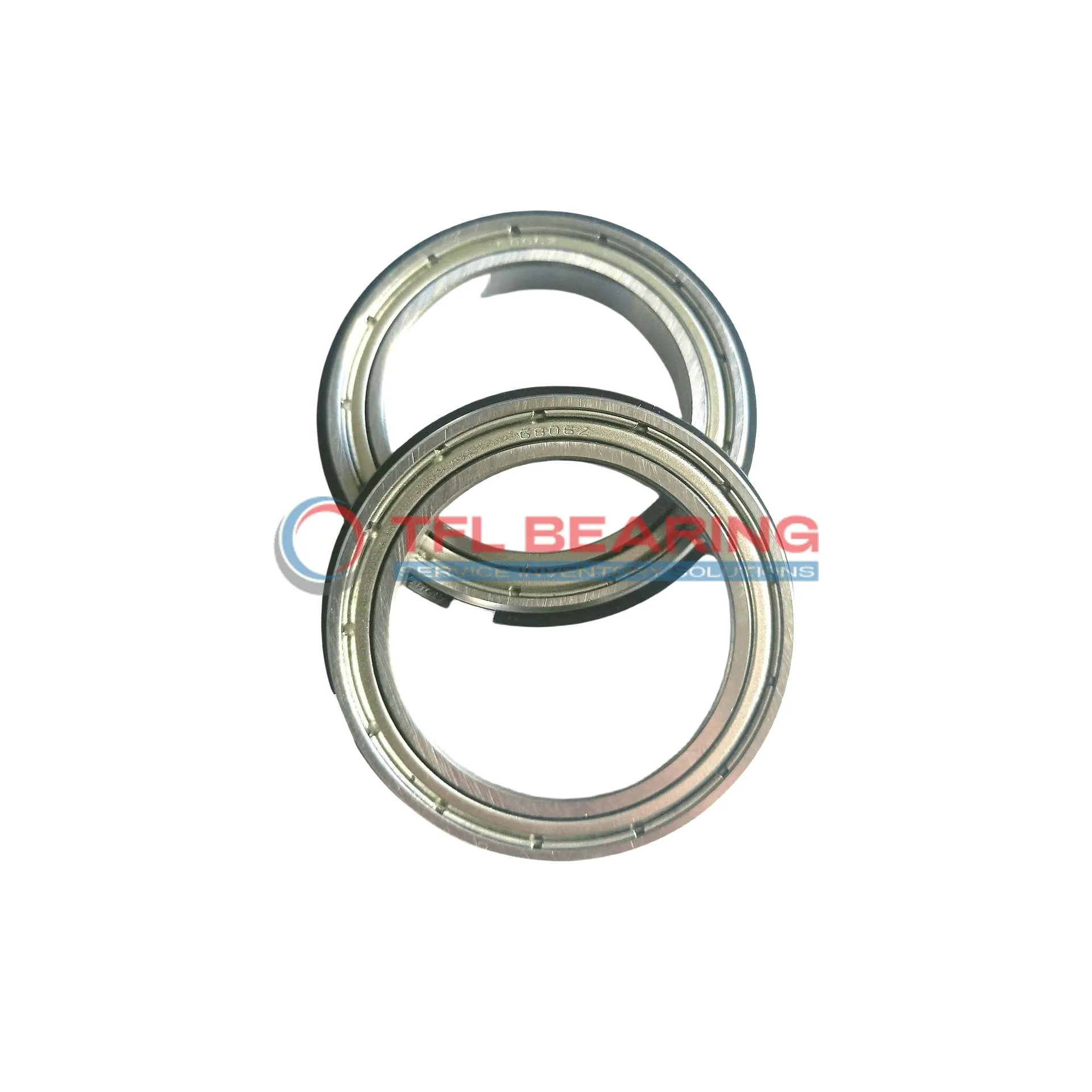

Snap Ring Groove Ball Bearings 6205-ZNR

Snap Ring Groove Ball Bearings 6205-ZNR

The 6205-ZNR is a shielded snap ring groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3327 lbf and spins smoothly at speeds up to 18,000 RPM.

Its stainless steel cage and shielded design keep dirt out while maintaining easy greasing. The snap ring feature ensures secure fitting, making installation straightforward.

Suitable for temperatures from -30°C to 120°C, this bearing is ideal for electric motors or small machinery. Weighing just 0.14kg, it’s lightweight yet robust for its size.

Interchangeable with SKF bearings, it’s a practical choice for replacements. Compliant with REACH standards, it’s safe for various industrial uses.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-ZNR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 57.9 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 3327 lbf
  • Static Radial Load 1754 lbf
  • Temperature Range -30° to 120 °C
  • Lubrication Grease
  • REACH Compliant
  • Max Speed 18000 rpm
  • Weight 0.14 kg
  • Price（$） 6.94
Snap Ring Groove Ball Bearings 6205-ZNR dimension drawing
Download DWG Download PDF

Features

Why Choose 6205-ZNR Bearing for Precision Tasks?

6205-ZNR Bearing features a shielded design, protecting against dust and debris while maintaining smooth operation.
Its chrome steel construction ensures durability and resistance to wear in radial load applications.

The snap ring groove on the outer ring provides secure mounting, reducing the risk of misalignment.
With a dynamic radial load capacity of 3327 lbf, it handles demanding tasks with ease.

6205-ZNR Bearing operates at speeds up to 18,000 rpm, making it suitable for high-performance machinery.
Its stainless steel cage enhances stability, ensuring consistent performance over time.

Application

Industrial Uses of 6205-ZNR Bearing
6205-ZNR Bearing is commonly used in conveyor systems, where its shielded design protects against dust and debris. The snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

What Makes 6205-ZNR Bearing a Preferred Choice?
In automotive applications like electric motors, 6205-ZNR Bearing offers reliable radial load support. Its grease lubrication and stainless steel cage enhance longevity, even under continuous use.

Perfect Fit for Automation: 6205-ZNR Bearing
6205-ZNR Bearing works well in robotic arms, providing smooth rotation with minimal maintenance. The metric sizing ensures compatibility with various industrial equipment across different regions.

Medical vs Industrial: Where 6205-ZNR Bearing Excels
While 6205-ZNR Bearing is sturdy enough for industrial machinery, its precision also suits medical devices like lab equipment. The chrome steel construction balances durability and performance.

Consumer Electronics and 6205-ZNR Bearing
In home appliances like washing machines, 6205-ZNR Bearing reduces noise and vibration. The shielded seals help keep out contaminants, extending the bearing’s service life.
