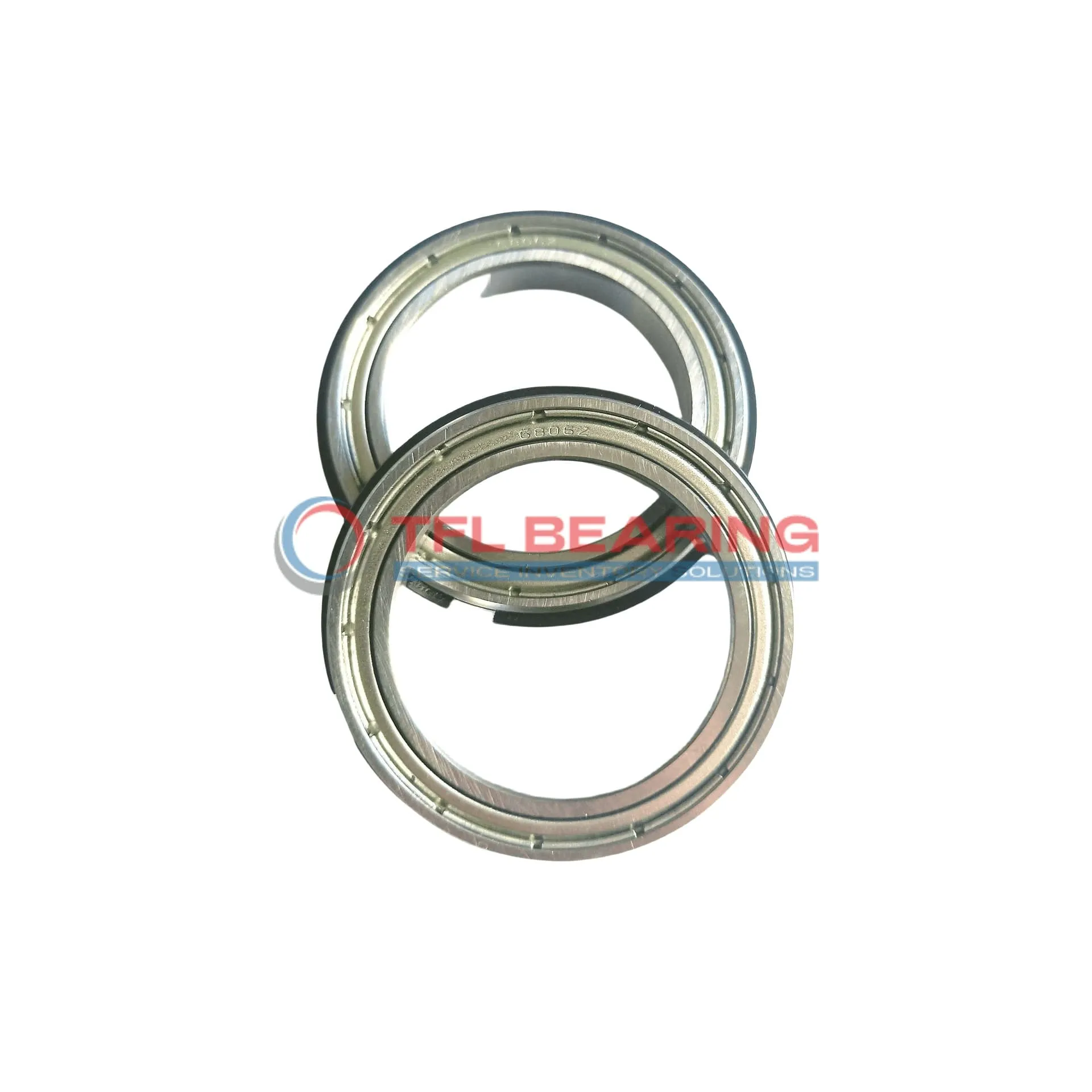

Snap Ring Groove Ball Bearings 6205-2ZNR/GJN

Snap Ring Groove Ball Bearings 6205-2ZNR/GJN

The 6205-2ZNR/GJN is a snap ring groove ball bearing with a 25mm bore and 52mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 3147 lbf and spins smoothly at speeds up to 13,000 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure fitting. The chrome steel cage adds strength, making it reliable for long-term use. It operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for applications like electric motors or pumps where secure mounting is needed.

Weighing just 128g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6205-2ZNR/GJN
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 52 mm
  • Outer Dia Tolerance -0.013mm to 0
  • Width 15 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 57.9 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3147 lbf
  • Static Radial Load 1765 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 13000 rpm
  • Weight 128 g
  • Price（$） 4.72
Snap Ring Groove Ball Bearings 6205-2ZNR/GJN dimension drawing
Download DWG Download PDF

Features

How Does 6205-2ZNR/GJN Bearing Reduce Friction?

6205-2ZNR/GJN Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

The shielded design protects against contaminants, maintaining consistent performance in radial load applications.

With a dynamic radial load capacity of 3147 lbf, it handles demanding conditions while reducing wear.

Its snap ring outer ring design simplifies installation, making it a practical choice for various machinery.

Application

Industrial Uses of 6205-2ZNR/GJN Bearing
The 6205-2ZNR/GJN Bearing is commonly used in conveyor systems and electric motors, where its shielded design helps keep out dust and debris. Its snap ring feature ensures secure mounting, making it ideal for high-vibration environments.

What Makes 6205-2ZNR/GJN Bearing a Preferred Choice?
In automotive applications like alternators and water pumps, 6205-2ZNR/GJN Bearing offers reliable radial load support. The chrome steel construction provides durability, even under continuous use.

Perfect Fit for Automation: 6205-2ZNR/GJN Bearing
For robotic arms and automated machinery, 6205-2ZNR/GJN Bearing delivers smooth rotation with minimal maintenance. Its ABEC 1 tolerance ensures consistent performance in precision tasks.

Light-Duty vs Heavy-Duty: Best Uses for 6205-2ZNR/GJN Bearing
In light-duty applications like office printers, 6205-2ZNR/GJN Bearing operates quietly and efficiently. For heavier tasks like industrial fans, its robust design handles higher loads without compromising speed.
