Snap Ring Groove Ball Bearings 6204-ZNR/C3

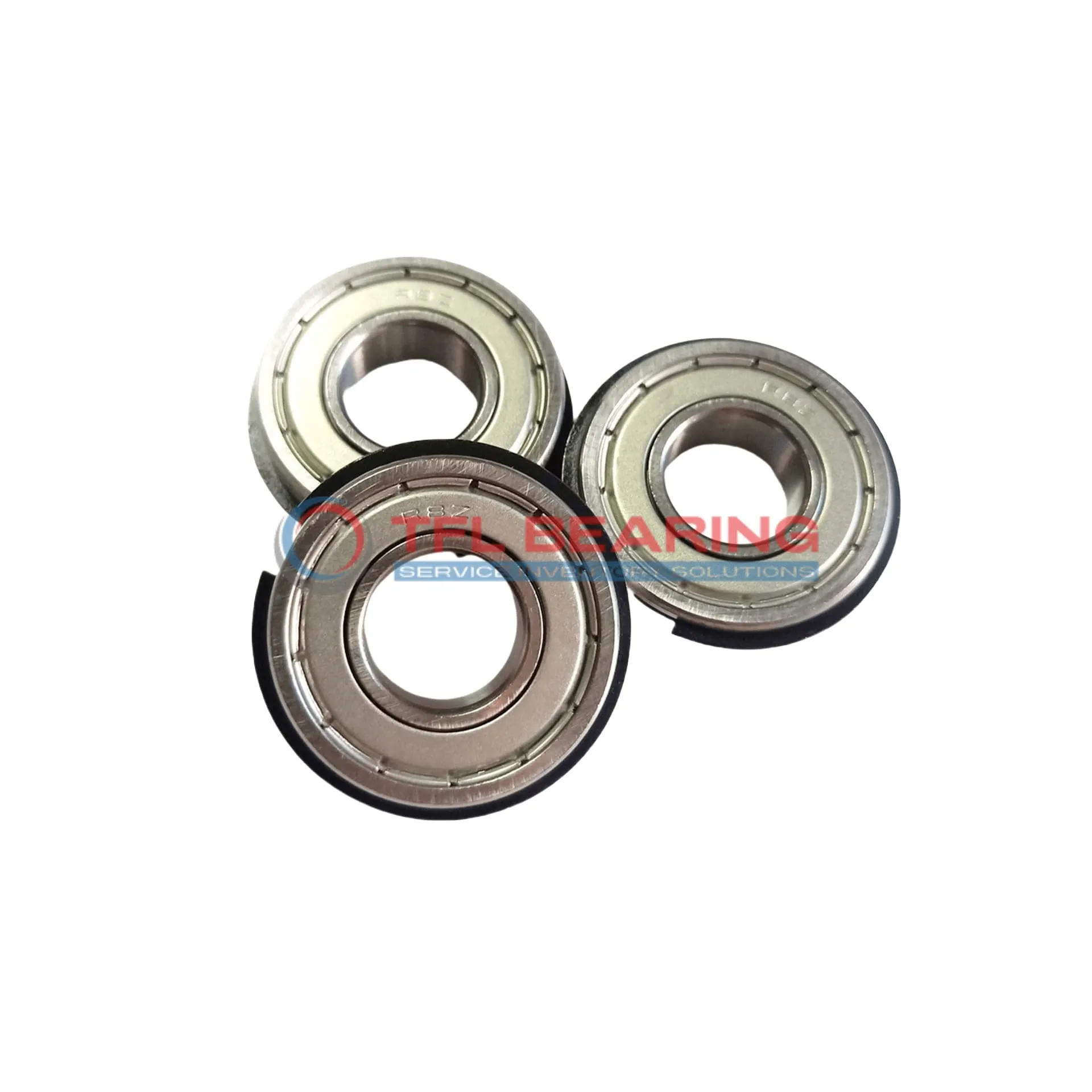

Snap Ring Groove Ball Bearings 6204-ZNR/C3

The 6204-ZNR/C3 is a shielded ball bearing with a 20mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It manages radial loads up to 2878 lbf and spins smoothly at speeds up to 15,000 RPM.

Its snap ring groove on the outer ring keeps it securely in place, while the C3 radial clearance allows for slight thermal expansion. The shielded design helps keep dirt out without needing frequent maintenance.

This bearing suits moderate-speed applications like electric motors or conveyor systems. It performs reliably in temperatures from -30°C to 120°C.

Weighing just 106g, it’s a lightweight yet durable choice. Compliant with RoHS and REACH standards, it’s interchangeable with SKF bearings for easy replacement.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 106 g
  • Price（$） 3.86
Snap Ring Groove Ball Bearings 6204-ZNR/C3 dimension drawing
Download DWG Download PDF

Features

Why Choose 6204-ZNR/C3 Bearing for Precision Tasks?

6204-ZNR/C3 Bearing features a snap ring groove for secure mounting, ensuring stability in radial load applications.
Its chrome steel construction provides durability and resistance to wear, even under high-speed conditions.

With a dynamic radial load capacity of 2878 lbf, it handles demanding tasks with ease.
The shielded design protects against contaminants, maintaining smooth operation over time.

Operating temperatures range from -30° to 120°C, making it versatile for various environments.
Its ABEC 1 tolerance ensures reliable performance in precision applications.

Application

Common Applications of 6204-ZNR/C3 Bearing
In industrial settings, 6204-ZNR/C3 Bearing is widely used in conveyor systems and electric motors, thanks to its shielded design that keeps contaminants out. The snap ring feature ensures secure mounting, reducing maintenance needs.

Where Is 6204-ZNR/C3 Bearing Used?
You’ll often find 6204-ZNR/C3 Bearing in automotive applications like alternators and pumps, where its radial load capacity and high-speed performance are key. The C3 clearance allows for thermal expansion, making it reliable in varying temperatures.

Built for Heavy-Duty Use: 6204-ZNR/C3 Bearing
6204-ZNR/C3 Bearing excels in machinery like gearboxes and compressors, handling radial loads with ease. Its chrome steel construction offers durability, while the snap ring simplifies installation in tight spaces.

Automotive vs Industrial: Applications of 6204-ZNR/C3 Bearing
In cars, 6204-ZNR/C3 Bearing supports smooth operation in components like fans and clutches. For factories, it’s a go-to for machinery requiring consistent performance under radial loads, such as pumps and agitators.

Perfect Fit for Automation: 6204-ZNR/C3 Bearing
6204-ZNR/C3 Bearing is ideal for robotic arms and automated systems, where precision and reliability matter. The shielded design protects against dust, ensuring long service life even in demanding environments.
