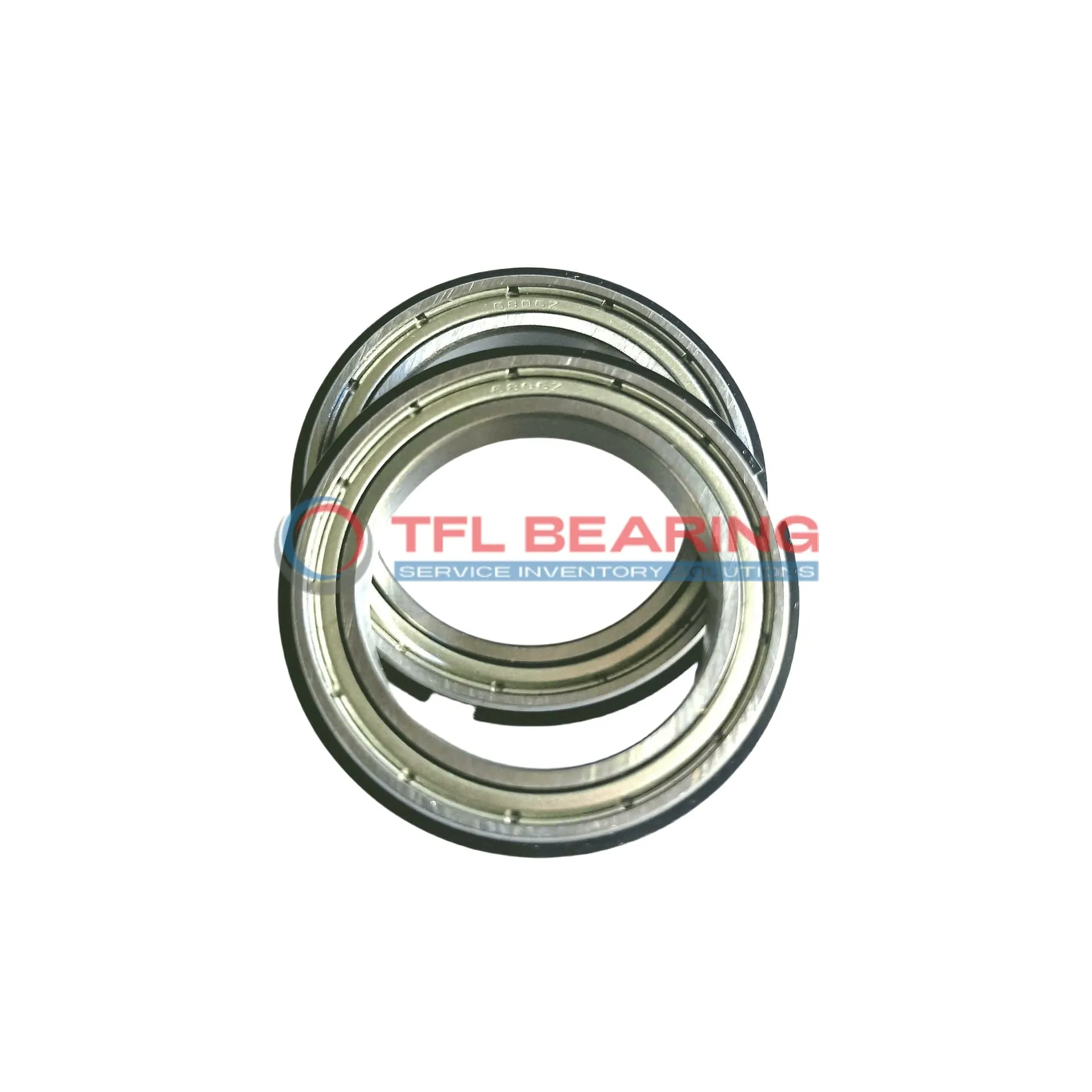

Snap Ring Groove Ball Bearings 6204-2ZNR/C3

Snap Ring Groove Ball Bearings 6204-2ZNR/C3

The 6204-2ZNR/C3 is a shielded ball bearing with a 20mm bore and 47mm outer diameter, made from sturdy chrome steel. It handles radial loads up to 2878 lbf and can spin at speeds up to 15000 RPM.

Its snap ring groove on the outer ring keeps it securely in place, while the shielded design protects against dust and debris. The C3 clearance allows for slight thermal expansion, making it reliable in varying temperatures.

This bearing is interchangeable with SKF models, offering a cost-effective alternative. It’s well-suited for electric motors or small machinery where stability and easy installation are key.

Weighing just 106g, it’s lightweight yet durable. Compliant with RoHS and REACH standards, it’s safe for various industrial applications.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6204-2ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 20 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 14 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 2878 lbf
  • Static Radial Load 1495 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 15000 rpm
  • Weight 106 g
  • Price（$） 3.86
Snap Ring Groove Ball Bearings 6204-2ZNR/C3 dimension drawing
Download DWG Download PDF

Features

How Does 6204-2ZNR/C3 Bearing Reduce Friction?

6204-2ZNR/C3 Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

The shielded design protects against contaminants while maintaining low resistance during rotation.

With a maximum speed of 15,000 rpm, it delivers efficient performance in radial load applications.

The snap ring groove provides secure mounting, enhancing stability and reducing vibration.

Application

Industrial Uses of 6204-2ZNR/C3 Bearing
6204-2ZNR/C3 Bearing is commonly used in conveyor systems, where its shielded design keeps contaminants out and ensures smooth operation. The snap ring feature provides secure mounting, making it ideal for high-vibration environments.

Where Is 6204-2ZNR/C3 Bearing Used?
In automotive applications, 6204-2ZNR/C3 Bearing fits well in electric motors and pumps, thanks to its radial load capacity and C3 clearance. The chrome steel construction offers durability under constant use.

Perfect Fit for Automation: 6204-2ZNR/C3 Bearing
For robotic arms and automated machinery, 6204-2ZNR/C3 Bearing delivers reliable performance with its shielded seals and snap ring stability. Its metric sizing ensures compatibility with standard components.

Light-Duty vs Heavy-Duty: Best Uses for 6204-2ZNR/C3 Bearing
In light-duty applications like printers, 6204-2ZNR/C3 Bearing provides quiet operation and long service life. For heavier tasks, its dynamic load rating handles radial stresses effectively.
