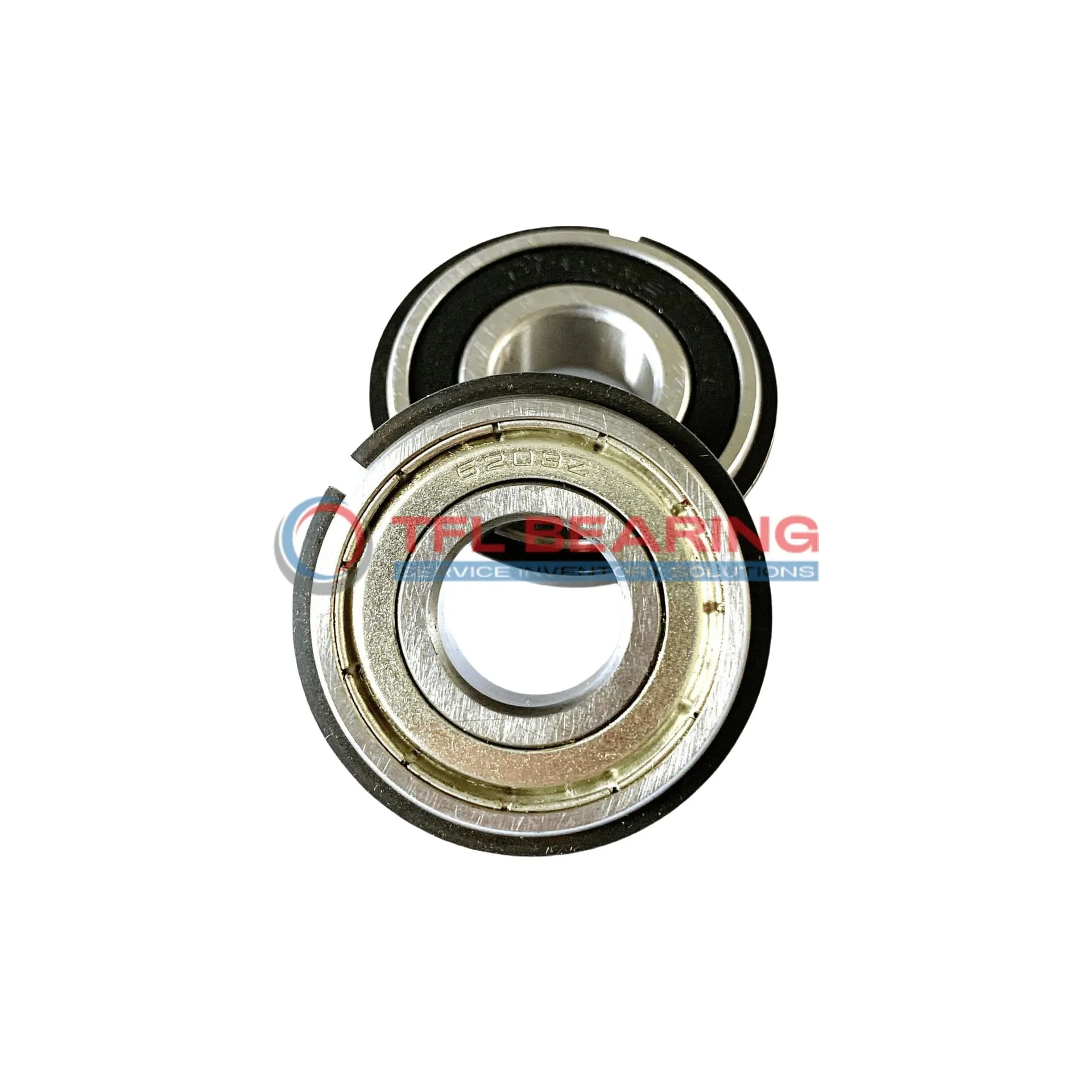

Snap Ring Groove Ball Bearings 6201-2ZNRJEM

Snap Ring Groove Ball Bearings 6201-2ZNRJEM

The 6201-2ZNRJEM is a compact snap ring groove ball bearing, measuring 12mm in bore and 32mm in outer diameter, with a width of 10mm. Made from durable chrome steel, it handles radial loads up to 1529 lbf and spins smoothly at speeds up to 22000 RPM.

Its shielded design keeps dirt out while the snap ring ensures a secure fit. The bearing operates well in temperatures from -30°C to 120°C, making it versatile for various conditions.

This model is interchangeable with SKF bearings, offering a reliable replacement option. Ideal for applications like electric motors or small machinery where radial loads and secure mounting are needed.

Weighing just 37g, it’s lightweight yet sturdy. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6201-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 12 mm
  • Bore Dia Tolerance -0.008mm to 0
  • Outer Dia 32 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 10 mm
  • Width Tolerance -0.120mm to 0
  • Outside Diameter Of Snap Ring 34.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 1529 lbf
  • Static Radial Load 686 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 22000 rpm
  • Weight 37 g
  • Price（$） 3.26
Snap Ring Groove Ball Bearings 6201-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6201-2ZNRJEM Bearing Reduce Friction?

6201-2ZNRJEM Bearing features chrome steel rings and balls, which help minimise friction during operation.
Its shielded design keeps contaminants out, ensuring smooth performance even at high speeds.
The snap ring on the outer ring provides secure fitting, reducing vibration and wear.
With a maximum speed of 22,000 rpm, it offers reliable performance for radial load applications.

Application

Industrial Uses of 6201-2ZNRJEM Bearing
6201-2ZNRJEM Bearing is commonly used in conveyor systems, where its shielded design helps keep out dust and debris. The snap ring feature ensures a secure fit, reducing maintenance needs in busy industrial settings.

Where Is 6201-2ZNRJEM Bearing Used?
You’ll often find 6201-2ZNRJEM Bearing in small electric motors, thanks to its compact size and reliable radial load handling. The chrome steel construction makes it durable for continuous operation in appliances like fans and power tools.

Built for Heavy-Duty Use: 6201-2ZNRJEM Bearing
6201-2ZNRJEM Bearing works well in automotive applications, such as alternators and pulleys, where its shielded seals protect against contaminants. The ABEC 1 tolerance ensures consistent performance without overcomplicating the design.

Light-Duty vs Heavy-Duty: Best Uses for 6201-2ZNRJEM Bearing
In light-duty scenarios like office printers, 6201-2ZNRJEM Bearing offers smooth rotation with minimal noise. For heavier tasks, such as agricultural equipment, its robust build handles radial loads effectively while resisting wear.
