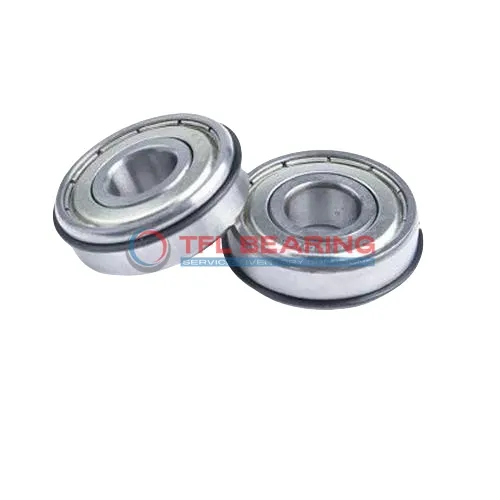

Snap Ring Groove Ball Bearings 6024-2ZNR/C3

Snap Ring Groove Ball Bearings 6024-2ZNR/C3

The 6024-2ZNR/C3 is a shielded snap ring groove ball bearing with a 120mm bore and 180mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 19873 lbf and operates smoothly at speeds up to 4800 RPM.

Its shielded design keeps dirt out while the snap ring groove ensures secure fitting, making installation straightforward. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. It’s well-suited for industrial machinery or pumps where radial loads and secure mounting are key.

Weighing 2100g, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6024-2ZNR/C3
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 120 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 180 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 28 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 192.9 mm
  • Width Of Snap Ring 3.1 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 19873 lbf
  • Static Radial Load 17985 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 4800 rpm
  • Weight 2100 g
  • Price（$） 81.2
Snap Ring Groove Ball Bearings 6024-2ZNR/C3 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6024-2ZNR/C3 Bearing

6024-2ZNR/C3 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 19873 lbf, ensuring reliable performance in various applications.

The shielded design of 6024-2ZNR/C3 Bearing protects against contaminants, extending its service life.
With a maximum speed of 4,800 rpm, it balances durability and efficiency for smooth operation.

6024-2ZNR/C3 Bearing’s snap ring feature ensures secure mounting, reducing the risk of misalignment.
Its C3 radial clearance allows for thermal expansion, making it suitable for fluctuating temperatures.

Application

Key Fields for 6024-2ZNR/C3 Bearing
6024-2ZNR/C3 Bearing is commonly used in industrial machinery, especially in applications where radial loads and moderate speeds are involved, such as conveyor systems and gearboxes. The shielded design helps keep contaminants out, extending its service life in dusty environments.

In automotive applications, 6024-2ZNR/C3 Bearing fits well in wheel hubs and transmission systems, thanks to its snap ring feature for secure mounting. Its C3 clearance allows for slight thermal expansion, making it suitable for varying operating temperatures.

For automation equipment, 6024-2ZNR/C3 Bearing provides reliable performance in robotic arms and assembly lines. The chrome steel construction ensures durability, while the snap ring simplifies installation and maintenance.

In household appliances like washing machines, 6024-2ZNR/C3 Bearing offers smooth operation and noise reduction. Its shielded seals help protect against moisture and dust, making it a practical choice for long-term use.
