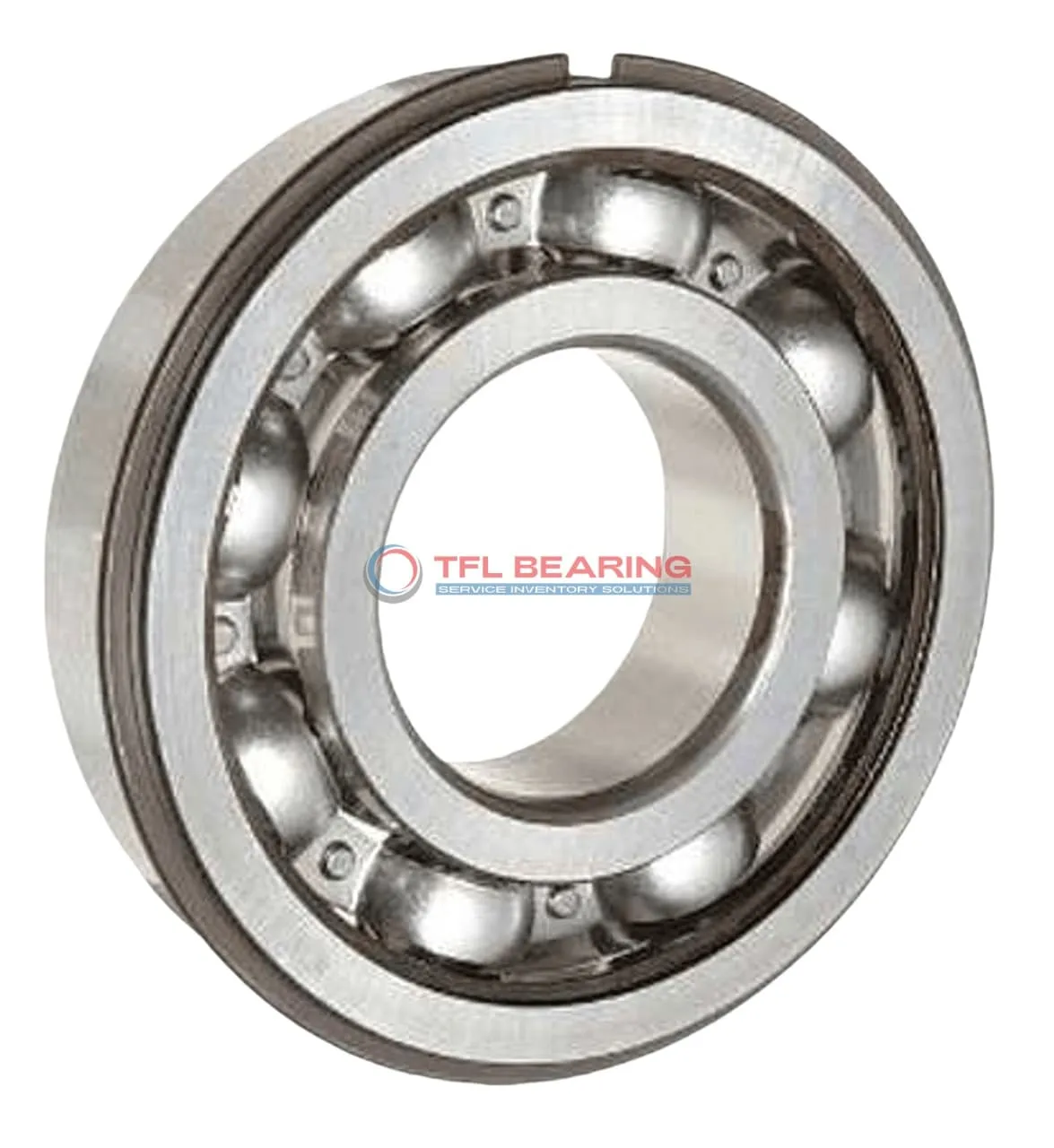

Snap Ring Groove Ball Bearings 6017 NR/C3VK504

Snap Ring Groove Ball Bearings 6017 NR/C3VK504

The 6017 NR/C3VK504 is a snap ring groove ball bearing with an 85mm bore and 130mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 11690 lbf and operates smoothly at speeds up to 6700 RPM.

Its open design and snap ring feature on the outer ring ensure secure fitting, while the C3 radial clearance allows for slight misalignment. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads and secure mounting are key.

Weighing 0.94kg, it’s a robust option for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017 NR/C3VK504
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.2mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No C3
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 11690 lbf
  • Static Radial Load 9667 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.94 kg

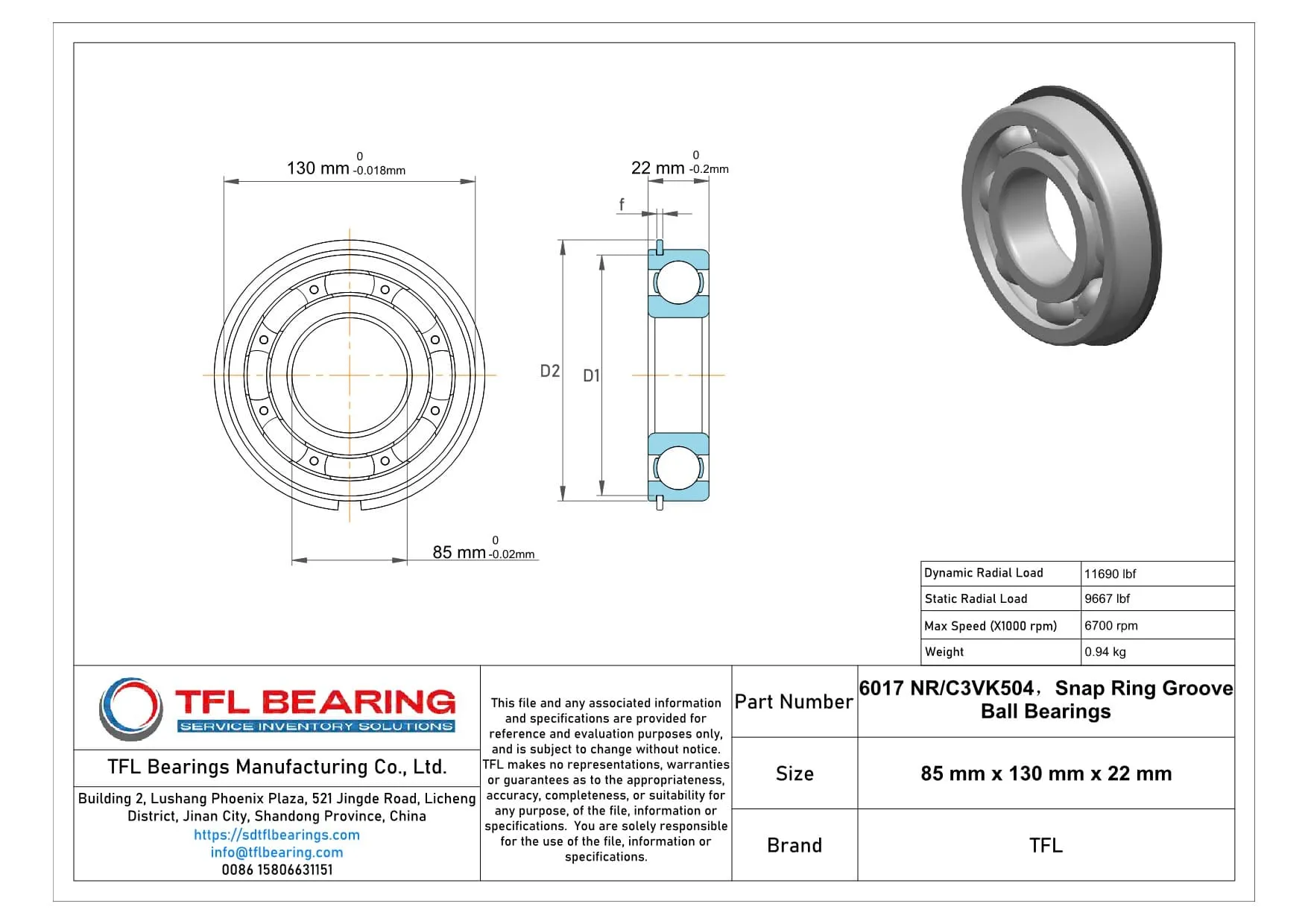

Snap Ring Groove Ball Bearings 6017 NR/C3VK504 dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017 NR/C3VK504 Bearing

6017 NR/C3VK504 Bearing is built with chrome steel rings and balls, offering strong radial load capacity up to 11690 lbf.

The snap ring groove on the outer ring ensures secure mounting, making it ideal for applications requiring precise positioning.

With a C3 radial clearance, it accommodates thermal expansion while maintaining smooth operation.

Its maximum speed of 6,700 rpm and temperature range of -30°C to 120°C make it versatile for various industrial uses.

Application

Common Applications of 6017 NR/C3VK504 Bearing
The 6017 NR/C3VK504 Bearing is widely used in industrial machinery, such as pumps and gearboxes, where its snap ring groove ensures secure mounting. Its C3 radial clearance allows for thermal expansion, making it suitable for high-temperature environments.

In automotive applications, 6017 NR/C3VK504 Bearing supports components like alternators and water pumps, providing reliable radial load handling. The chrome steel construction ensures durability even under constant vibration and stress.

For automation systems, 6017 NR/C3VK504 Bearing’s open design and snap ring feature simplify installation in robotic arms and conveyor belts. Its ABEC 1 tolerance class balances precision and cost-effectiveness for general machinery needs.

In household appliances like washing machines, 6017 NR/C3VK504 Bearing’s smooth operation reduces noise and wear. The metric sizing ensures compatibility with a variety of European and Asian appliance designs.
