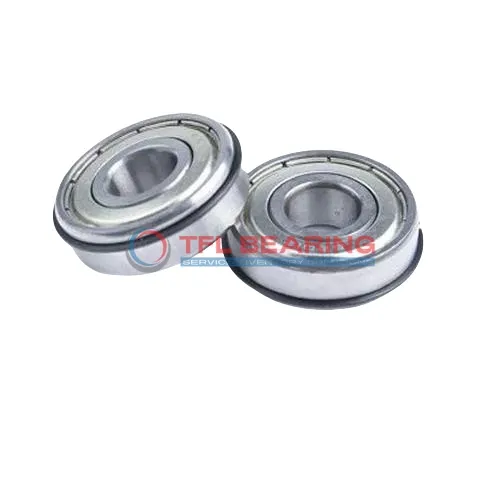

Snap Ring Groove Ball Bearings 6017-2ZNRJ/EM

Snap Ring Groove Ball Bearings 6017-2ZNRJ/EM

The 6017-2ZNRJ/EM is a single-row ball bearing with an 85mm bore and 130mm outer diameter, featuring a shielded design for added protection. Its snap ring groove ensures secure fitting, making installation straightforward.

Made from durable chrome steel, it handles radial loads up to 11128 lbf and operates smoothly at speeds up to 5000 RPM. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

Its shielded seals help keep contaminants out, extending service life with minimal maintenance. The snap ring design provides extra stability, ideal for applications where precise positioning is needed.

This model is interchangeable with SKF bearings, offering a practical replacement option. Suitable for use in industrial machinery, pumps, or gearboxes where radial loads and secure mounting are key. Weighing 899g, it balances strength and ease of handling. Compliant with RoHS and REACH standards.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6017-2ZNRJ/EM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 85 mm
  • Bore Dia Tolerance -0.02mm to 0
  • Outer Dia 130 mm
  • Outer Dia Tolerance -0.018mm to 0
  • Width 22 mm
  • Width Tolerance -0.200mm to 0
  • Outside Diameter Of Snap Ring 139.7 mm
  • Width Of Snap Ring 2.82 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 11128 lbf
  • Static Radial Load 9689 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 5000 rpm
  • Weight 899 g
  • Price（$） 34.4
Snap Ring Groove Ball Bearings 6017-2ZNRJ/EM dimension drawing
Download DWG Download PDF

Features

Performance Features of 6017-2ZNRJ/EM Bearing

6017-2ZNRJ/EM Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 11128 lbf, ensuring reliable performance in various applications.

The shielded design of 6017-2ZNRJ/EM Bearing protects against contaminants, enhancing its durability.
With a maximum speed of 5,000 rpm, it balances efficiency and longevity.

6017-2ZNRJ/EM Bearing features a snap ring groove for secure mounting, simplifying installation.
Its ABEC 1 tolerance ensures consistent performance in precision tasks.

The temperature range of -30° to 120°C makes 6017-2ZNRJ/EM Bearing suitable for diverse environments.
Its chrome steel cage maintains ball alignment, reducing wear over time.

Application

Industrial Uses of 6017-2ZNRJ/EM Bearing
6017-2ZNRJ/EM Bearing is commonly used in industrial machinery, especially where radial load support and easy mounting are needed, like conveyor systems and gearboxes. The shielded design helps keep contaminants out, extending its service life in dusty environments.

What Makes 6017-2ZNRJ/EM Bearing a Preferred Choice?
With its snap ring groove, 6017-2ZNRJ/EM Bearing simplifies installation in applications like electric motors and pumps, reducing assembly time. The chrome steel construction ensures durability even under moderate radial loads.

Perfect Fit for Automation: 6017-2ZNRJ/EM Bearing
In automated production lines, 6017-2ZNRJ/EM Bearing provides reliable performance for robotic arms and assembly systems. Its ABEC 1 tolerance offers sufficient precision for most industrial automation tasks.

Automotive vs Industrial: Applications of 6017-2ZNRJ/EM Bearing
While 6017-2ZNRJ/EM Bearing works well in automotive components like alternators, it’s equally suited for industrial fans due to its balanced load capacity. The temperature range of -30°C to 120°C covers most operating conditions.

Where Is 6017-2ZNRJ/EM Bearing Used?
You’ll find 6017-2ZNRJ/EM Bearing in appliances like washing machines, where its shielded design protects against detergent ingress. The 85mm bore size makes it compatible with many mid-sized rotating shafts.
