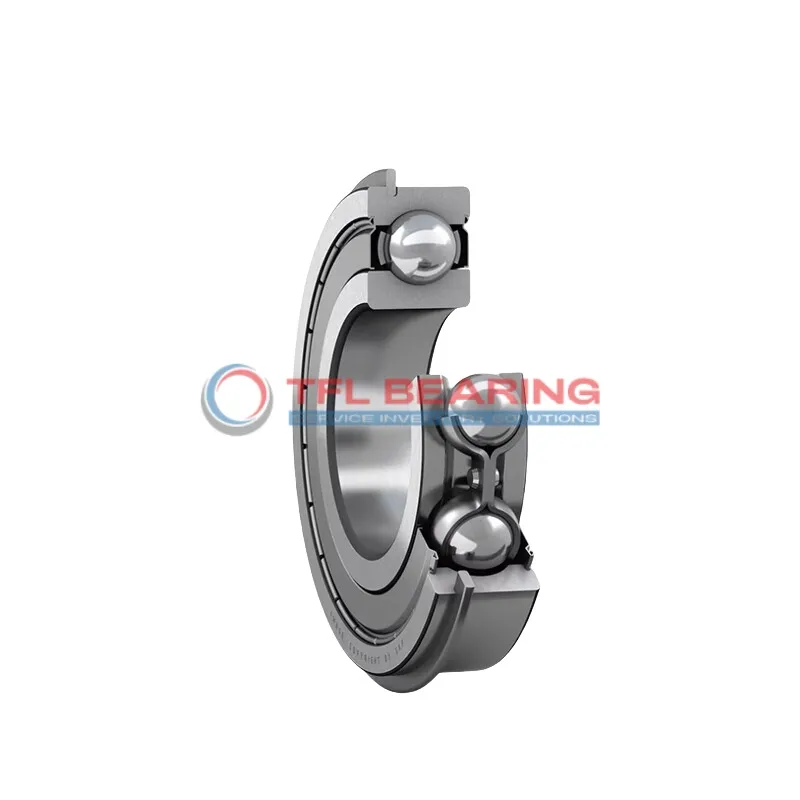

Snap Ring Groove Ball Bearings 6013-2ZNRJEM

Snap Ring Groove Ball Bearings 6013-2ZNRJEM

The 6013-2ZNRJEM is a shielded snap ring groove ball bearing with a 65mm bore and 100mm outer diameter, crafted from durable chrome steel. It handles radial loads up to 6857 lbf and operates smoothly at speeds up to 6700 RPM.

Its shielded design keeps dirt out while the snap ring ensures secure fitting, making it easy to install in tight spaces. The bearing performs reliably in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, offering a practical replacement option. Ideal for applications like electric motors or pumps where secure mounting and radial load support are needed.

Weighing 430g, it’s a sturdy choice for industrial use. Compliant with RoHS and REACH standards for safe and eco-friendly operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6013-2ZNRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 65 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 100 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 18 mm
  • Width Tolerance -0.150mm to 0
  • Outside Diameter Of Snap Ring 106.5 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6857 lbf
  • Static Radial Load 5665 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 430 g
  • Price（$） 17.52
Snap Ring Groove Ball Bearings 6013-2ZNRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6013-2ZNRJEM Bearing Reduce Friction?

6013-2ZNRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.

The shielded design protects against contaminants, maintaining consistent performance over time.

With a dynamic radial load capacity of 6857 lbf, it handles demanding radial loads efficiently.

Its snap ring outer ring design simplifies installation, making it a practical choice for various applications.

Application

Industrial Uses of 6013-2ZNRJEM Bearing
6013-2ZNRJEM Bearing is commonly used in industrial machinery, especially in conveyor systems and electric motors, where its shielded design helps keep contaminants out. The snap ring feature ensures secure mounting, making it ideal for applications requiring easy installation and removal.

Where Is 6013-2ZNRJEM Bearing Used?
In automotive applications, 6013-2ZNRJEM Bearing fits well in gearboxes and wheel hubs, thanks to its radial load capacity and durability. The chrome steel construction also provides reliable performance under varying temperatures and loads.

Built for Heavy-Duty Use: 6013-2ZNRJEM Bearing
For automation equipment like robotic arms, 6013-2ZNRJEM Bearing offers smooth operation due to its precise tolerances. The shielded seals and snap ring design make it a low-maintenance option for high-speed environments.

Light-Duty vs Heavy-Duty: Best Uses for 6013-2ZNRJEM Bearing
In consumer electronics such as printers, 6013-2ZNRJEM Bearing ensures quiet and efficient performance. Its compact size and shielded design make it suitable for devices where space and cleanliness are important.
