Snap Ring Groove Ball Bearings 6011NRJEM

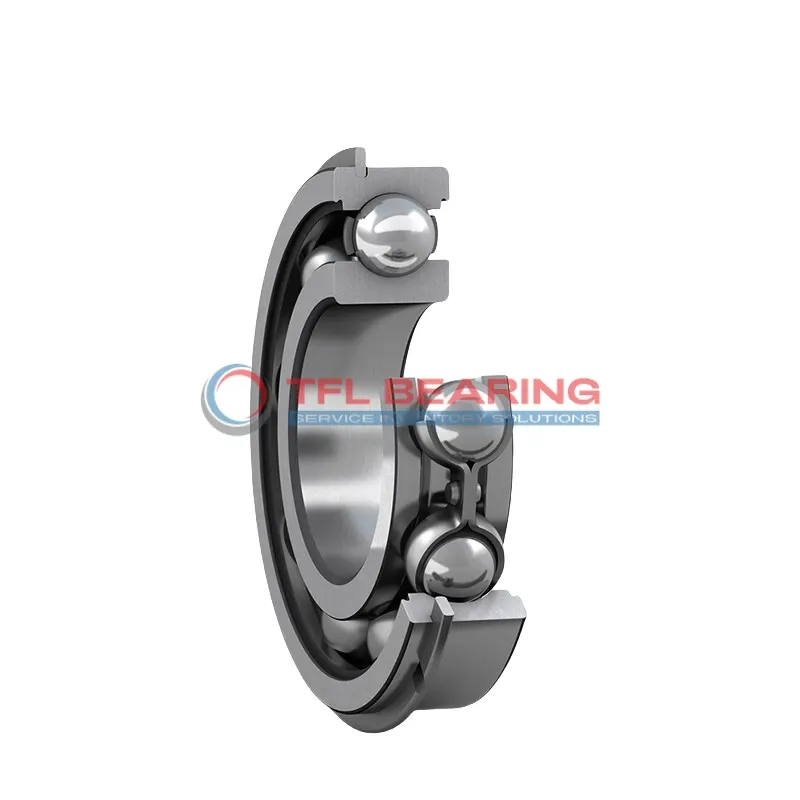

Snap Ring Groove Ball Bearings 6011NRJEM

The 6011NRJEM is a snap ring groove ball bearing with a 55mm bore and 90mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 6362 lbf and operates smoothly at speeds up to 7500 RPM.

Its snap ring design keeps the bearing securely in place, while the open seal allows for easy maintenance. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads are common.

With a compact width of 18mm, it fits neatly into tight spaces while offering robust performance. Compliant with RoHS and REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6011NRJEM
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 55 mm
  • Bore Dia Tolerance -0.015 mm to 0
  • Outer Dia 90 mm
  • Outer Dia Tolerance -0.015 mm to 0
  • Width 18 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 86.79 mm
  • Width Of Snap Ring 2.46 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 6362 lbf
  • Static Radial Load 4766 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 7500 rpm
  • Price（$） 13.16

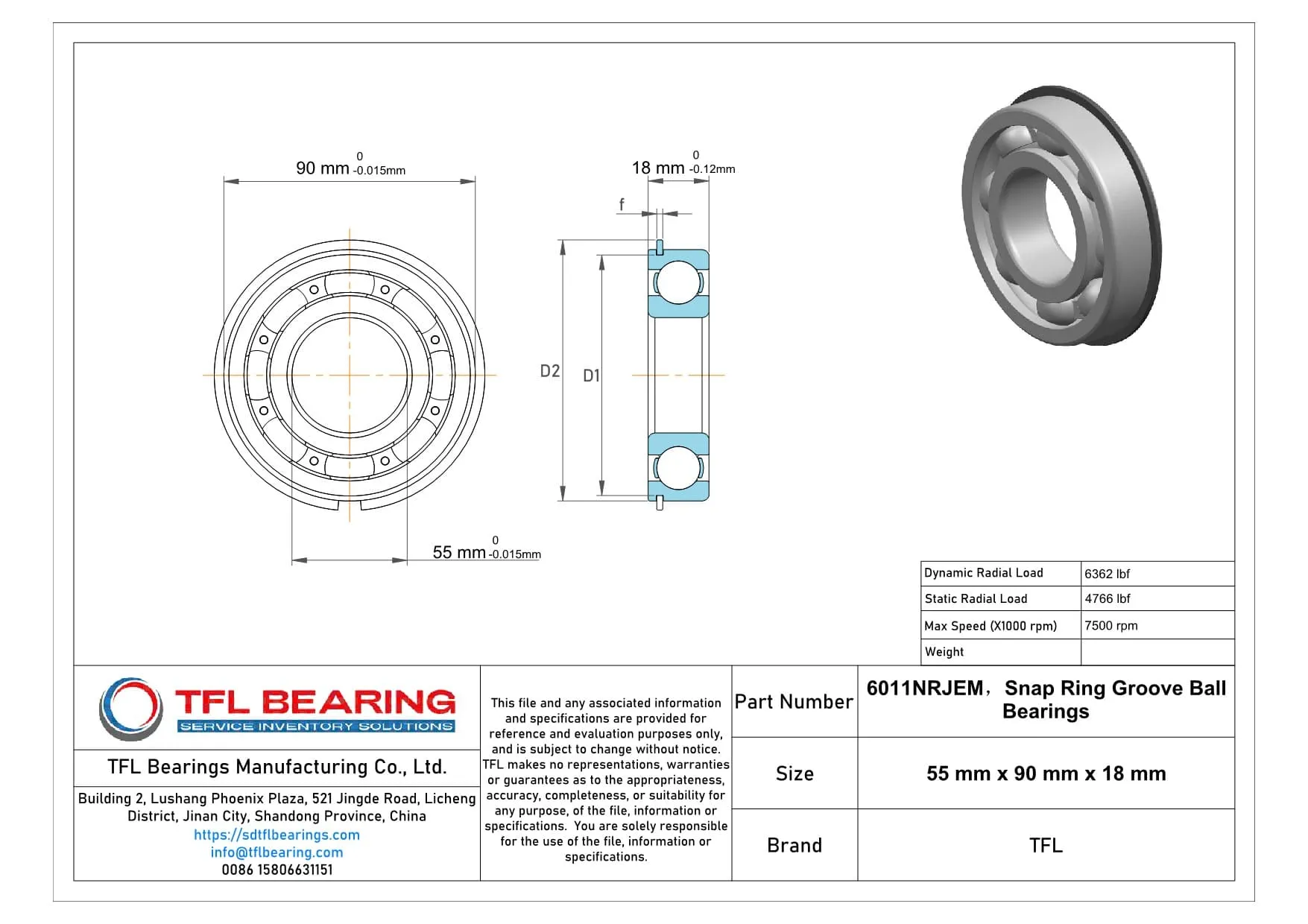

Snap Ring Groove Ball Bearings 6011NRJEM dimension drawing
Download DWG Download PDF

Features

How Does 6011NRJEM Bearing Reduce Friction?

6011NRJEM Bearing features chrome steel rings and balls, ensuring smooth operation with minimal friction.
Its single-row design and snap ring outer ring provide stability, reducing wear during radial load applications.
The ABEC 1 tolerance class ensures consistent performance, making it suitable for precision tasks.
With a dynamic radial load capacity of 6362 lbf, it handles demanding conditions efficiently.

Application

Industrial Uses of 6011NRJEM Bearing
6011NRJEM Bearing is commonly used in industrial machinery like conveyor systems and pumps, where its snap ring feature ensures secure mounting. The open design allows for easy lubrication, extending service life in demanding conditions.

Where Is 6011NRJEM Bearing Used?
You’ll often find 6011NRJEM Bearing in automotive applications such as gearboxes and electric motors, thanks to its reliable radial load capacity. The chrome steel construction handles high speeds and temperatures with ease.

Built for Heavy-Duty Use: 6011NRJEM Bearing
6011NRJEM Bearing excels in robotics and automation, particularly in robotic arms and assembly lines. Its snap ring design simplifies installation, making it a favourite for maintenance teams.

Light-Duty vs Heavy-Duty: Best Uses for 6011NRJEM Bearing
For light-duty tasks like office printers, 6011NRJEM Bearing offers smooth operation with minimal noise. In heavy-duty scenarios like industrial fans, its robust build ensures long-term reliability.

Perfect Fit for Automation: 6011NRJEM Bearing
6011NRJEM Bearing is ideal for 3D printers and CNC machines, where precision and durability are key. The ABEC 1 tolerance ensures consistent performance in high-precision environments.
