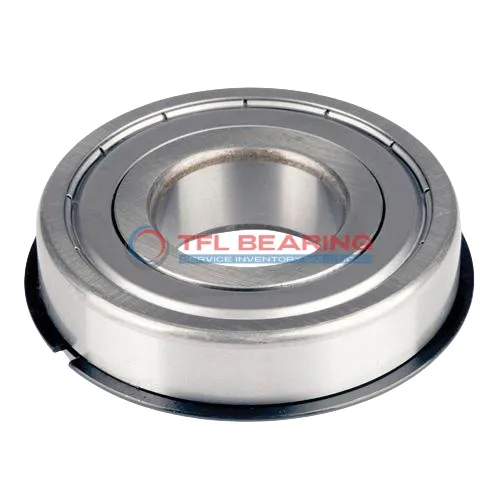

Snap Ring Groove Ball Bearings 6011-ZNRJEM (C3)

The 6011-ZNRJEM (C3) is a shielded, single-row ball bearing with a 55mm bore and 90mm outer diameter, designed for radial loads. It handles dynamic loads up to 6362 lbf and operates smoothly at speeds up to 7500 RPM.

Made from durable chrome steel, it features a snap ring groove on the outer ring for secure mounting. The C3 radial clearance allows for slight thermal expansion, making it suitable for varying temperatures.

This bearing is interchangeable with SKF models, offering a reliable replacement option. Ideal for industrial machinery or automotive applications where radial load support is needed.

Weighing 373g, it’s robust yet manageable. Compliant with RoHS and REACH standards, it’s safe for use in temperatures ranging from -30°C to 120°C.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 6011-ZNRJEM (C3)
Brand TFL
Interchangeable SKF
Bore Dia 55 mm
Bore Dia Tolerance -0.015mm to 0
Outer Dia 90 mm
Outer Dia Tolerance -0.015mm to 0
Width 18 mm
Width Tolerance -0.150mm to 0
Outside Diameter Of Snap Ring 96.5 mm
Width Of Snap Ring 2.46 mm
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Shielded
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Ring Material Chrome Steel
Ball Material Chrome Steel
Cage Material Chrome Steel
Dynamic Radial Load 6362 lbf
Static Radial Load 4766 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH Compliant
Max Speed 7500 rpm
Weight 373 g

Snap Ring Groove Ball Bearings 6011-ZNRJEM (C3) dimension drawing

Download DWG Download PDF

Features

Performance Features of 6011-ZNRJEM (C3) Bearing

6011-ZNRJEM (C3) Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 6362 lbf, ensuring reliable performance in various applications.

The shielded design of 6011-ZNRJEM (C3) Bearing protects against contaminants, enhancing durability.
With a snap ring fitted on the outer ring, it provides secure mounting and easy installation.

6011-ZNRJEM (C3) Bearing operates smoothly at speeds up to 7,500 rpm, balancing efficiency and longevity.
Its C3 radial clearance ensures optimal performance under varying thermal conditions.

The temperature range of -30° to 120 °C makes 6011-ZNRJEM (C3) Bearing suitable for diverse environments.
Its chrome steel cage maintains ball alignment, reducing wear and extending service life.

Application

Industrial Uses of 6011-ZNRJEM (C3) Bearing
This bearing is commonly used in industrial machinery like pumps and gearboxes, where its shielded design helps keep contaminants out. The snap ring feature makes installation and positioning easier in tight spaces.

How Does 6011-ZNRJEM (C3) Bearing Improve Performance?
In automotive applications, it supports smooth rotation in components like alternators and transmissions. The C3 clearance allows for better thermal expansion handling during high-speed operation.

Built for Heavy-Duty Use: 6011-ZNRJEM (C3) Bearing
You’ll find this bearing in conveyor systems where radial loads are common. Its chrome steel construction provides good wear resistance for continuous operation.

Medical vs Industrial: Where 6011-ZNRJEM (C3) Bearing Excels
While suitable for industrial equipment, this bearing isn’t typically used in medical devices due to its size. It’s more at home in larger machinery like electric motors.

Perfect Fit for Automation: 6011-ZNRJEM (C3) Bearing
In automated production lines, this bearing works well in rotary tables and indexing mechanisms. The snap ring helps maintain precise alignment during repetitive movements.
