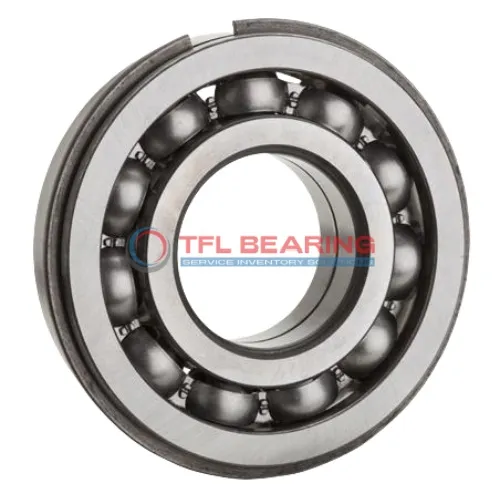

Snap Ring Groove Ball Bearings 6007NRJ

Snap Ring Groove Ball Bearings 6007NRJ

The 6007NRJ is a snap ring groove ball bearing with a 35mm bore and 62mm outer diameter, measuring 14mm in width. Made from durable chrome steel, it handles radial loads up to 3574 lbf and spins smoothly at speeds up to 11000 RPM.

Its single-row design with a snap ring on the outer ring ensures secure fitting, while the open seal allows for easy maintenance. The bearing operates well in temperatures from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Ideal for applications like electric motors or pumps where radial loads are common.

Compliant with RoHS and REACH standards, it’s a reliable and safe option for various industrial uses. The snap ring feature adds extra stability during operation.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6007NRJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 35 mm
  • Bore Dia Tolerance -0.012 mm to 0
  • Outer Dia 62 mm
  • Outer Dia Tolerance -0.013 mm to 0
  • Width 14 mm
  • Width Tolerance -0.12 mm to 0
  • Outside Diameter Of Snap Ring 67.7 mm
  • Width Of Snap Ring 1.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 3574 lbf
  • Static Radial Load 2316 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 11000 rpm
  • Price（$） 7.2
Snap Ring Groove Ball Bearings 6007NRJ dimension drawing
Download DWG Download PDF

Features

Why Choose 6007NRJ Bearing for Precision Tasks?

6007NRJ Bearing features a snap ring groove design, ensuring secure positioning in radial applications.
Its chrome steel construction provides durability and resistance to wear under dynamic loads.

With a dynamic radial load capacity of 3574 lbf, it handles demanding tasks with ease.
The ABEC 1 tolerance class ensures consistent performance in precision applications.

6007NRJ Bearing operates smoothly at speeds up to 11,000 rpm, balancing speed and reliability.
Its open design allows for easy lubrication, enhancing long-term performance.

The snap ring fitted outer ring simplifies installation, reducing setup time.
6007NRJ Bearing works in temperatures from -30° to 120°C, adapting to various environments.

Application

Industrial Uses of 6007NRJ Bearing
The 6007NRJ Bearing is commonly used in conveyor systems, where its snap ring groove ensures secure mounting during continuous operation. Its open design allows for easy lubrication, extending service life in dusty environments.

In automotive applications, 6007NRJ Bearing fits well in electric motor assemblies, providing smooth rotation under radial loads. The chrome steel construction offers good wear resistance for long-term reliability.

For automation equipment, 6007NRJ Bearing’s ABEC 1 precision makes it suitable for robotic arms requiring consistent performance. The snap ring feature simplifies installation in compact spaces.

Where Is 6007NRJ Bearing Used?
You’ll often find 6007NRJ Bearing in industrial fans, where its dynamic load capacity handles constant rotation demands. The metric sizing ensures compatibility with European machinery standards.

In household appliances like washing machines, 6007NRJ Bearing supports drum rotations quietly and efficiently. Its temperature range covers typical domestic usage conditions.

Built for Heavy-Duty Use: 6007NRJ Bearing
The 6007NRJ Bearing performs reliably in agricultural machinery, enduring vibrations and uneven loads. Its chrome steel cage maintains structural integrity in tough working conditions.

For packaging equipment, 6007NRJ Bearing’s snap ring design prevents axial movement during high-speed operations. The ISO P0 tolerance meets general industrial precision requirements.
