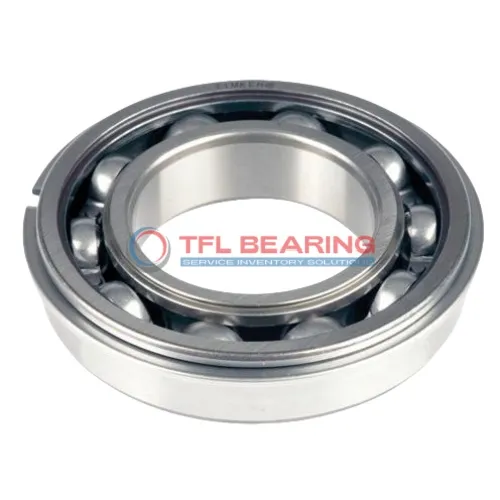

Snap Ring Groove Ball Bearings 6005 NR

Snap Ring Groove Ball Bearings 6005 NR

The 6005 NR is a snap ring groove ball bearing with a 25mm bore and 47mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 2675 lbf and spins smoothly at speeds up to 20,000 RPM.

Its snap ring design keeps it securely in place, while the stainless steel cage ensures durability. The open seal allows for easy maintenance and lubrication.

This bearing is ideal for applications like electric motors or small machinery where secure mounting is needed. It works in temperatures from -30°C to 120°C.

Weighing just 0.08kg, it’s lightweight yet robust. The bearing is interchangeable with SKF models, making it a reliable replacement option. Compliant with REACH standards for safe use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 6005 NR
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 25 mm
  • Bore Dia Tolerance -0.01mm to 0
  • Outer Dia 47 mm
  • Outer Dia Tolerance -0.011mm to 0
  • Width 12 mm
  • Width Tolerance -0.12mm to 0
  • Outside Diameter Of Snap Ring 52.7 mm
  • Width Of Snap Ring 1.12 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Open
  • Locating Feature Bearing Outer Ring Snap Ring (fitted)
  • Tolerance Class P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Stainless Steel
  • Dynamic Radial Load 2675 lbf
  • Static Radial Load 1472 lbf
  • Temperature Range -30° to 120 °C
  • REACH Compliant
  • Max Speed 20000 rpm
  • Weight 0.08 kg
  • Price（$） 5.52
Snap Ring Groove Ball Bearings 6005 NR dimension drawing
Download DWG Download PDF

Features

Performance Features of 6005 NR Bearing

6005 NR Bearing features a snap ring groove on its outer ring, ensuring secure mounting in various applications.
The chrome steel construction provides durability and resistance to wear, even under radial loads.

With a dynamic radial load capacity of 2675 lbf, it handles demanding conditions reliably.
The stainless steel cage maintains ball alignment, enhancing smooth operation and longevity.

Its maximum speed of 20,000 rpm makes it suitable for high-speed applications.
The temperature range of -30° to 120°C ensures performance in diverse environments.

The open design simplifies lubrication, reducing maintenance needs.
6005 NR Bearing’s precise dimensions and tolerances ensure consistent performance.

Application

Industrial Uses of 6005 NR Bearing
The 6005 NR Bearing is commonly used in conveyor systems and small electric motors, where its snap ring feature ensures secure placement. Its open design allows for easy lubrication, making it suitable for continuous operation in factories.

Where Is 6005 NR Bearing Used?
You’ll often find the 6005 NR Bearing in automotive applications like alternators and water pumps, thanks to its reliable radial load handling. The chrome steel construction ensures longevity even in high-temperature environments.

Built for Heavy-Duty Use: 6005 NR Bearing
This bearing excels in industrial fans and blowers, where its stainless steel cage reduces wear over time. The metric sizing makes it a versatile choice for various machinery across different regions.

Automotive vs Industrial: Applications of 6005 NR Bearing
In cars, the 6005 NR Bearing supports smooth rotation in gearbox components, while in factories, it’s ideal for light machinery due to its compact size. The snap ring design adds extra stability in both settings.

Perfect Fit for Automation: 6005 NR Bearing
The 6005 NR Bearing works well in robotic arms and small automation equipment, where precision is key. Its high-speed capability ensures consistent performance in repetitive tasks.
