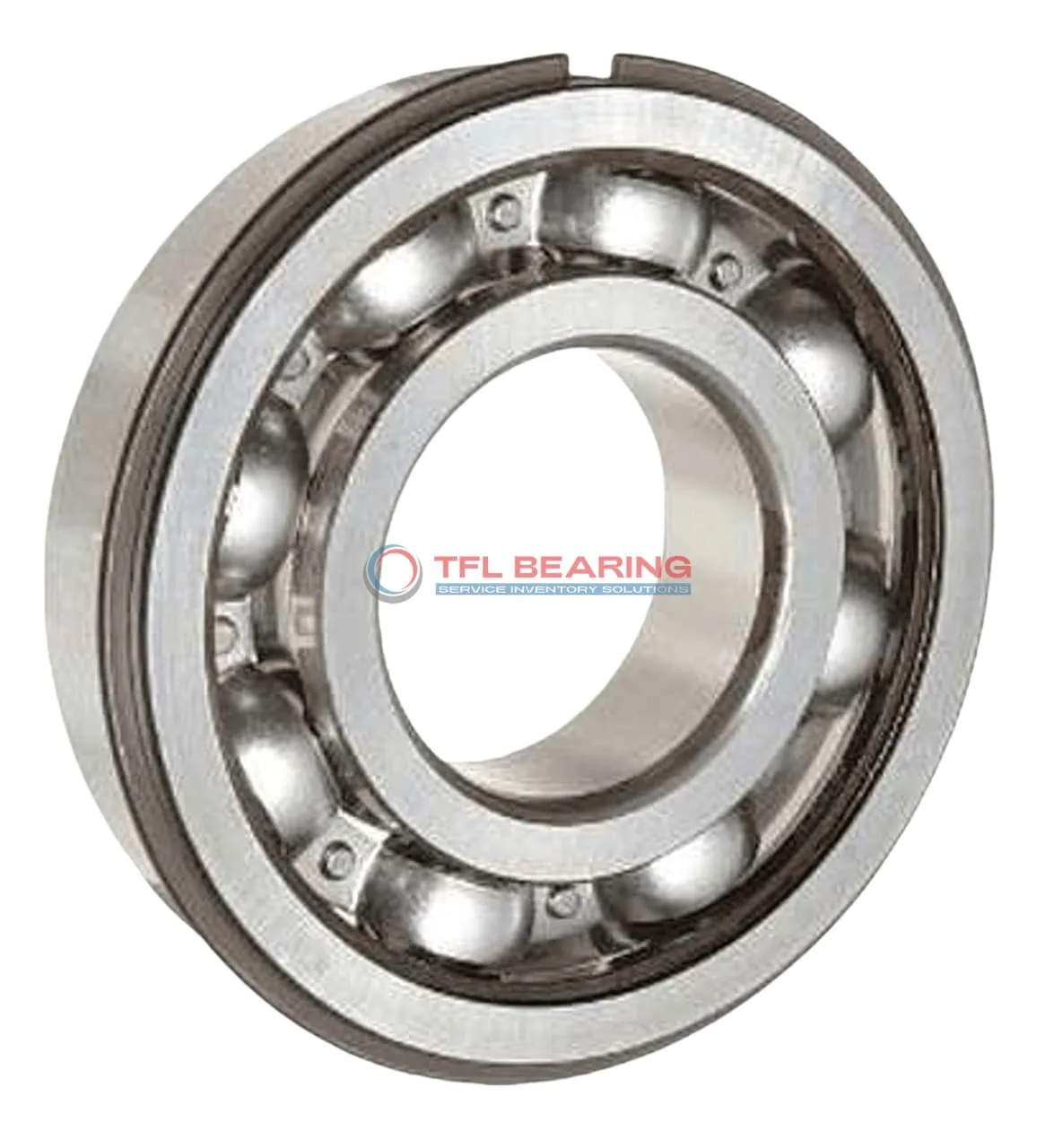

Snap Ring Groove Ball Bearings 310 NAR/C3LVU067

The 310 NAR/C3LVU067 is a snap ring groove ball bearing with a 50mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 14478 lbf and operates smoothly at speeds up to 7000 RPM.

Its open design and snap ring feature on the outer ring ensure easy installation and secure positioning. The C3 radial clearance allows for slight misalignment or thermal expansion.

This bearing works reliably in temperatures from -30°C to 120°C, making it suitable for industrial machinery or automotive applications. It’s interchangeable with SKF bearings for convenient replacements.

Weighing 1.15kg, it’s robust yet manageable for its size. Compliant with RoHS and REACH standards, it’s a safe choice for various environments.

Get A Free Quote

Description

Features

Application

Q&A

Product Parameters

Part Number 310 NAR/C3LVU067
Brand TFL
Interchangeable SKF
Bore Dia 50 mm
Bore Dia Tolerance -0.012mm to 0
Outer Dia 110 mm
Outer Dia Tolerance -0.015mm to 0
Width 27 mm
Width Tolerance -0.12mm to 0
System of Measurement Metric
For Load Direction Radial
Construction Single Row
Bearing Type Ball
Seal Type Open
Locating Feature Bearing Outer Ring Snap Ring (fitted)
Tolerance Class ABEC 1 | ISO P0
Radial Clearance Trade No C3
Ring Material Chrome Steel
Ball Material Chrome Steel
Dynamic Radial Load 14478 lbf
Static Radial Load 11690 lbf
Temperature Range -30°to 120 °C
ROHS Compliant
REACH 1.15 kg
Max Speed 7000 rpm
Weight 1.15 kg

Features

Performance Features of 310 NAR/C3LVU067 Bearing

310 NAR/C3LVU067 Bearing is built with chrome steel rings and balls, offering strong resistance to radial loads.
Its dynamic radial load capacity reaches 14478 lbf, ensuring reliable performance in various applications.
The open design and snap ring feature simplify installation, making it user-friendly.
With a maximum speed of 7,000 rpm, it balances durability and efficiency.

How Does 310 NAR/C3LVU067 Bearing Reduce Friction?

310 NAR/C3LVU067 Bearing’s precision-engineered raceway design minimises friction for smoother operation.
The chrome steel construction ensures durability while maintaining low noise levels.
Its C3 radial clearance allows for better performance under varying thermal conditions.
This makes it suitable for applications where consistent performance is key.

Built for Reliability: 310 NAR/C3LVU067 Bearing

310 NAR/C3LVU067 Bearing is designed to withstand heavy radial loads up to 14478 lbf.
The chrome steel materials resist wear, extending the bearing’s service life.
Its snap ring feature ensures secure fitting, reducing the risk of misalignment.
Operating temperatures range from -30° to 120°C, making it versatile for different environments.

Radial vs Thrust Bearings: The Edge of 310 NAR/C3LVU067 Bearing

310 NAR/C3LVU067 Bearing excels in radial load applications with its robust chrome steel construction.
The snap ring groove provides added stability, preventing outer ring movement.
Its ABEC 1 tolerance ensures consistent performance without the need for high precision.
This makes it a cost-effective choice for general industrial use.

Application

Industrial Uses of 310 NAR/C3LVU067 Bearing
This bearing is commonly used in industrial machinery like pumps and gearboxes, where its snap ring groove ensures secure outer ring positioning. The C3 radial clearance allows for thermal expansion in demanding environments.

What Makes 310 NAR/C3LVU067 Bearing a Preferred Choice?
Its chrome steel construction provides reliable performance in automotive applications such as wheel hubs and transmissions. The open design simplifies lubrication maintenance for long service life.

Built for Heavy-Duty Use: 310 NAR/C3LVU067 Bearing
You’ll find this model in construction equipment where its 27mm width handles substantial radial loads. The ABEC 1 tolerance balances cost and performance for general machinery applications.

Automotive vs Industrial: Applications of 310 NAR/C3LVU067 Bearing
In vehicles, it supports rotating shafts while the snap ring prevents axial movement. Industrial settings benefit from its 110mm outer diameter for stable operation in conveyor systems.

Where Is 310 NAR/C3LVU067 Bearing Used?
This bearing works well in agricultural machinery like harvesters due to its 50mm bore size handling moderate speeds. The temperature range suits both indoor and outdoor equipment.
