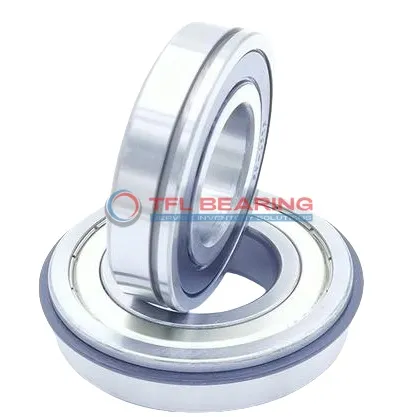

Snap Ring Groove Ball Bearings 212-ZNBRJ

Snap Ring Groove Ball Bearings 212-ZNBRJ

The 212-ZNBRJ is a shielded snap ring groove ball bearing with a 60mm bore and 110mm outer diameter, crafted from sturdy chrome steel. It handles radial loads up to 12612 lbf and operates smoothly at speeds up to 6700 RPM.

Its snap ring groove design ensures secure mounting, while the shielded construction keeps contaminants out. The bearing performs reliably in temperatures ranging from -30°C to 120°C.

This model is interchangeable with SKF bearings, making it a practical choice for replacements. Suitable for applications like electric motors or pumps where radial loads and secure positioning are key.

Weighing 0.85kg, it offers a robust build for its size. Compliant with RoHS and REACH standards for safe and eco-friendly use.

Get A Free Quote
    Description Features Application Q&A Featured Products Our Process

Product Parameters

  • Part Number 212-ZNBRJ
  • Brand TFL
  • Interchangeable SKF
  • Bore Dia 60 mm
  • Bore Dia Tolerance -0.015mm to 0
  • Outer Dia 110 mm
  • Outer Dia Tolerance -0.015mm to 0
  • Width 22 mm
  • Width Tolerance -0.15mm to 0
  • Outside Diameter Of Snap Ring 110 mm
  • Width Of Snap Ring 2.7 mm
  • System of Measurement Metric
  • For Load Direction Radial
  • Construction Single Row
  • Bearing Type Ball
  • Seal Type Shielded
  • Locating Feature Bearing Outer Ring Snap Ring Groove
  • Tolerance Class ABEC 1 | ISO P0
  • Radial Clearance Trade No CN
  • Ring Material Chrome Steel
  • Ball Material Chrome Steel
  • Cage Material Chrome Steel
  • Dynamic Radial Load 12612 lbf
  • Static Radial Load 11240 lbf
  • Temperature Range -30°to 120 °C
  • ROHS Compliant
  • REACH Compliant
  • Max Speed 6700 rpm
  • Weight 0.85 kg
  • Price（$） 22.8
Snap Ring Groove Ball Bearings 212-ZNBRJ dimension drawing
Download DWG Download PDF

Features

Why Choose 212-ZNBRJ Bearing for Precision Tasks?

212-ZNBRJ Bearing features a snap ring groove design, ensuring secure positioning in radial applications.
Its chrome steel construction provides durability and resistance to wear under heavy loads.
With a dynamic radial load capacity of 12612 lbf, it delivers reliable performance in demanding conditions.
The shielded design helps protect against contaminants, extending its service life.
Operating at speeds up to 6,700 rpm, it balances efficiency and precision.

Application

Industrial Uses of 212-ZNBRJ Bearing
212-ZNBRJ Bearing is commonly used in conveyor systems and industrial fans, where its shielded design helps keep out dust and debris. The snap ring groove ensures easy installation and secure positioning in housings.

In automotive applications, 212-ZNBRJ Bearing fits well in gearboxes and wheel hubs, providing reliable radial load support. Its chrome steel construction offers durability under constant use and varying temperatures.

For automation equipment, 212-ZNBRJ Bearing works smoothly in robotic arms and assembly line mechanisms. The ABEC 1 tolerance ensures consistent performance without requiring frequent adjustments.

Around the home, 212-ZNBRJ Bearing can be found in power tools like drills and sanders. Its balanced design reduces vibration, making tools more comfortable to use for extended periods.
